ICON 10-Up Toyota 4Runner/FJ Cruiser 0-3.5″ Lift Stage 3 Suspension System Billet UCA
$4,672.19
Описание

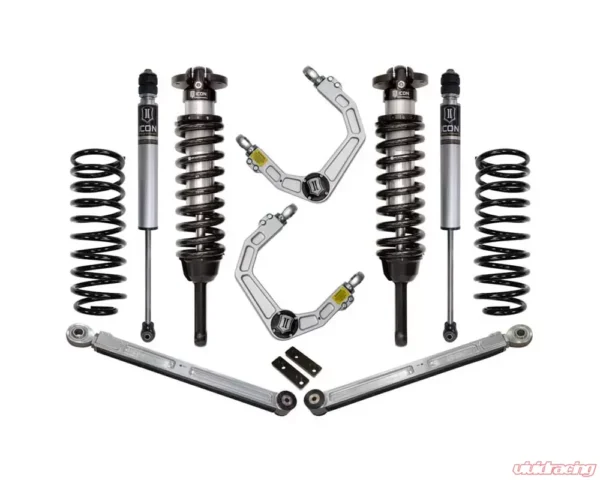

The Stage 3 suspension system for the 2010-UP Toyota 4Runner/2010-2014 FJ Cruiser includes the components found in the Stage 2 system along with an ICON Billet Aluminum Rear Lower Link kit. Extended travel ICON 2.5 Series coilover shocks and a billet aluminum Delta Joint upper control arm kit provide a significant upgrade to the 4Runner’s front suspension. The rear of the vehicle is improved with our 2″ lift coil springs, ICON 2.0 Aluminum Series shocks, and the additional rear lower links. ICON’s CNC machined 6061 billet aluminum lower links are much stronger than the OE units, can be easily adjusted on the truck for optimum pinion angle, and are protected by a machined nylon skid strip to help slide over rocks without damage to the link’s structure. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
View Installation Instructions
Features:
Increased wheel travel and ride quality over stock
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide 0-3.5″ of front lift height
Extended Travel coilovers matched with ICON UCA provides increased front droop travel
Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series internal reservoir rear shocks with 5/8″ shafts
Bolt-on system means no cutting or welding necessary for install
Specifications:
Add-On Part: 198000 — 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 — BILLET SPANNER WRENCH KIT
Add-On Part: 191014 — .25″ COLLAR SPANNER PIN WRENCH
Bushings Included: Yes
Coils Quantity Front: 2
Coils Quantity Rear: 2
Grade Type: Performance
Maximum Lift: 3.5 IN
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys | 17×8.5″ w/ 4.75″ Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 18×9″ w/ 5″ Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 20×9″ w/ 5″ Backspace / 0mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
Spring Rate: 650 PPI
Notes:
Kdss Equipped Require Rear Track Bar 54200
Suspension System Compatible With Kdss. Front Sway Bar Relocation Brackets Not Used For Kdss Equipped Vehicles. Certain Years Require Trimming For Front Reservoir Bracket Fitment
700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Oem Wheels & Tires Fitment: Yes
Ships In Multiple Boxes
Fitment:
Toyota 4Runner 2010-2022
Toyota FJ Cruiser 2010-2014
