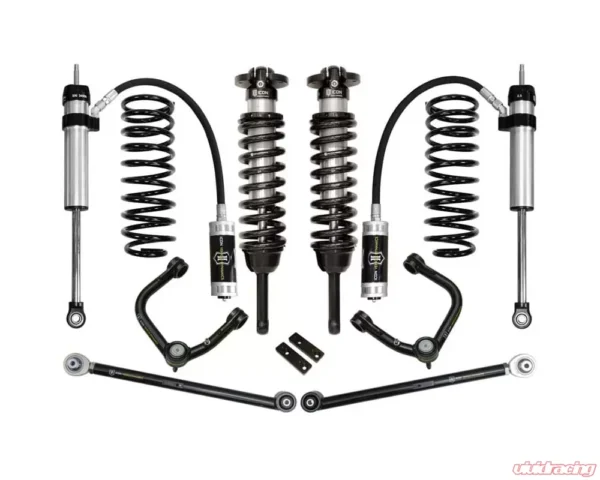

ICON 10-Up Toyota 4Runner/FJ Cruiser 0-3.5″ Lift Stage 4 Suspension System Tubular UCA
$3,811.30
Описание
ICON’s 2010-UP Toyota 4Runner/2010-2014 FJ Cruiser Stage 4 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 3 setup extended travel 2.5 Series coilover shocks, an ICON tubular Delta Joint upper control arm kit, 2″ rear coil springs, and a tubular rear lower link arm kit — but sees the addition of 2.5 Aluminum Series Remote Reservoir rear shocks for balanced damping characteristics front to rear. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable fade» occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON’s «Bump Zone» technology which significantly increases damping ability in the last 2″ of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON’s tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
View Installation Instructions
Features:
Increased wheel travel and ride quality over stock
Bolt-on system means no cutting or welding necessary for install
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers provide 0-3.5″ of front lift height
Extended Travel coilovers matched with ICON UCA provides increased front droop travel
Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8″ shafts
Specifications:
Add-On Part: 198000 — 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 — BILLET SPANNER WRENCH KIT
Add-On Part: 191003 — ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 191011 — TUBULAR UCA BILLET CAP SET
Bushings Included: Yes
Coils Quantity Front: 2
Coils Quantity Rear: 2
Grade Type: Performance
Maximum Lift: 3.5 IN
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys | 17×8.5″ w/ 4.75″ Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 18×9″ w/ 5″ Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 20×9″ w/ 5″ Backspace / 0mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
Spring Rate: 650 PPI
Notes:
Kdss Equipped Require Rear Track Bar 54200
Suspension System Compatible With Kdss. Front Sway Bar Relocation Brackets Not Used For Kdss Equipped Vehicles. Certain Years Require Trimming For Front Reservoir Bracket Fitment
700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Oem Wheels & Tires Fitment: Yes
Ships In Multiple Boxes
Fitment:
Toyota 4Runner 2010-2022
Toyota FJ Cruiser 2010-2014
