034 Motorsport S34 Insuction Bundle Audi S3 8Y | Volkswagen Golf R Mk8 2.0 TFSI 2022+

Description

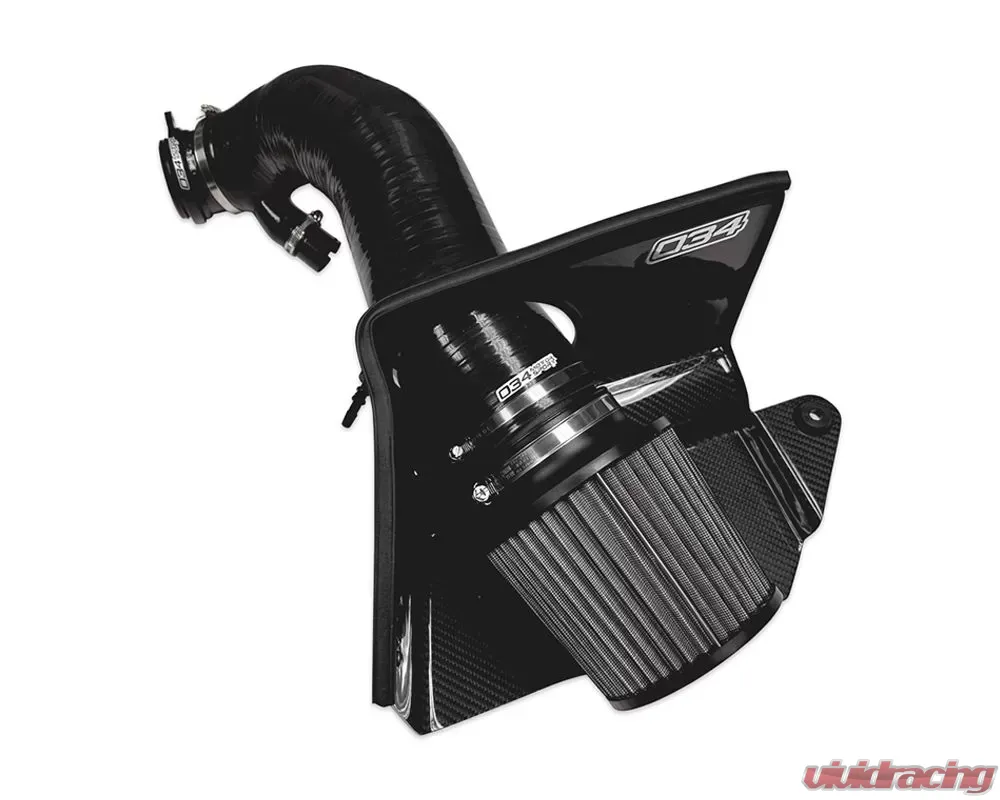

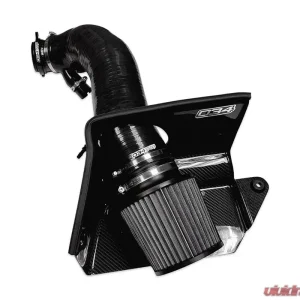

The S34 Insuction Bundle bundles the S34 Carbon Fiber Intake System and Turbo Inlet Pipe to offer the highest flow possible to the turbo inlet. The MQB-Evo 2.0T Turbo Inlet Pipe is manufactured from 6061-T6 aluminum utilizing an internal diameter of 76mm for maximum airflow, with a machined 6061-T6 billet aluminum compressor inlet flange that perfectly mates to allow smooth air entry into the compressor housing.

The MQB-Evo 2.0T Turbo Inlet Pipe is designed to work with OEM-style turbo inlet hoses. The bead-rolled edge retains the inlet hose securely to the inlet pipe. The final touch is a durable gloss black finish for long-lasting good looks with a laser etched 034 logo to top it all off!

Turbo Inlet Adapter Ring

The 034Motorsport Turbo Inlet Pipe utilizes a CNC-machined billet aluminum adapter ring that is perfectly matched to the factory turbo compressor housing. This unique adapter ring is designed to be a smooth air entry between the turbocharger and Turbo Inlet Pipe that utilizes an O-ring to seal the adapter to the inlet. This adapter ring design will allow the 034Motorsport Turbo Inlet Pipe adapt to future turbo upgrades with larger turbo compressor housings with upcoming larger adapter rings.

Features:

• Developed In-House by 034Motorsport’s Engineering Team
• Fits Both Left and Right Hand Drive Configurations
• High-Quality Carbon Fiber Air Block-off Shield
• High-Gloss Epoxy Finish
• 4-Ply Gloss Black Silicone Intake Tube
• OEM+ Fit and Finish
• No Rubbing or Excessive Movement
• Improved Airflow from Factory Airbox and Intake Tube
  • Stock Intake: 474.7 CFM @ 28in H?O
  • 034 Intake: 819.4 CFM @ 28in H?O ~53% Increase
• Enhanced Engine Induction Sounds
• Improved Throttle Response
• Large 4″ Inlet Conical Pleated Cotton Air Filter
• Reduced Intake Air Temperature
• Securely Installs Using Factory Mounting Grommets
• Simple, Straightforward Installation Instructions

What’s Included:

• S34 Carbon Fiber Heat Shield
• S34 4″ Inlet Silicone Hose
• S34 4″ Double-Layered Cotton Pleated Filter
• S34 Secondary Air Injector Adapter
• S34 Secondary Air Injector Filter
• Metal Mounting Bracket for Intake Hose

Install Instructions:

• For S34 Intake Kit CLICK HERE
• For Turbo Inlet Kit Instructions CLICK HERE

Fitment:

• Audi S3 8Y 2.0TFSI 2022-Present
• Volkswagen Golf R Mk8 2.0TFSI 2022-Present

Emissions Disclaimer:

• This product is sold for racing use as well as use on vehicles not registered for on highway use.
• By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
