034Motorsport Dynamic+ Sway Bar Kit for Audi Q5/SQ5 (2018+)

The 034Motorsport Dynamic+ Sway Bar Kit is engineered specifically for the B9 and B9.5 Audi Q5 and SQ5 models, providing a significant upgrade in handling performance. This kit includes front and rear sway bars crafted from high-quality spring steel, ensuring maximum rigidity and durability.

Performance Features

This sway bar kit is designed to minimize body roll, enhance steering feel, and improve turn-in response, making it an excellent choice for both street driving and track performance.

Front Sway Bar Specifications

• 2-Way Adjustable:
  • Soft Setting: 21.3% Increased Sway Bar Rate
  • Firm Setting: 39% Increased Sway Bar Rate (compared to factory SQ5 32mm hollow front sway bar, 3.7mm wall thickness)
• Diameter: 32mm
• Hollow design with thicker walls compared to the factory bar
• Finish: Black powder coating for enhanced durability and stealthy appearance

Rear Sway Bar Specifications

• 2-Way Adjustable:
  • Soft Setting: 130% Increased Sway Bar Rate
  • Firm Setting: 158% Increased Sway Bar Rate (compared to factory SQ5 24.6mm hollow rear sway bar, 3.8mm wall thickness)
• Diameter: 30mm
• One-piece design with solid spring steel construction
• Finish: Black powder coating for durability and stealthy appearance

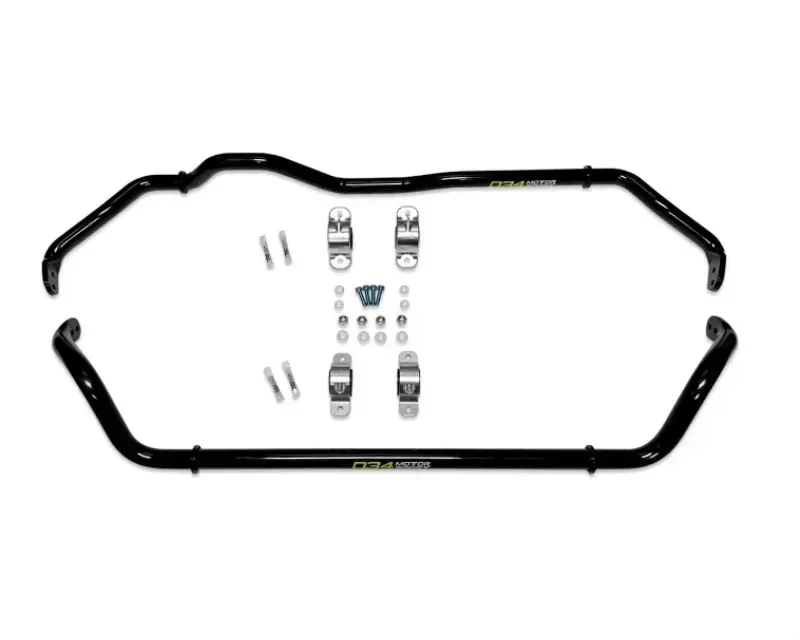

Included Components

• 034Motorsport 32mm Adjustable Front Sway Bar
• 034Motorsport 30mm Solid Adjustable Rear Sway Bar

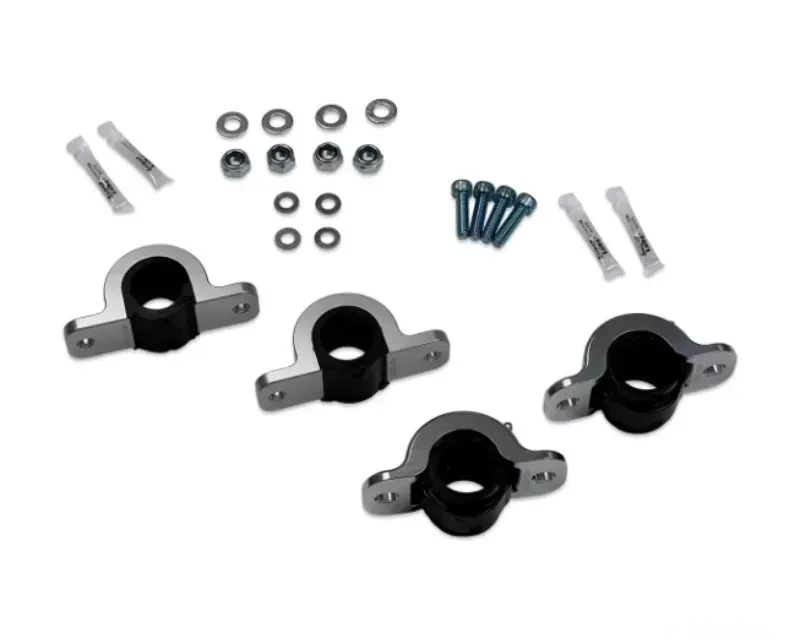

• Polyurethane sway bar bushings

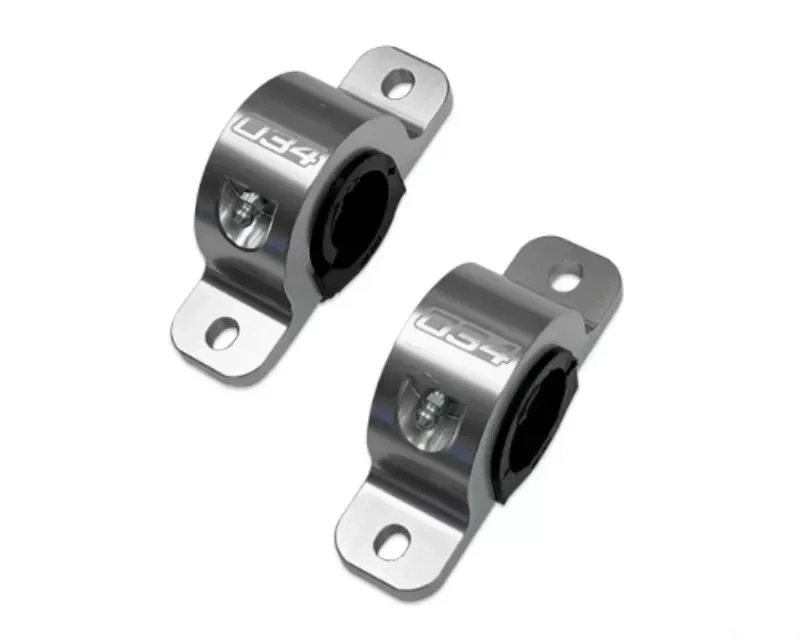

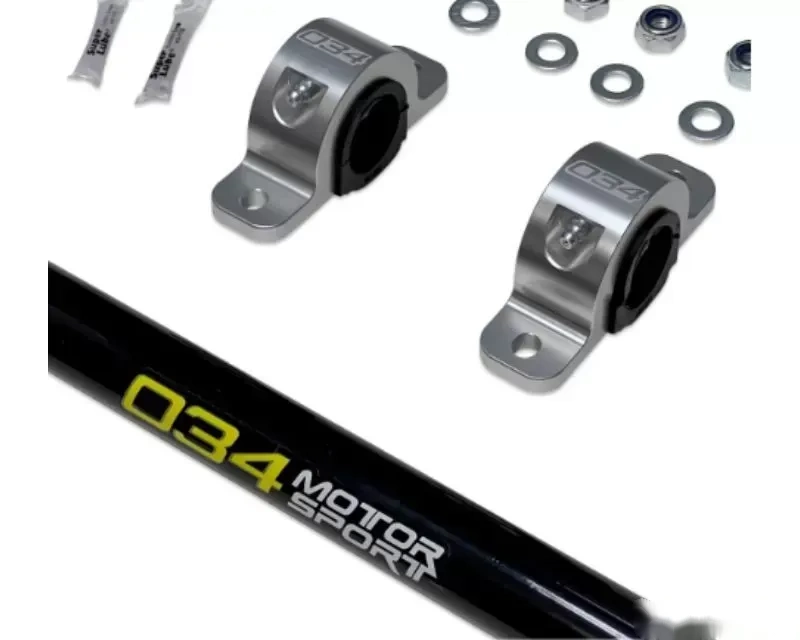

• Billet aluminum sway bar brackets with integrated Zerk fittings
• Installation hardware kit

OEM Part Numbers

• OE Front Bar: 80A 411 305 B (32mm)
• OE Rear Bar: 80A 511 305 S

Fitment

• Audi Q5 B9 | B9.5 2.0 TFSI (2018-2023)
• Audi SQ5 B9 | B9.5 3.0 TFSI (2018-2023)

Installation Notes

Installation of the 034Motorsport Dynamic+ Sway Bar Kit is straightforward, typically taking about one hour per bar. For vehicles that have been lowered, it is crucial to check clearances throughout the full range of suspension articulation to prevent any interference. It is recommended to pair these sway bars with 034Motorsport suspension components, which are designed to work together seamlessly.
