034Motorsport FP34 Fuel Surge Tank

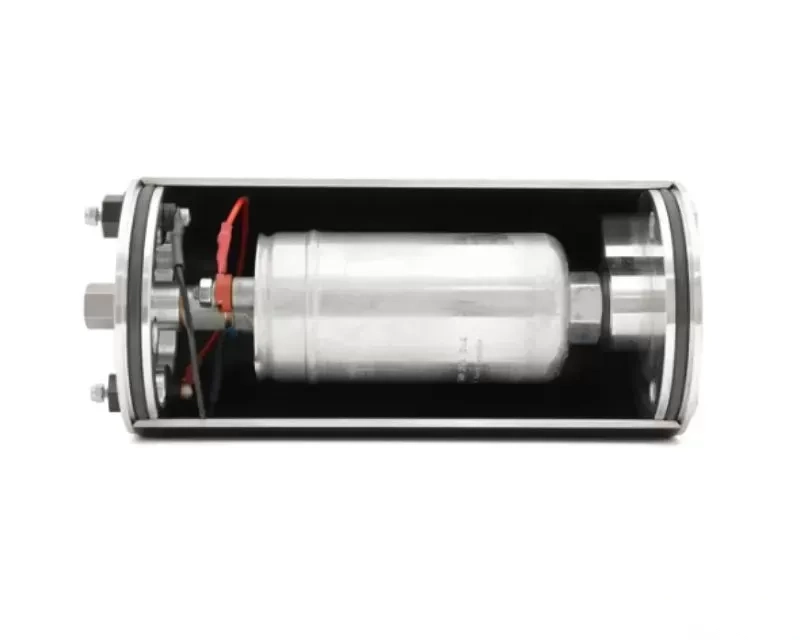

The 034Motorsport FP34 Fuel Surge Tank is a game-changer for VW and Audi enthusiasts seeking to maximize their vehicle's performance. This expertly crafted surge tank fully encloses a Bosch 044 fuel pump within a 1-liter reservoir, providing a reliable solution for those pushing their cars beyond the 300HP threshold. Whether you're driving a Mk4, TT Quattro, or R32, this surge tank is designed to elevate your fuel delivery system to support power levels of up to 700HP.

Why You Need a Fuel Surge Tank

Your stock VW/Audi fuel pump is typically rated for 200-300HP, which may limit your performance upgrades. Many enthusiasts consider replacing the in-tank pump, but this isn't always feasible due to unique pickup designs in certain models. The FP34 allows you to maintain your stock pump while significantly enhancing fuel flow, ensuring that your performance modifications are supported without compromise.

Key Features

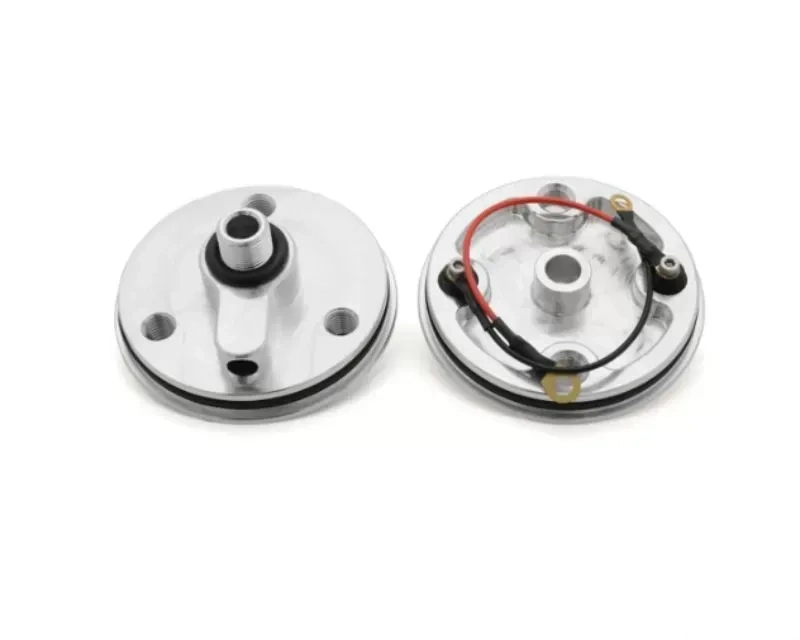

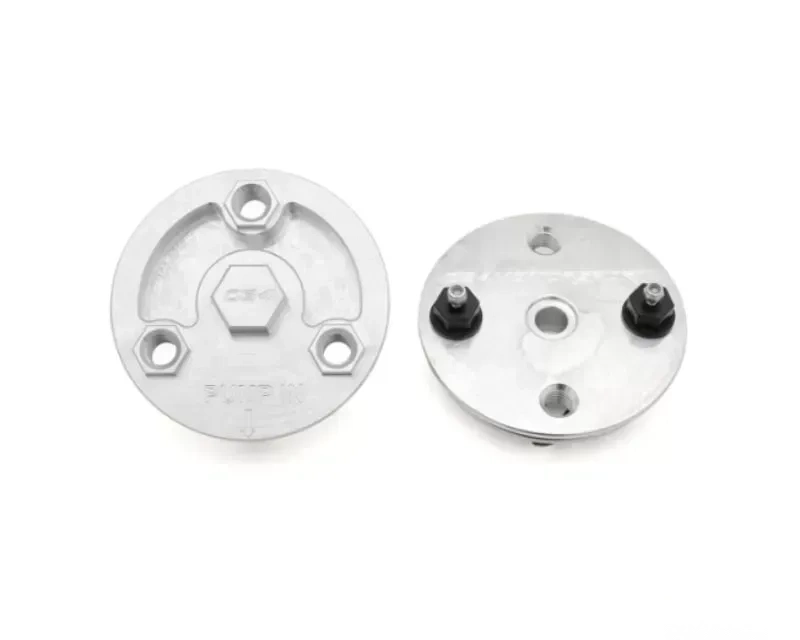

• CNC machined billet aluminum end caps with Viton o-rings for superior sealing.
• Tefzel fuel-proof wiring, ensuring durability and reliability.

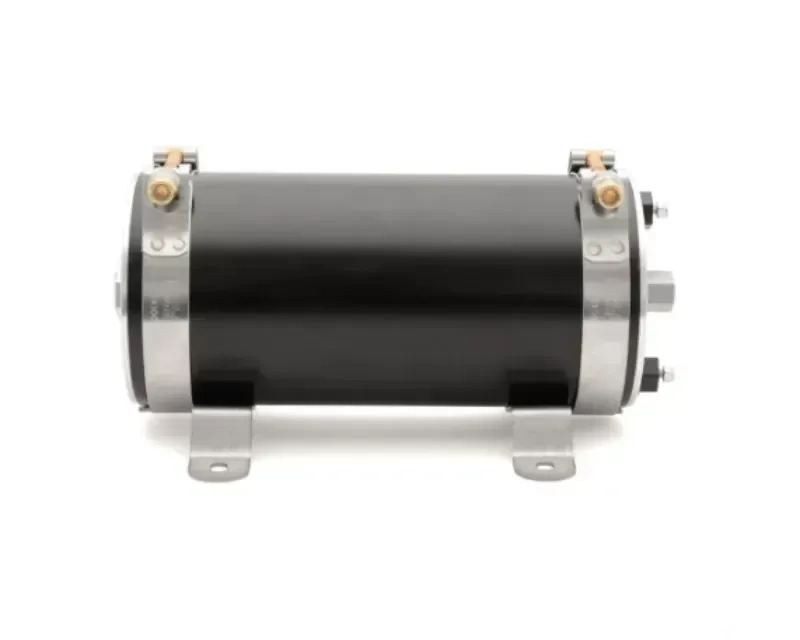

• Extruded aluminum body measuring 4" in diameter and 8.5" long, finished in sleek black anodizing.
• Flexible mounting options with integrated tabs, allowing for horizontal or vertical installation.
• M12 threaded ports for inlet and outlet, compatible with nipple or AN connections.
• Designed to eliminate fuel starvation issues, providing consistent flow to your injectors.

Benefits of the FP34 Fuel Surge Tank

• Solid construction with no welds, ensuring long-lasting performance.
• Whisper-quiet operation with the pump fully submerged, minimizing noise.
• Maximizes fuel availability with 99% of the 1-liter volume accessible to the pump.
• Versatile mounting options allow for installation in the engine compartment or any space available.
• Supports fuel flow for high-performance applications, achieving pressures up to 90+psi (6.2 BAR).

What's Included

• Aluminum body and end caps compatible with the Bosch 044 pump.
• Three 12mm plugs for various configurations.
• Wire pass-throughs with pre-terminated fuel-proof wiring.
• Mounting feet for flexible installation of the FP34 Fuel Pump Unit.

Installation Considerations

• The FP34 operates at 0 pressure, so ensure the return from the fuel rails directs back into the tank to vent air properly.
• Stock or in-tank pumps will flow more efficiently at 0 psi, enhancing overall fuel delivery.
• Four main connections to manage: 1) Fuel IN from the in-tank pump, 2) Fuel vent to the stock tank, 3) Fuel return from the regulator, and 4) Fuel output to the rail.
• Can be mounted virtually anywhere, but always ensure the outlet is positioned horizontally or vertically for optimal fuel capacity.
• Lubricate the large body o-rings with light oil before installation to ensure a proper seal.

Customer Feedback

A 2021 Audi TT owner noted, "The FP34 transformed my car's fueling system. I was able to push my setup to 600HP without any fuel starvation issues. The quiet operation is a bonus!"

A Mk4 Golf driver added, "Installation was straightforward, and the flexibility in mounting options made it fit perfectly in my setup. Definitely a must-have for serious power builds."

Upgrade your fuel delivery with the 034Motorsport FP34 Fuel Surge Tank and ensure your VW or Audi is ready to handle the performance you demand.
