034Motorsport P34 Performance Cold Air Intake System

The 034-108-1011 P34 Performance Cold Air Intake System is engineered specifically for the 8V Audi A3/S3/TT/TTS and MkVII Volkswagen Golf/GTI/R models equipped with the EA888 1.8T and 2.0T Gen 3 engines. This intake system is designed to replace the restrictive factory components, enhancing airflow and optimizing engine performance.

Design and Engineering

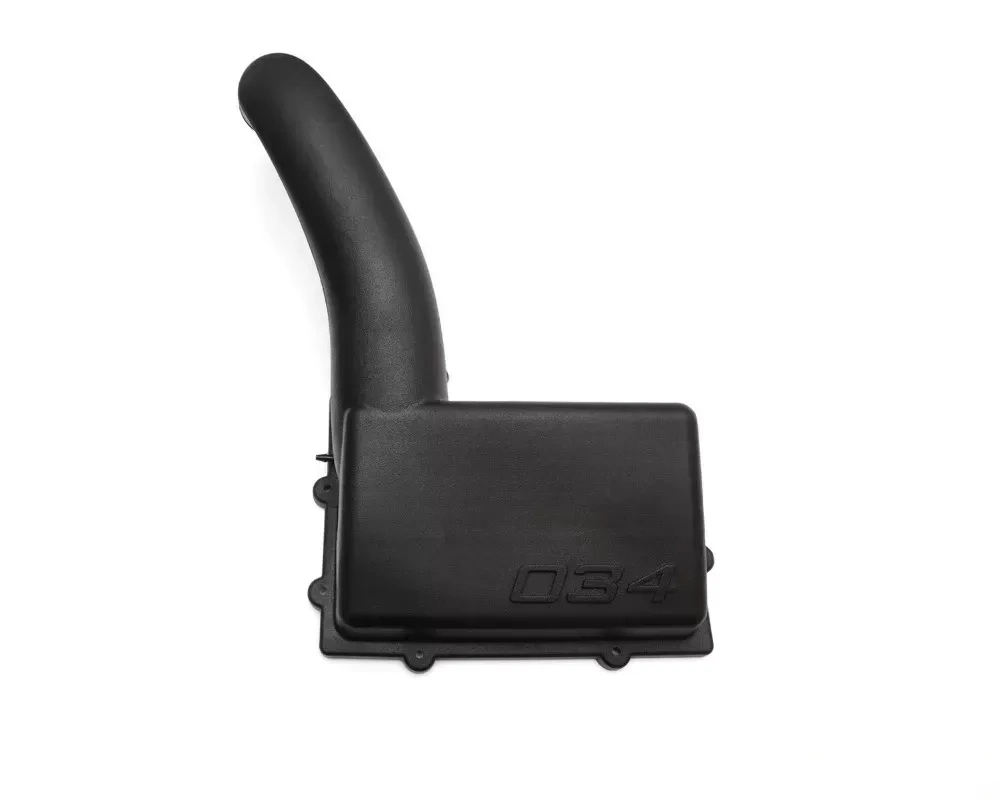

034Motorsport's engineers conducted extensive research to identify the limitations of the factory intake system. The factory air filter, upper airbox, and turbo inlet tube were found to restrict airflow, which can hinder performance even at stock power levels. The P34 system incorporates a one-piece intake tube that eliminates unnecessary couplers and transitions, significantly reducing turbulence and pressure drop before the turbo inlet.

True Cold Air Intake

The enclosed design of the P34 intake system prevents hot air from entering the intake tract, ensuring that the engine receives cooler, denser air. This setup connects directly to the factory lower airbox, allowing the high-flow panel filter to draw fresh air from the factory inlet duct, enhancing overall performance.

High-Flow Performance Air Filter

This system features a high-flow panel air filter constructed from double-layer pleated cotton. This design not only increases airflow but also maintains excellent filtration, contributing to improved engine efficiency and longevity.

OEM+ Fit and Finish

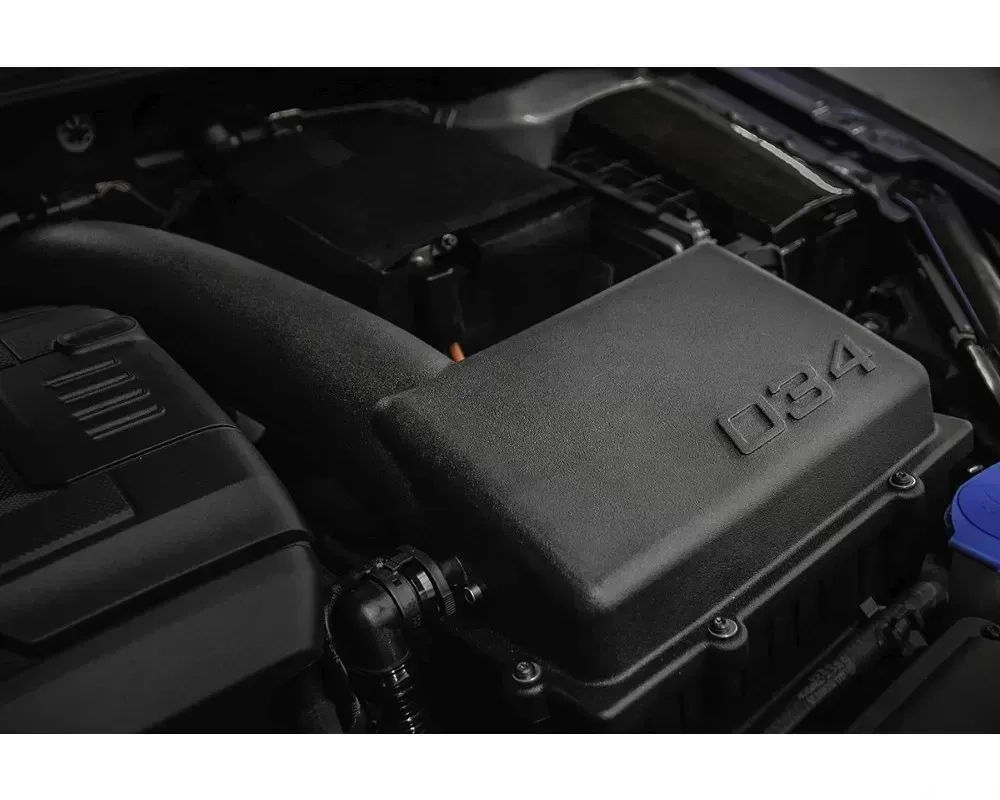

With a textured finish that complements the factory plastic trim, the P34 intake system is designed for a seamless installation. It fits directly to the turbo inlet pipe and factory lower airbox, providing an OEM+ appearance that integrates well with your vehicle's engine bay.

Performance Gains

Testing on a 2015 Volkswagen GTI using a Mustang AWD Dynamometer confirmed substantial gains in horsepower and torque:

• Stock Intake: 223 Wheel Horsepower / 285 Wheel Foot-Pounds of Torque
• P34 Intake: 240 Wheel Horsepower / 297 Wheel Foot-Pounds of Torque
• Peak Horsepower Gain: 10 WHP @ 6,100 RPM
• Peak Torque Gain: 12 WTQ @ 3,100 RPM

Installation and Components

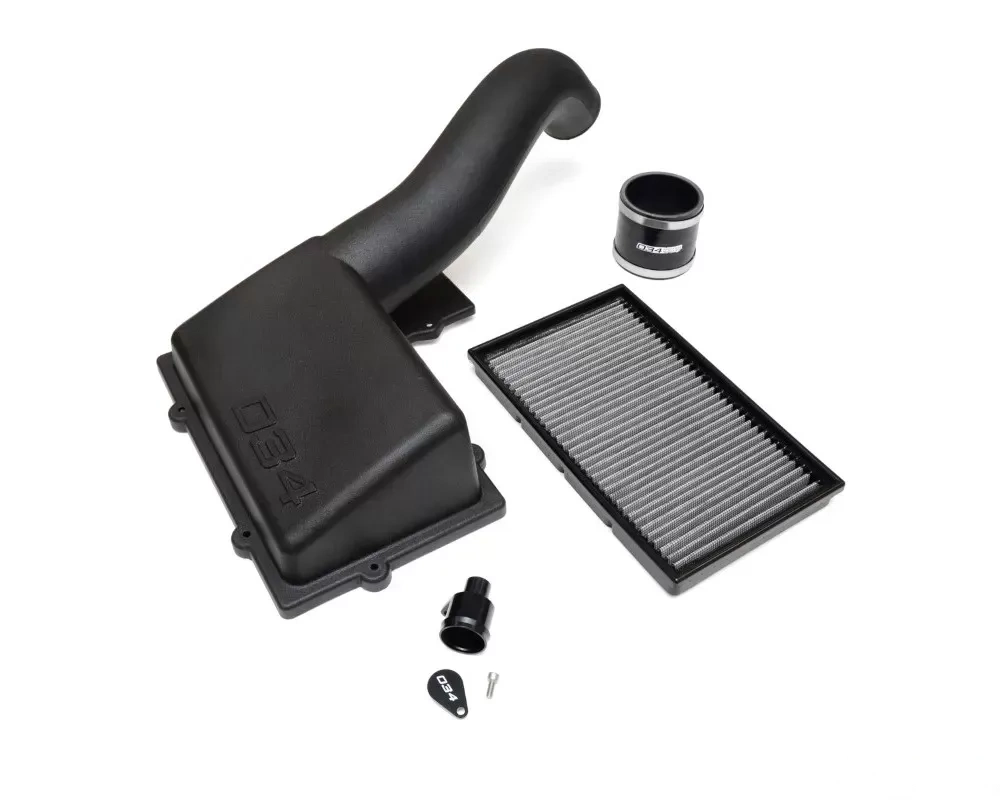

The installation process is straightforward, requiring no additional parts for vehicles with or without factory secondary air injection (SAI) systems. Included in the package are:

• 034Motorsport P34 MQB Air Intake System
• 034Motorsport High-Flow Panel Air Filter

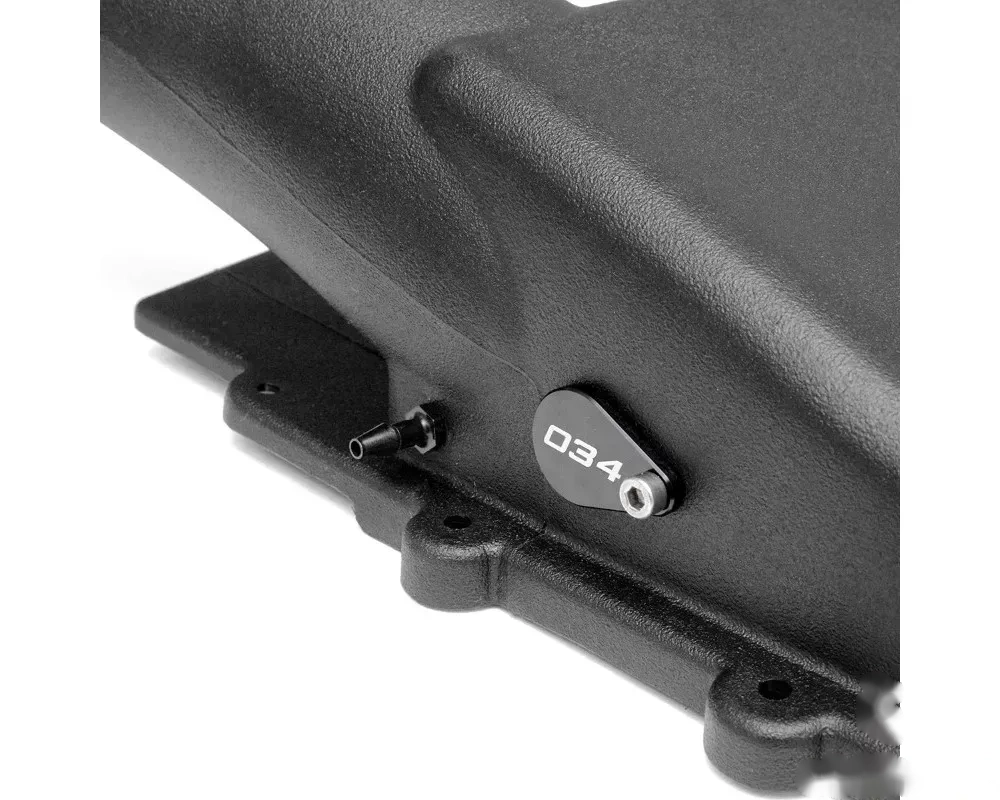

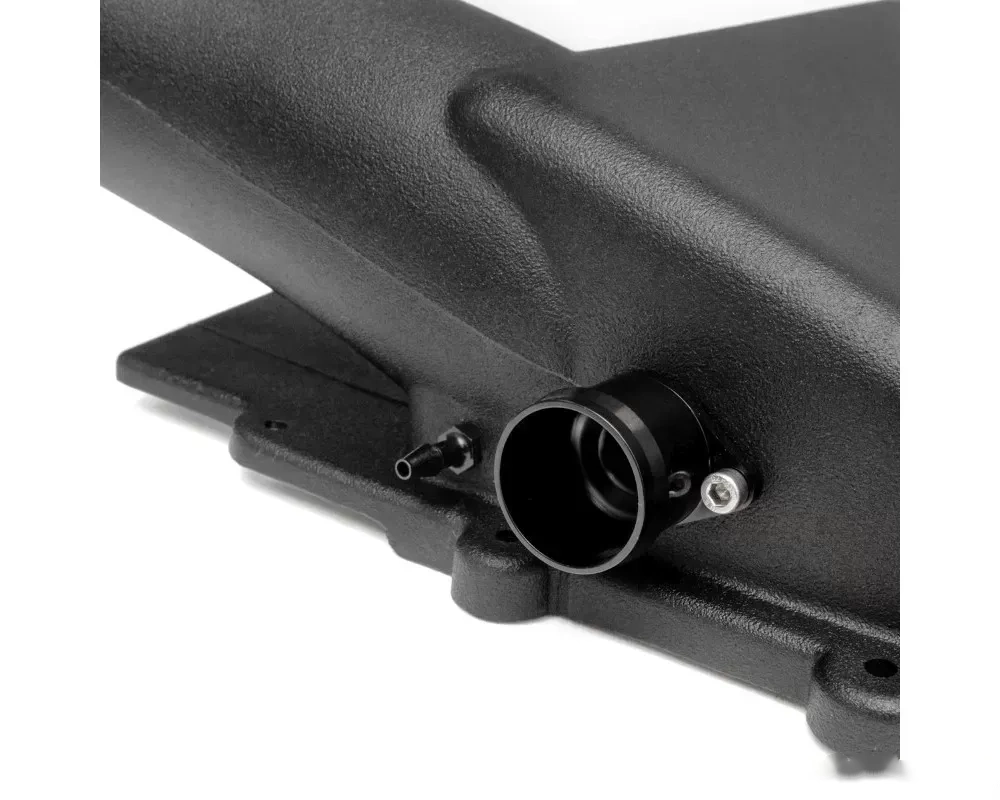

• Integrated SAI Adapter Fitting
• Silicone Turbo Inlet Coupler & Hose Clamps

Compatible Vehicles

• 2015 - Present Audi A3/S3 (8V - MQB) - 1.8T & 2.0T
• 2016 - Present Audi TT/TTS (MkIII - MQB) - 2.0T
• 2015 - Present Volkswagen Golf/GTI/R (MkVII - MQB) - 1.8T & 2.0T
• 2019 - Present Volkswagen Jetta (MkVII - MQB) - 2.0T Gen 3
