034 Motorsports S34 Carbon Fiber Intake for Audi S4/S5 B8/B8.5 3.0 TFSI (2010-2017)

The 034-108-1027 S34 Carbon Fiber Intake is engineered specifically for the Supercharged 3.0 TFSI engine found in the Audi B8 and B8.5 S4 and S5 models. This intake system is designed to enhance airflow, improve performance, and deliver a more aggressive induction sound while maintaining OEM-level filtration.

Design and Construction

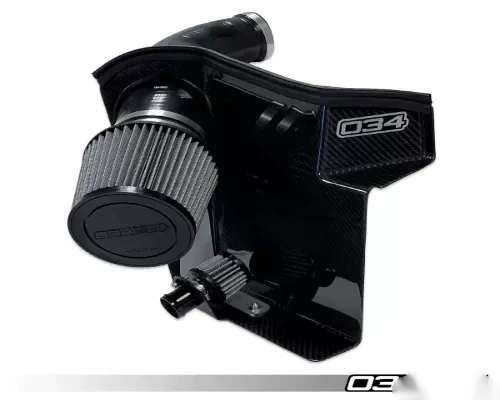

Constructed from high-quality carbon fiber, the S34 intake features a sleek finish that not only looks great under the hood but also serves a functional purpose. The carbon fiber heat shield is designed to minimize heat soak by preventing hot air from entering the intake system, ensuring cooler air is directed to the engine.

Airflow Optimization

The intake utilizes a large 4" inlet conical air filter, which is free from restrictive shrouding. This design allows for maximum airflow while channeling cool outside air through a CFD-optimized 4-ply silicone inlet hose, which increases air velocity directly to the throttle body. The attention to detail in the intake tube design ensures smooth transitions and minimal pressure drop, enhancing overall performance.

Performance Air Filter

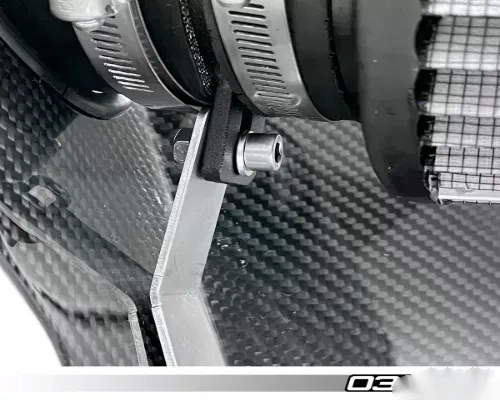

The included high-flow conical air filter is constructed with a double-layer pleated cotton filtration medium, capable of trapping particles as small as 5 microns. This filter not only improves airflow but also maintains superior filtration quality. Additionally, a robust air filter support system prevents unwanted movement, ensuring consistent performance under varying engine loads.

Performance Gains

Extensive testing on a Mustang AWD Dynamometer has confirmed that the S34 Carbon Fiber Intake provides significant gains in horsepower and torque. For example, with a Stage 2+ E40 57.75/190mm Pulley Combo, the intake achieved:

• Stock Intake: 416 WHP / 396 WTQ
• S34 Carbon Fiber Intake: 436 WHP / 416 WTQ
• Peak Crank Gains: 26 HP / 24 TQ

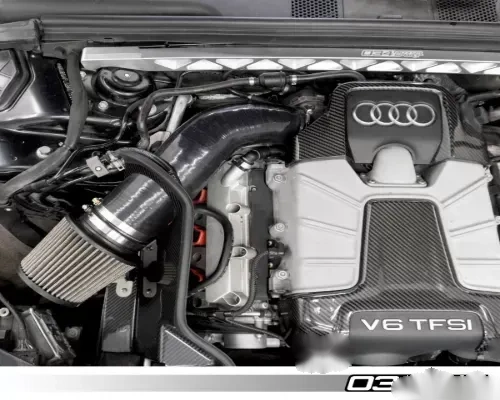

Installation and Fitment

The S34 Carbon Fiber Intake is designed for straightforward installation using factory mounting grommets. It fits both left and right-hand drive configurations without any rubbing or excessive movement, ensuring a clean and professional look in your engine bay.

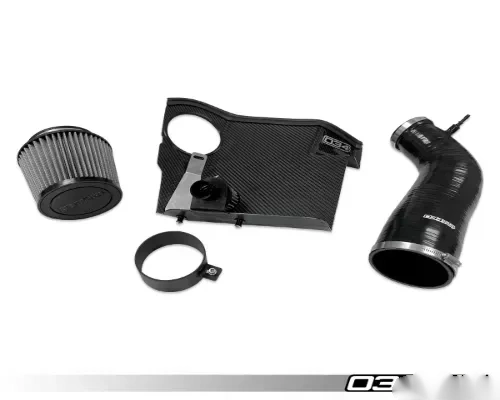

Included Components

• S34 Carbon Fiber Heat Shield
• S34 4" Inlet Silicone Hose
• S34 4" Double-Layered Cotton Pleated Filter

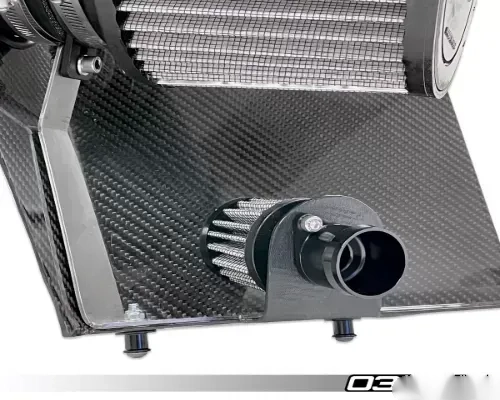

• S34 Secondary Air Injector Filter
• Metal Mounting Bracket for Intake Hose

Disclaimer

• This product is sold for racing use as well as use on vehicles not registered for on highway use.
• By purchasing this product, you understand that this product is sold for racing use and is not legal for use on highway or street vehicles.

Fitment

• Audi S4 2010-2017 B8/B8.5 3.0 TFSI
• Audi S5 2010-2017 B8/B8.5 3.0 TFSI
