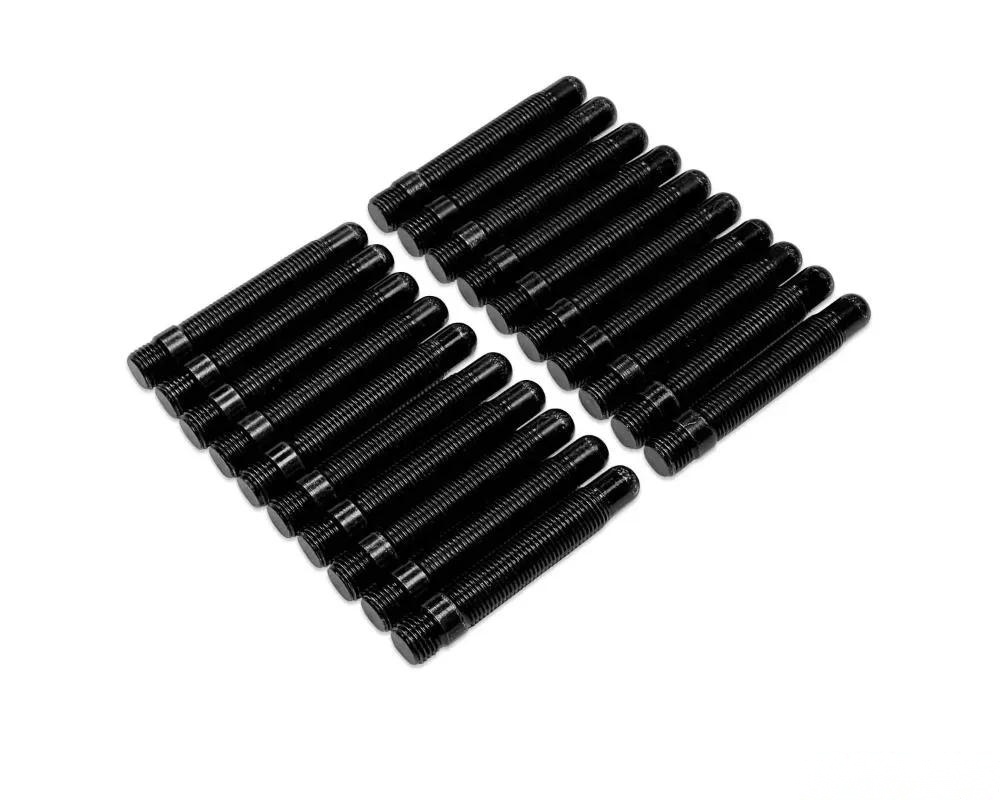

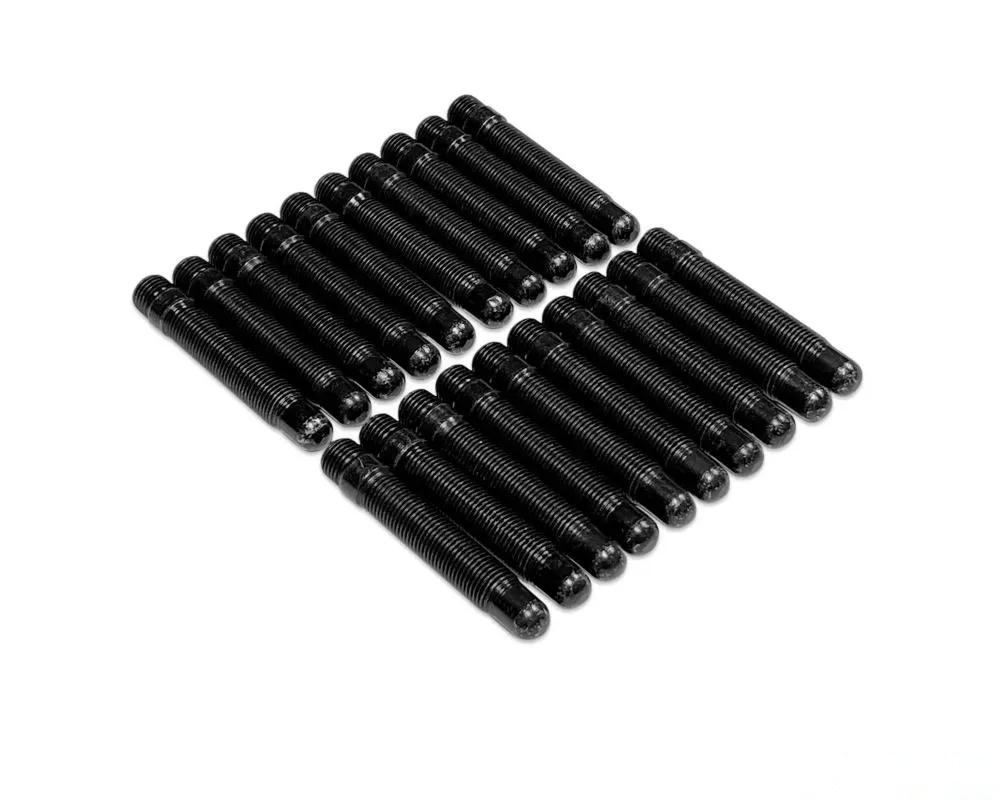

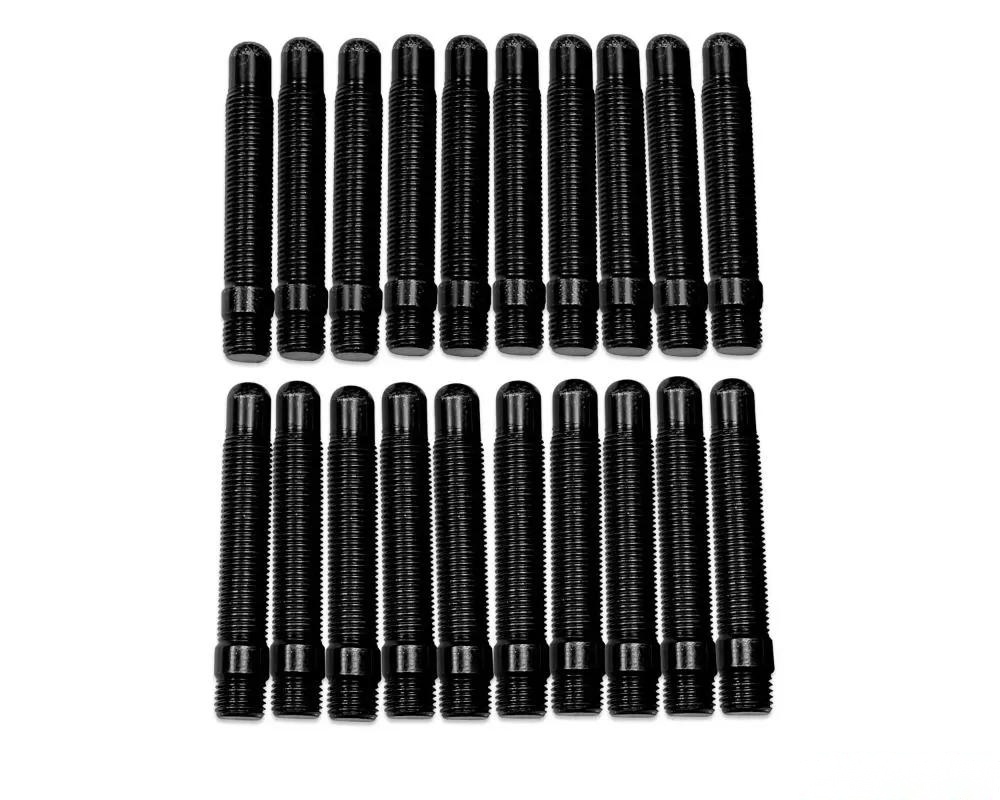

034Motorsport Bullet Nose 75mm Stud & Cone Seat Nut Pack of 20

The 034Motorsport Bullet Nose 75mm Stud & Cone Seat Nut Pack of 20 is engineered for precision and ease of use during wheel changes. This kit is particularly beneficial for those who frequently swap wheels, offering a design that facilitates quick alignment and installation.

Key Features

• Material: Constructed from high-tensile Grade 10.9 Chromoly Steel, ensuring durability and resistance to wear.
• Finish: Coated in heavy-duty black zinc to protect against corrosion and environmental factors.
• Thread Specifications: M14x1.5mm threads provide compatibility with a wide range of applications, particularly within the VAG group.
• Bullet Nose Design: The unique bullet nose shape allows for self-alignment of the wheel nuts, simplifying the installation process.
• Dimensions: Features an 8mm unthreaded shoulder for brake rotor compatibility and a 75mm stud length for ample fitment options.

Specifications

• Bullet Nose Stud Size:
• Overall Length: 75mm
• Maximum Spacer Size: 20mm
• Nut Thread Length (to Hub Face): 65mm
• Hub Face to Stud Nose: 80mm

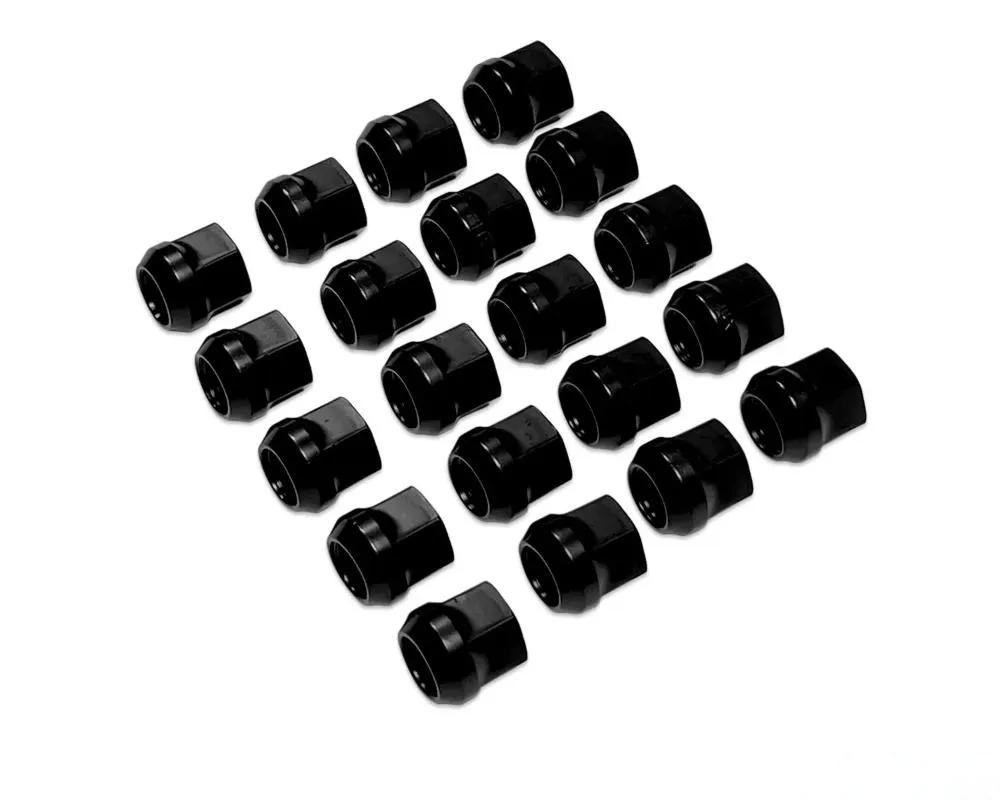

• Cone Seat Wheel Nut Specifications:
• Thread Size: M14x1.5mm
• Hex Head Size: 19mm

Installation Notes

Switching from factory wheel bolts to these bullet nose studs significantly enhances the ease of wheel installation. The self-aligning feature prevents misalignment during installation, reducing the risk of dropping wheels while attempting to thread nuts. For detailed installation instructions, CLICK HERE.
