034Motorsport Camshaft Kit for 3.0 TFSI Supercharged Engine

Transform your Audi's performance with the 034Motorsport Camshaft Kit, specifically engineered for the 3.0 TFSI Supercharged Engine. This kit is a direct drop-in replacement for your factory camshafts, valve springs, and retainers, designed to enhance your engine's powerband all the way to redline while maintaining that crucial bottom-end torque.

Why Upgrade Your Camshafts?

When you're looking to push your 3.0 TFSI engine to its limits, upgrading your camshafts is a key step. The factory camshafts are optimized for the stock supercharger setup, but with the 034Motorsport Camshaft Kit, you can open up your intake valves longer, allowing for greater airflow into the combustion chamber. This results in a significant boost in power without sacrificing drivability.

Kit Contents

• 2x Intake Cams
• 2x Exhaust Cams

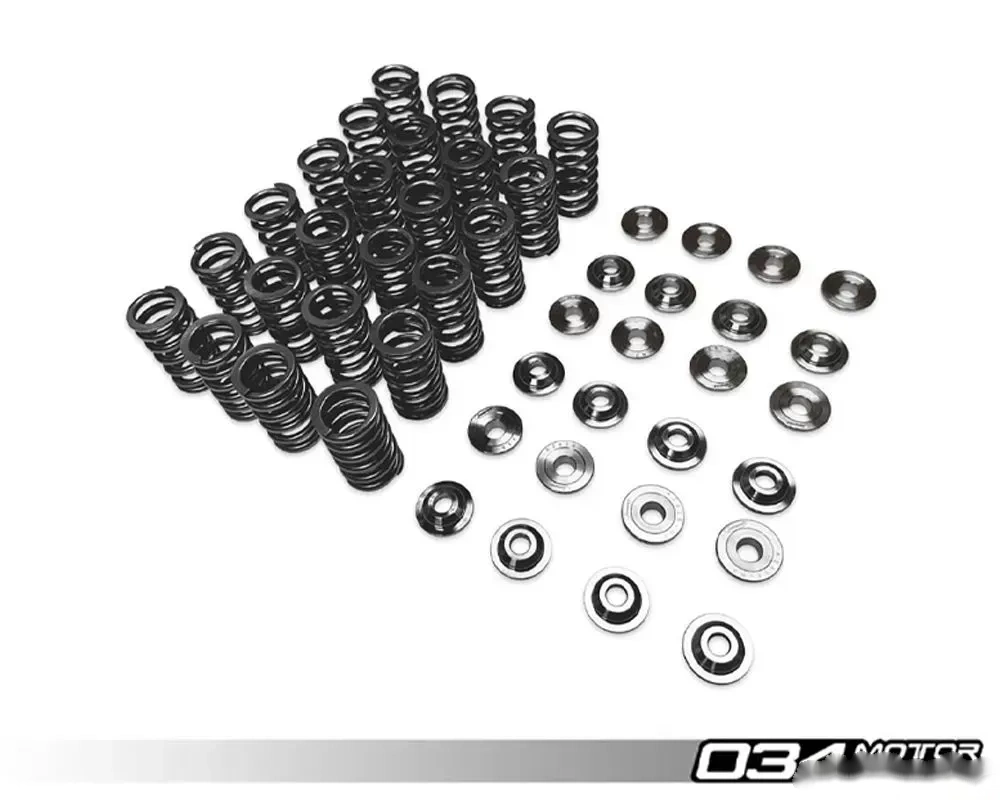

• 24x Valve Springs
• 24x Valve Spring Retainers (Top)
• 24x Valve Spring Retainers (Bottom)

Performance Features

• Manufactured in collaboration with Cat Cams, a leader in performance camshaft production.
• Single-piece steel billets enhance stiffness and strength for higher acceleration profiles.
• Increased lift and duration provide an estimated boost of ~30 peak wheel horsepower and ~10-15 peak wheel torque.
• Includes valve springs and retainers to minimize valve train mass, ensuring efficient operation.
• Maintains stock-like drivability for everyday use.

Technical Specifications

• Duration @ 0.1mm Intake: 262°
• Duration @ 0.1mm Exhaust: 271°
• Duration @ 1.0mm Intake: 215°
• Duration @ 1.0mm Exhaust: 225°
• Valve Lift Intake: 6.65mm
• Valve Lift Exhaust: 6.55mm
• Lobe Angle Intake: 128°
• Lobe Angle Exhaust: 114°
• Timing @ 1.0mm Intake: -21° / 56°
• Timing @ 1.0mm Exhaust: 46° / -1°
• Valve Lift @ TDC Intake: 3.35mm
• Valve Lift @ TDC Exhaust: 0.90mm

Fitment

• Audi S4/S5 (2009-2017)
• Audi A8 D4 3.0 TFSI (2011-2018)
• Audi Q5 B8/B8.5 2.0 TFSI (2009-2017)
• Audi SQ5 B8/B8.5 3.0 TDI (2012-2017)
• Audi C7 A6 (2012-2015)
• Audi C7 A7 (2012-2015)
• Audi D4 A8 3.0T (2010-2015)
• Audi 4L Q7 3.0T (2011-2015)

Important Notes

• Not compatible with C7.5 A6/A7 models.
• For C7.5 models, please select B.5 cams.

Upgrade your Audi's performance with the 034Motorsport Camshaft Kit and experience the difference in power and responsiveness. Whether you're on the street or the track, this kit is designed to deliver the performance you crave.
