034Motorsport Supercharger Heat Exchanger Upgrade Kit

The 034-102-1010 Supercharger Heat Exchanger Upgrade Kit from 034 Motorsports is engineered for the Audi C7 and C7.5 A6 and A7 models, specifically those equipped with the 3.0 TFSI engine from 2012 to 2018. This upgrade is designed to enhance thermal management, crucial for maintaining optimal performance, especially under increased power levels associated with Stage 1, 2, and 2+ tunes.

Performance and Cooling Efficiency

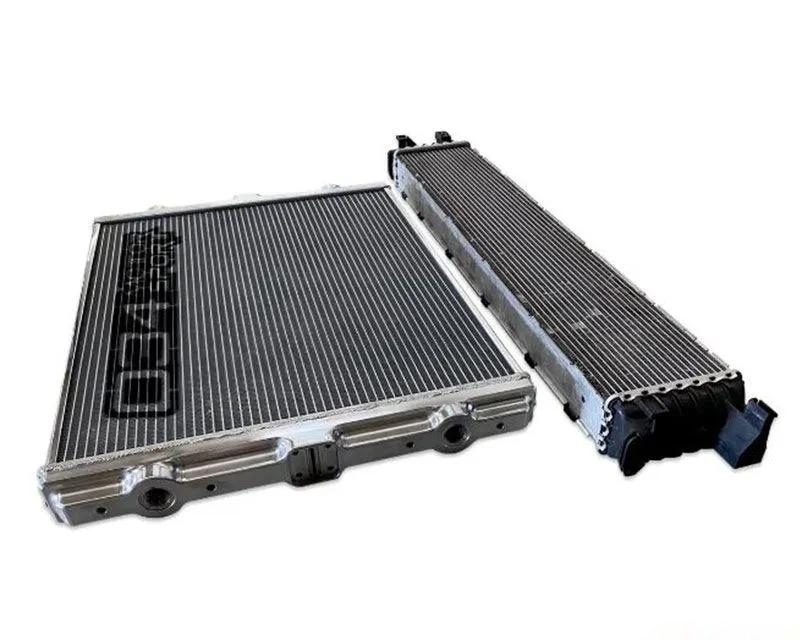

Testing has demonstrated that this heat exchanger significantly reduces intake air temperatures compared to the stock unit. The oversized core boasts a frontal area that is 2.4 times larger and a fluid volume that is 2.2 times greater than the factory heat exchanger. This improvement allows for more efficient cooling, which translates to better performance during extended driving sessions.

Design and Construction

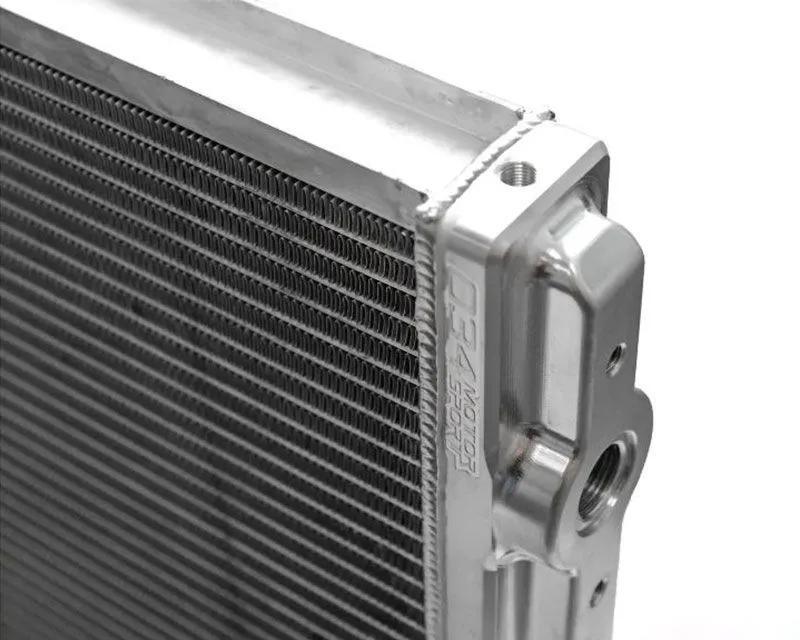

• Material: Constructed from high-quality 6061 billet aluminum, the CNC-machined end tanks provide durability and a premium finish.
• Dimensions:
  • Stock Exchanger: 31.9in x 5.5in x 2.4in (810mm x 140mm x 60mm)
  • 034 Exchanger: 24.4in x 17.7in x 2.0in (620mm x 450mm x 50mm)
• Fluid Capacity:
  • Stock: 1.1 quarts
  • 034: 2.4 quarts
• End Tank Features: Both end tanks include bleeder plugs for easy air removal, ensuring efficient operation without the need for special tools.

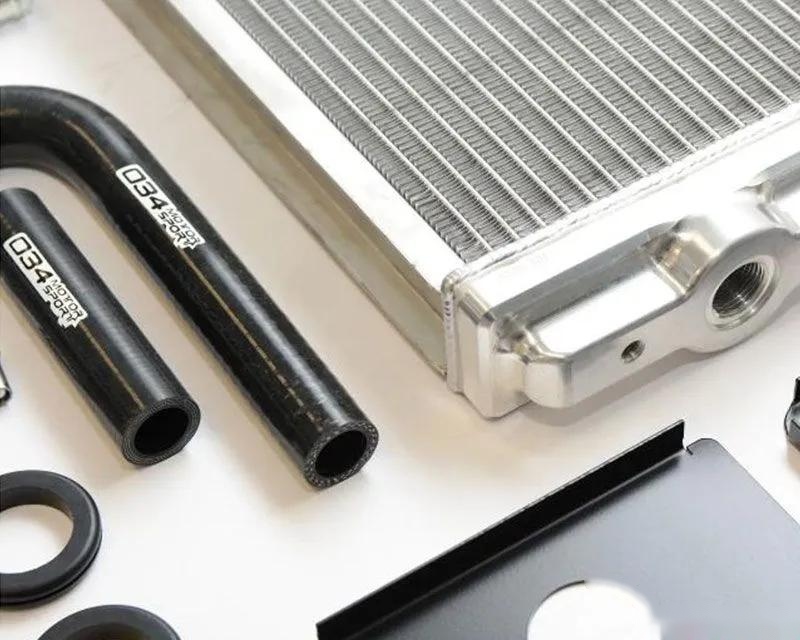

• Hoses: Custom molded multilayer silicone hoses are included, providing a precise fit and enhanced durability.

Installation and Fitment

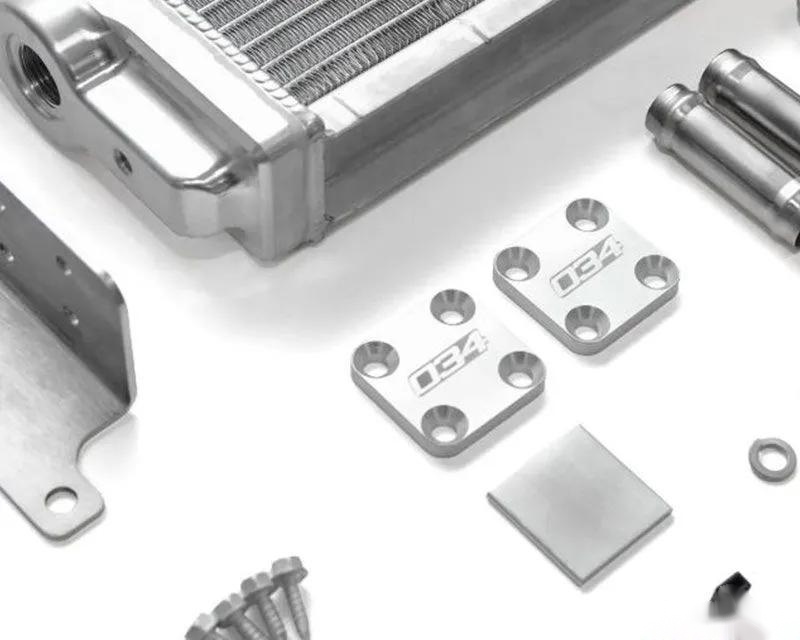

Installation is straightforward, designed to utilize the stock crash bar for a clean look. The kit contains 49 components, ensuring a perfect fit and function. It's also reversible, allowing for easy removal if necessary.

Confirmed Fitment

• Audi A6 C7/C7.5 3.0 TFSI (2012-2018)
• Audi A7 C7/C7.5 3.0 TFSI (2012-2018)

This heat exchanger upgrade kit is a robust solution for anyone looking to improve their Audi's cooling efficiency and performance, especially when pushing for higher power outputs.
