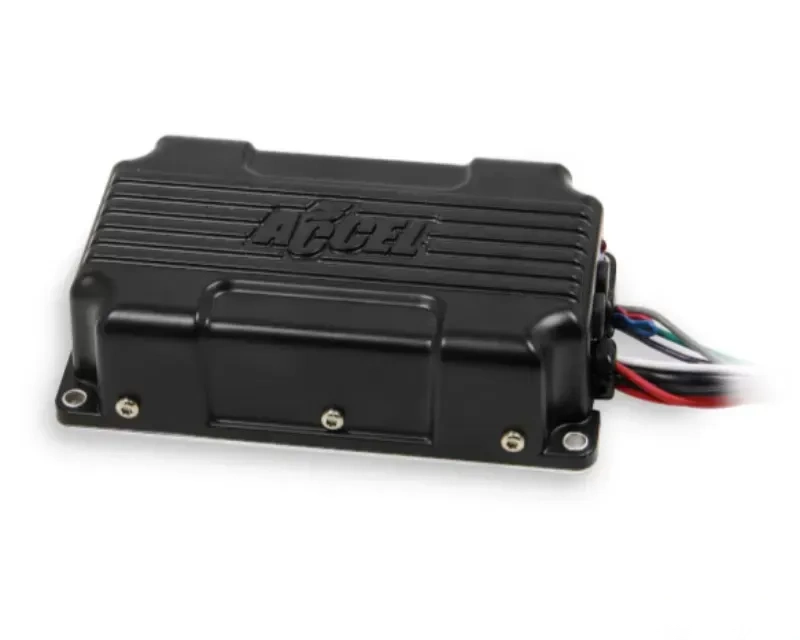

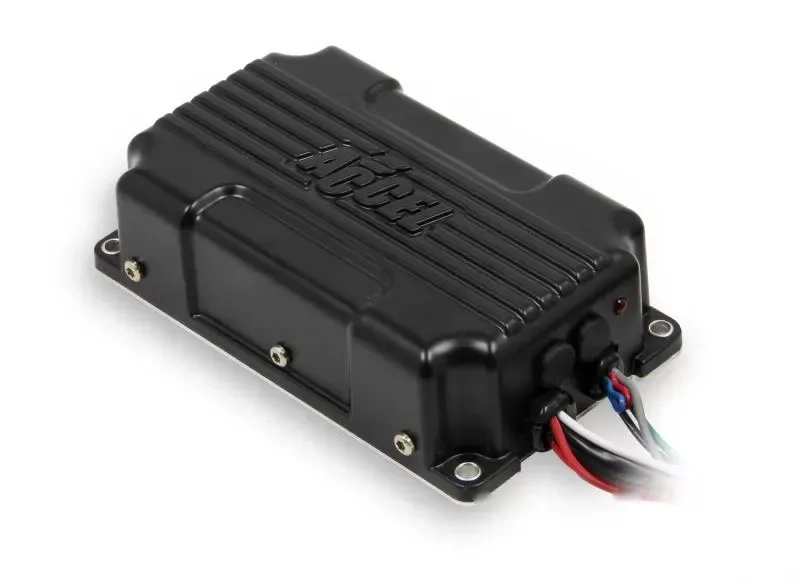

The ACCEL SuperBox is one of the best ignition values on the market, a perfect blend of value and performance. the ACCEL SuperBox Capacitive Discharge Ignition System is the perfect upgrade. When the engine is running at low rpm, this modern capacitive-discharge ignition fires a series of multiple sparks that last for 20 degrees of crankshaft rotation, ensuring better combustion of the air/fuel mixture and creating instant throttle response and a smoother idle. The ACCEL SuperBox is built around a durable cast-aluminum housing, can be set for 4-, 6- or 8-cylinder applications, and easily connects to points, amplifiers, and magnetic-pickup distributors. An adjustable rev-limiter protects the engine in the event of driveline failure or the occasional missed shift, and it's fully adjustable with rotary dials in 100-rpm increments.

Features:

• Multiple sparks for improved starting, idle and throttle response
• Full power output at high rpm
• Easily connects to points, amplifiers, and magnetic-pickup distributors
• Adjustable rev-limiter for over-rev protection
• 4-, 6-, and 8-cylinder applications
• Accessory harness available for plug & play on most applications
• EO # D-115-23

Specifications:

• Current Draw: .7 Amp per 1,000 RPM
• Emission Code: 1
• EO Number: D-115-23
• Primary Voltage: 435 Volts
• Product Type: Choke Components
• RPM Range: 15,000 RPM with 14.4 Volts
• Secondary Voltage: 43,000 Volts
• Spark Energy: 95 mJ per spark
• Spark Series Duration: 20 Degree Crankshaft Rotation
• Voltage Required: 10-18 Volts, Negative Ground

Notes:

• CARB EO: D-115-23
