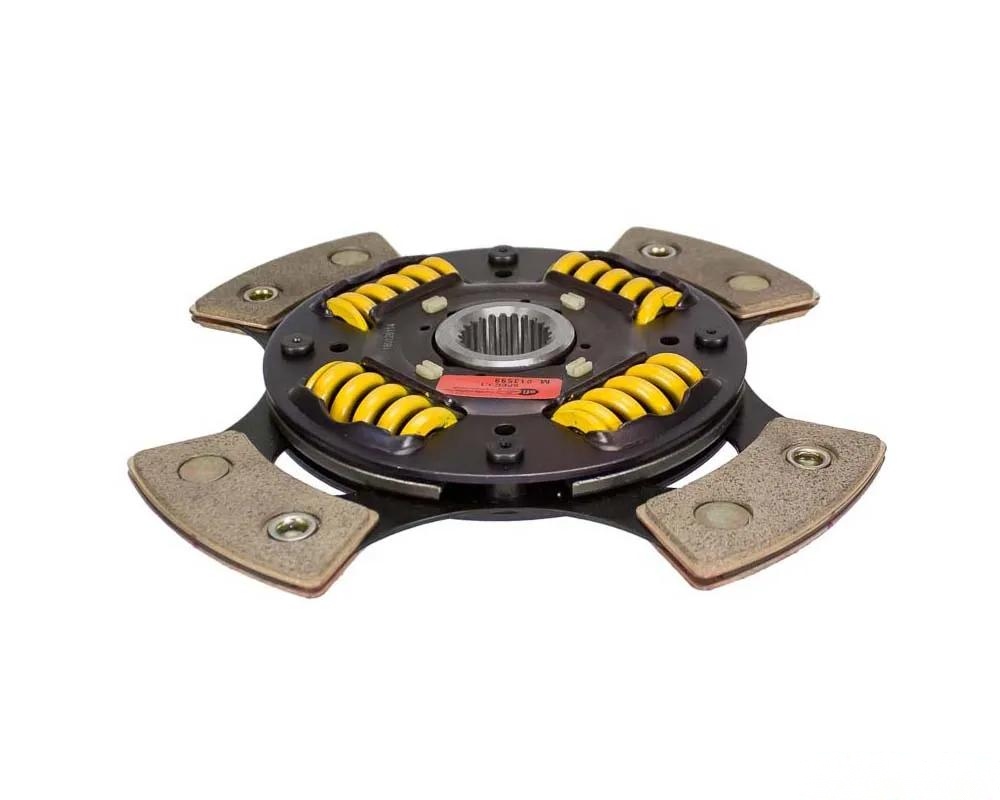

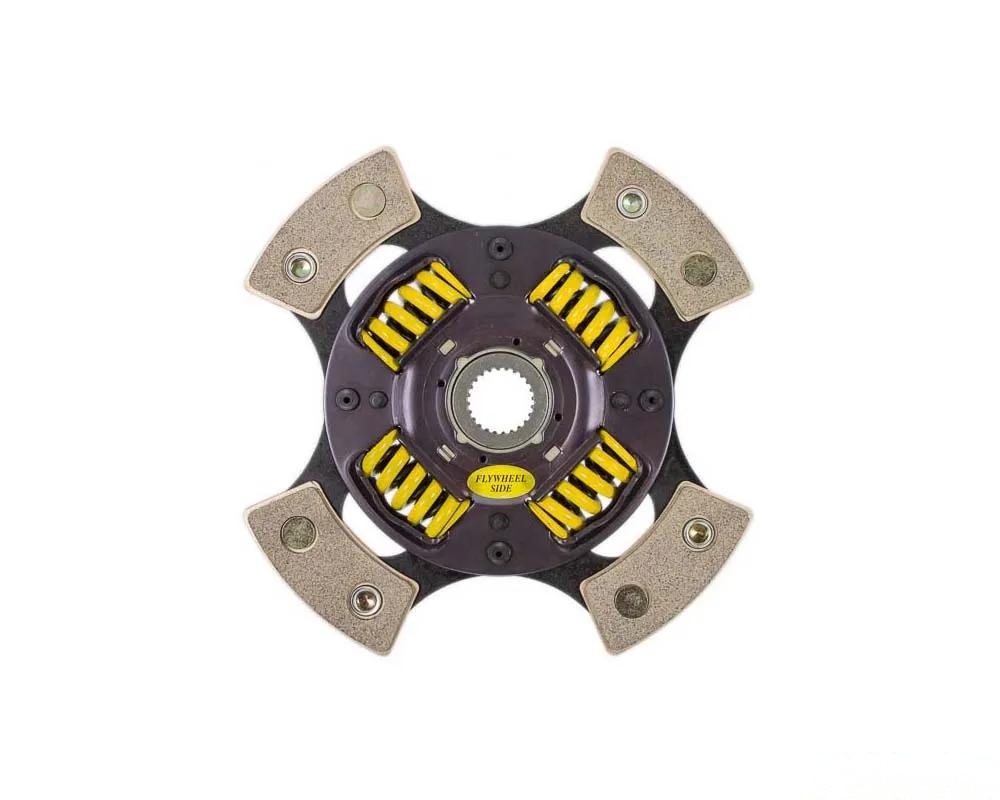

ACT 4214510 4 Pad Sprung Race Disc

The ACT 4214510 4 Pad Sprung Race Disc is engineered for high-performance applications, featuring a robust design that enhances shifting characteristics while maintaining durability. This race disc utilizes premium ceramic friction materials, which are well-known for their ability to withstand high temperatures and deliver consistent performance under demanding conditions.

Key Features

• Aggressive engagement that allows for quicker shifts, resulting in improved acceleration.
• Constructed with high-quality ceramic materials for moderate wear rates and exceptional heat tolerance.
• Incorporates heavy-duty torsional dampening springs that exceed standard specifications, ensuring reliability and performance.
• Designed with wraparound spring windows and thicker retainer stampings for increased strength and reduced stress concentrations.
• Recommended for race applications only, with a high burst strength capable of holding 28% more torque than typical organic materials.

Specifications

• Diameter: 8.4 inches (214 mm)
• Spline Quantity: 24
• Grade Type: Performance
• Disc Material: Ceramic
• Splined Bore Diameter: 1.03125 inches
• Disc Type: Sprung
• Product Weight: 3.3 lbs
• SFI Rating: 1.1

Installation Notes

For detailed installation instructions, please refer to the installation guide.

Confirmed Fitment

The ACT 4214510 4 Pad Sprung Race Disc is compatible with the following models:

• Acura ILX (2013-2015)
• Acura RSX (2002-2006)
• Acura TSX (2004-2014)
• Honda Accord (2003-2015)
• Honda Civic (2001-2015)
