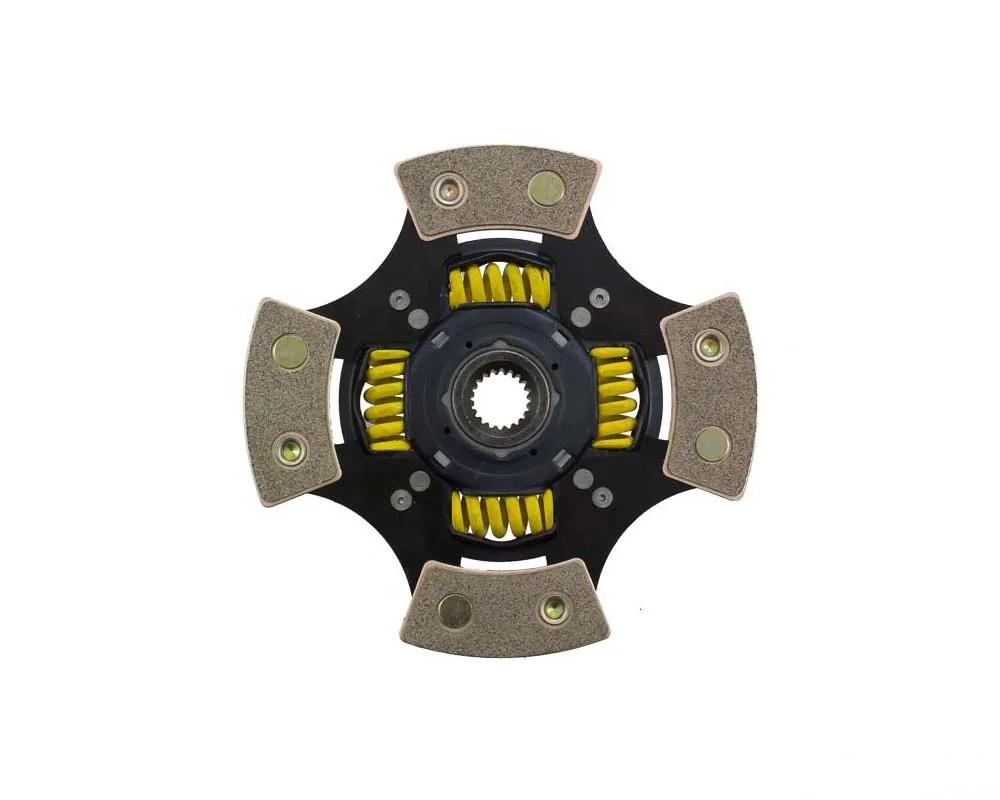

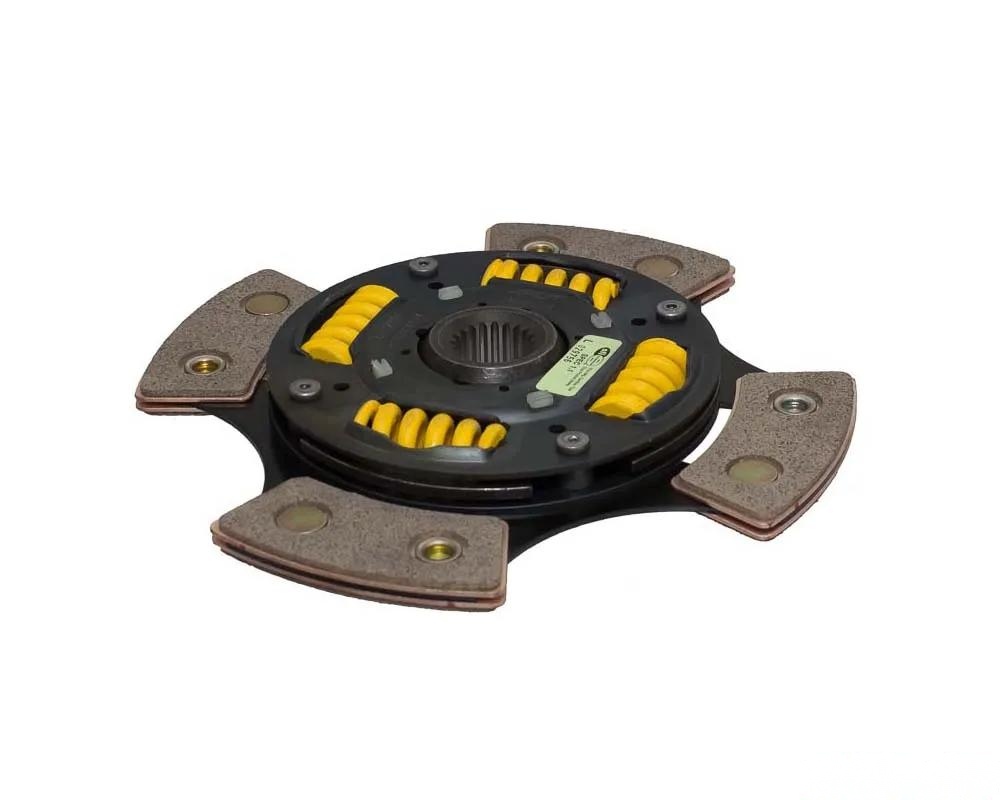

Advanced Clutch 4 Pad Sprung Race Disc 4190104 is a 4-pad spring-centered race disc made with high quality, ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The race disc features a heat-treated spring steel drive plate and is well-suited for the smaller disc sizes in smaller engines.

Install Instructions:

• For Instructions CLICK HERE

• Aggressive engagement, quick shifts, OE to mild gear rattle
• Premium ceramic friction materials provide moderate wear rates and high heat tolerance
• Utilizes wraparound spring windows, thicker retainer stampings and a heat-treated, spring steel drive plate to provide support, reduce stress concentrations and increase strength and reliability
• Recommended for race use only
• High burst strength and holds 28% more torque than typical organic materials

• Diameter: 7.5 in
• Diameter: 190 mm
• Spline Quantity: 20
• Grade Type: Performance
• Friction Plate: No
• Disc Material: Ceramic
• Splined Bore Diameter: 0.875 in
• Disc Type: Sprung
• Product Weight (lbs.): 2.6
• SFI: 1.1
