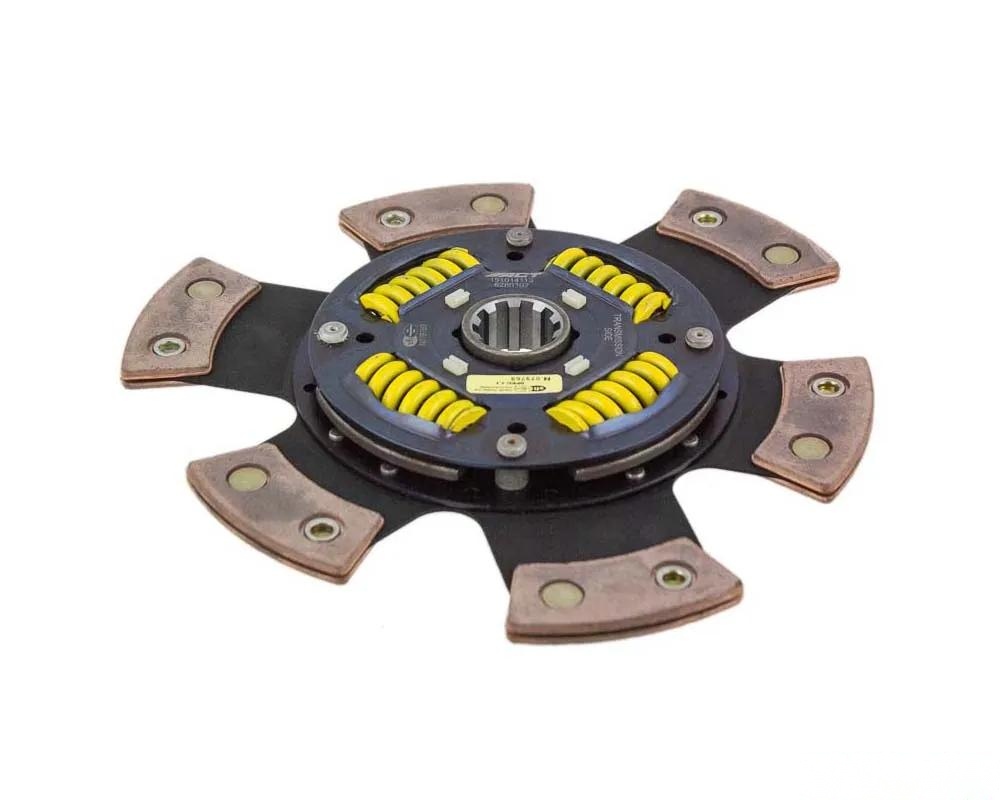

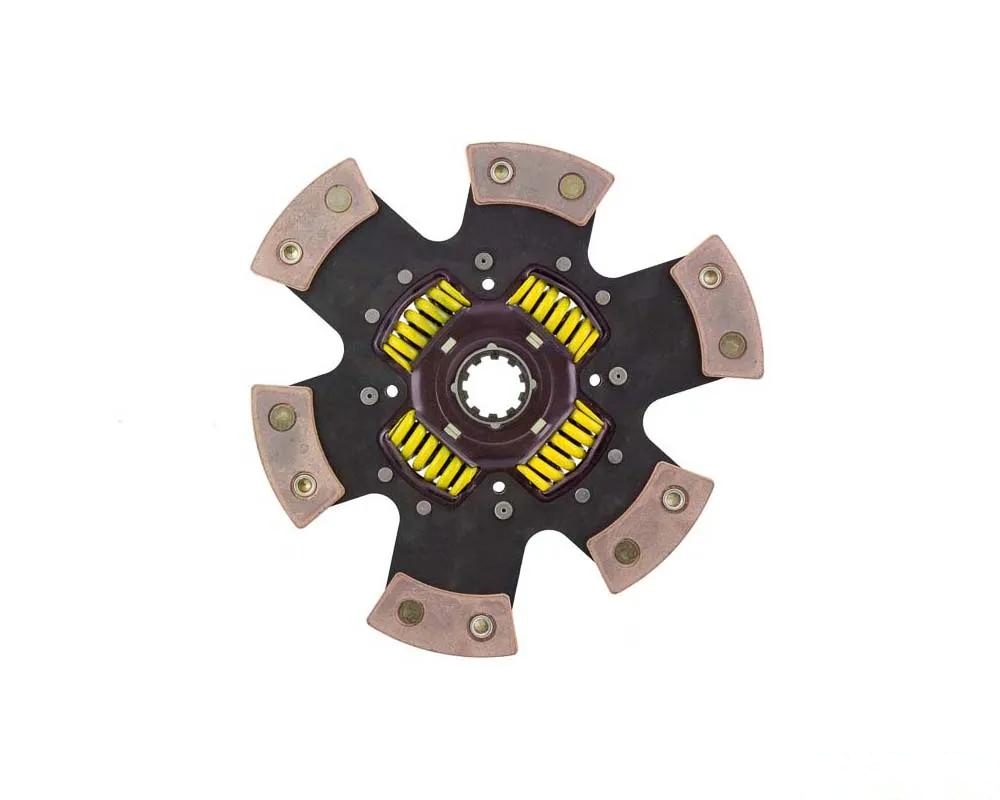

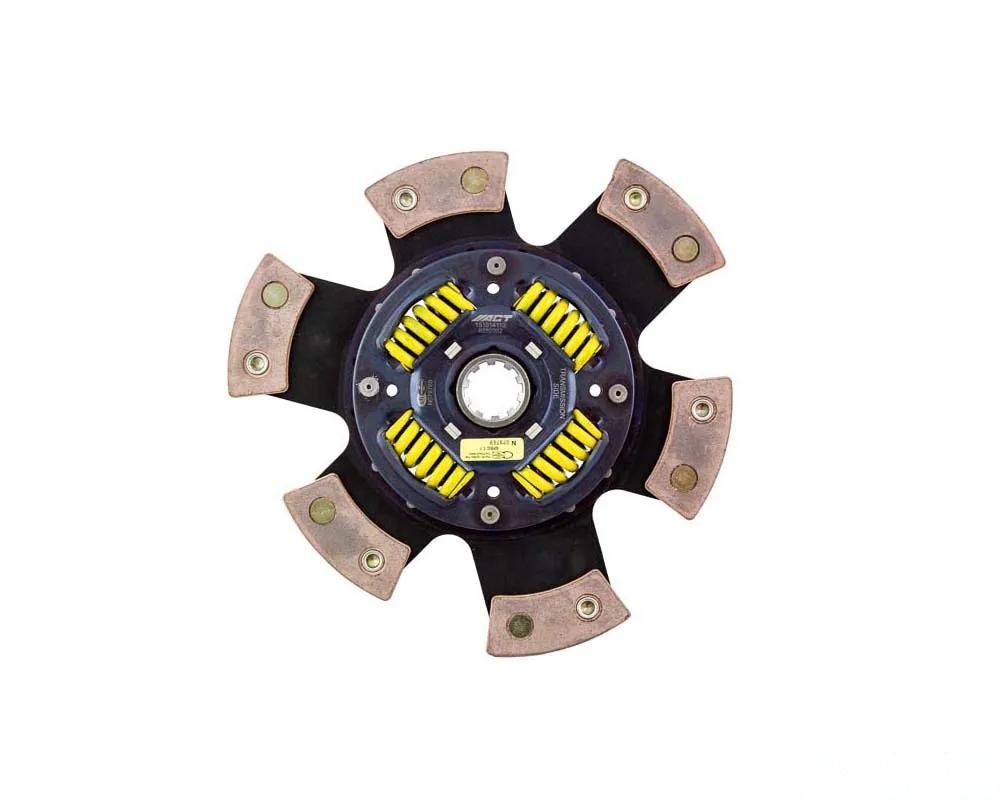

ACT 6 Pad Sprung Race Disc 6280302

The ACT 6 Pad Sprung Race Disc 6280302 is engineered for serious performance applications, featuring a robust design that enhances both engagement and durability. Constructed with high-quality ceramic friction materials, this disc is tailored for aggressive driving scenarios, providing a harsher engagement for quicker shifts. The heavy-duty torsional dampening springs are designed to withstand higher loads, ensuring that they outperform standard springs in both strength and reliability.

Key Features

• Aggressive engagement for rapid gear shifts with mild to moderate gear rattle.
• Crafted from premium ceramic friction materials, offering moderate wear rates and exceptional heat tolerance.
• Incorporates wraparound spring windows, thicker retainer stampings, and a heat-treated, spring steel drive plate to enhance structural integrity and reduce stress concentrations.
• Optimized for high horsepower applications, suitable for both street and race use.
• Delivers high burst strength, capable of holding 28% more torque compared to typical organic materials.

Specifications

• Diameter: 11 in (280 mm)
• Spline Quantity: 10
• Grade Type: Performance
• Friction Plate: No
• Disc Material: Ceramic
• Splined Bore Diameter: 1.125 in
• Disc Type: Sprung
• Product Weight: 4.9 lbs
• SFI Rating: 1.1

Installation Notes

For detailed installation instructions, refer to the installation guide.

Confirmed Fitment

• Buick Skylark 1961-1972
• Chevrolet Bel Air 1965-1975
• Chevrolet Biscayne 1965-1975
• Chevrolet C/K 10 1969-1987
• Chevrolet C/K 1500 1988-2000
• Chevrolet C/K 20 1969-1987
• Chevrolet C/K 2500 1988-2000
• Chevrolet C/K 30 1969-1987
• Chevrolet C1500 1994-1995
• Chevrolet Camaro 1967-1981
• Chevrolet Caprice 1966-1976
• Chevrolet Chevelle 1964-1977
• Chevrolet Corvette 1966-1970
• Chevrolet El Camino 1964-1972
• Chevrolet Impala 1965-1976
• Chevrolet K5 Blazer 1975-1986
• Chevrolet Nova 1969-1979
• GMC C/K 15 1969-1978
• GMC C/K 1500 1979-1986 & 1988-2000
• GMC C/K 25 1969-1978
• GMC C/K 2500 1979-1986 & 1988-2000
• GMC C/K 35 1973-1978
• GMC C/K 3500 1979-1986 & 1988-2002
• Jeep Wrangler 2007-2020
• Oldsmobile Cutlass 1965-1973
• Oldsmobile Omega 1973
• Pontiac Bonneville 1959-1960 & 1967-1970
• Pontiac Catalina 1959-1960 & 1970
• Pontiac GTO 1970
