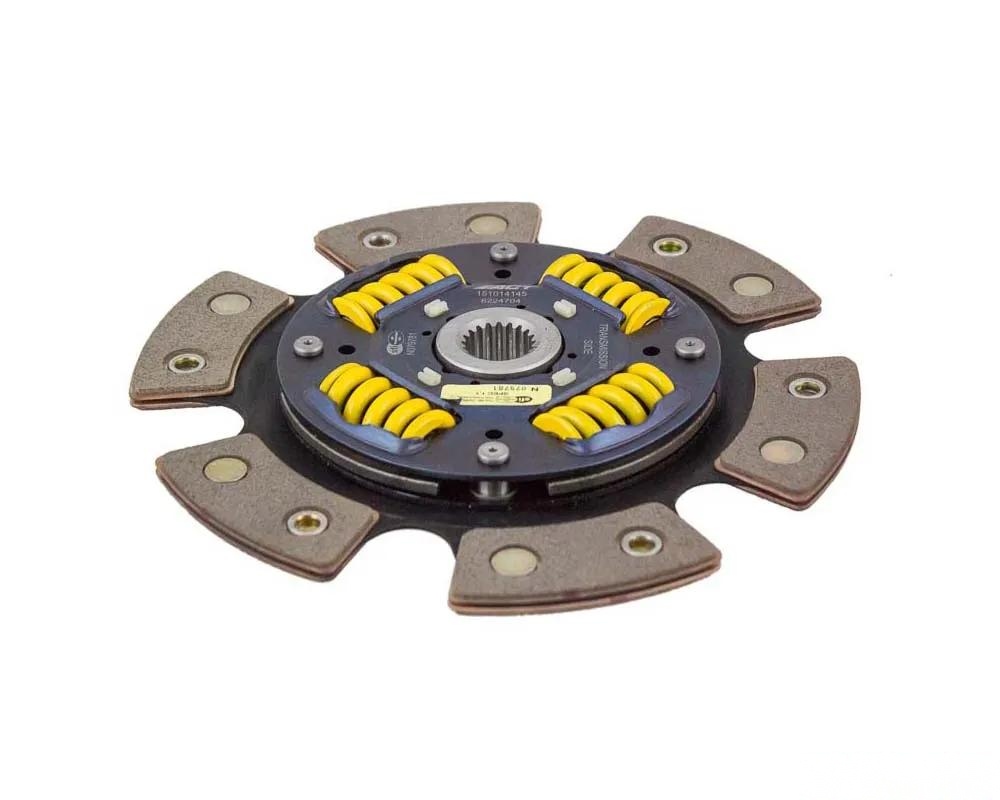

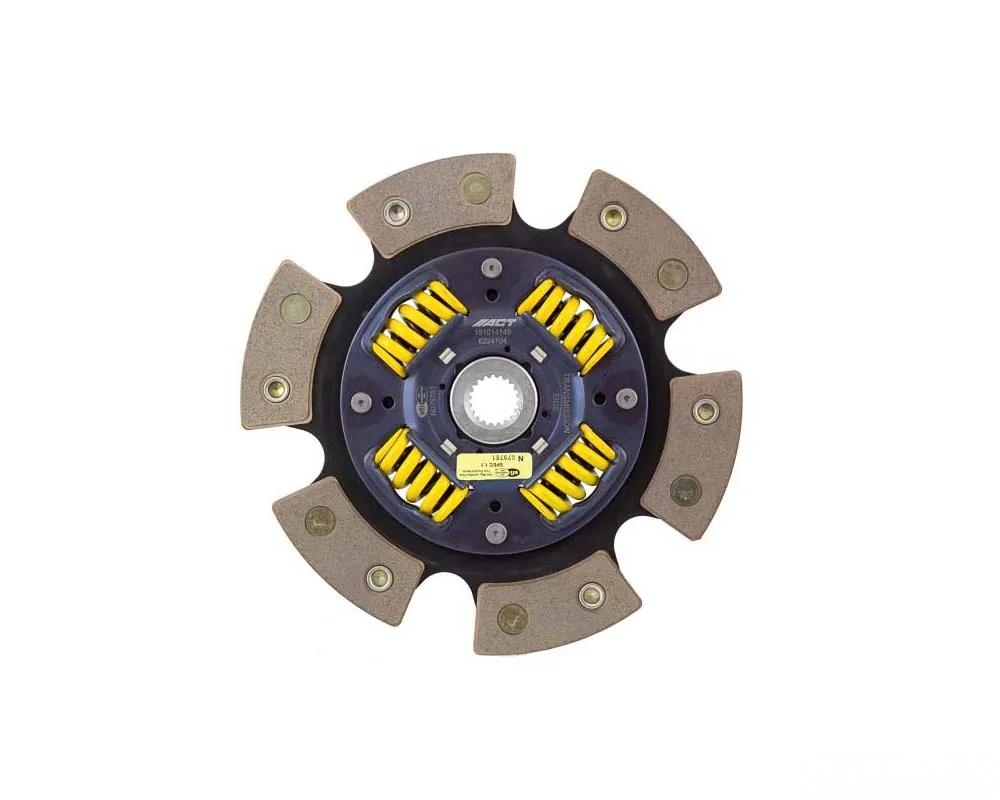

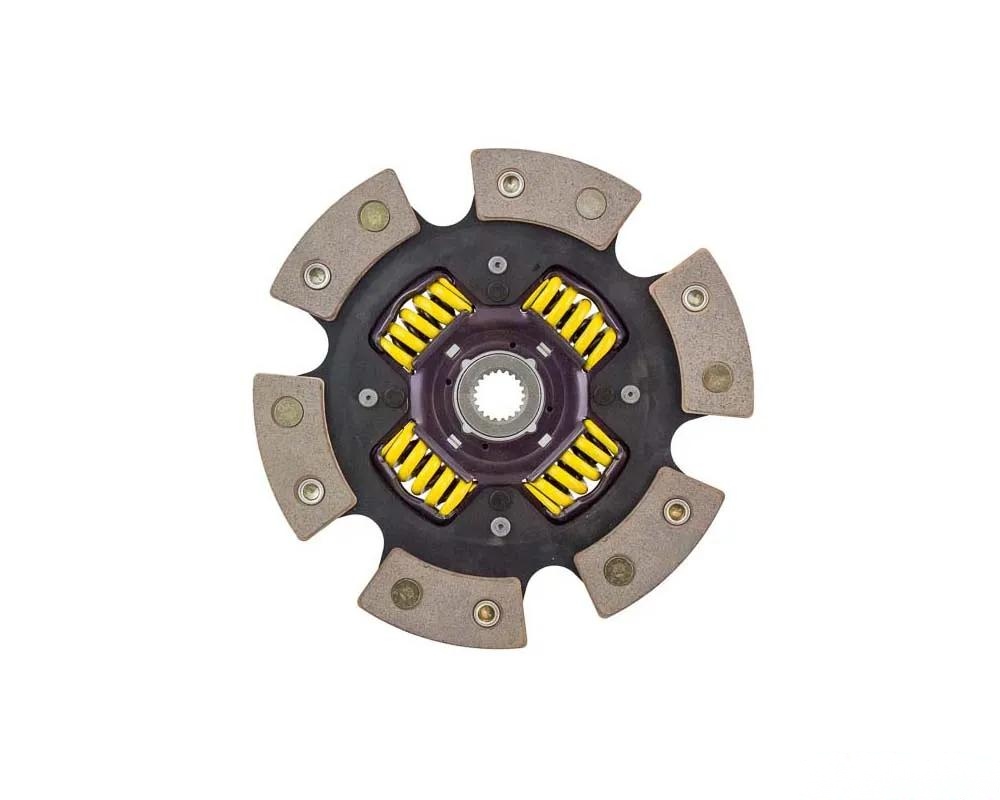

ACT 6 Pad Sprung Race Disc 6224704

The ACT 6 Pad Sprung Race Disc 6224704 is engineered for high-performance applications, featuring a robust design that enhances both engagement and shifting capabilities. This race disc incorporates six pads made from premium ceramic friction materials, ensuring superior heat tolerance and moderate wear rates, making it ideal for high horsepower street or race use.

Key Features

• Aggressive engagement with rapid shifting response, suitable for competitive driving.
• Constructed from high-quality ceramic materials, providing durability and heat resistance.
• Incorporates heavy-duty torsional dampening springs, designed to exceed standard spring strength for enhanced reliability.
• Utilizes wraparound spring windows and thicker retainer stampings to reduce stress concentrations and improve overall strength.
• Offers a high burst strength, capable of holding up to 28% more torque compared to typical organic materials.

Specifications

• Diameter: 8.8 in (224 mm)
• Spline Quantity: 20
• Disc Material: Ceramic
• Splined Bore Diameter: 0.875 in
• Disc Type: Sprung
• Product Weight: 3.9 lbs
• SFI Rating: 1.1

Installation Notes

For detailed installation instructions, refer to the following link: Installation Instructions.

Fitment

The ACT 6 Pad Sprung Race Disc 6224704 is compatible with the following vehicles:

• Chrysler Sebring (2003-2004)
• Dodge Stealth (1991-1996)
• Eagle Summit (1992-1994 & 1996)
• Eagle Talon (1991-1998)
• Mitsubishi 3000GT (1991-1999)
• Mitsubishi Eclipse (1990-2005)
• Mitsubishi Expo (1992-1995)
• Mitsubishi Galant (1991-1992 & 1994-1998)
• Mitsubishi Lancer (2008-2017)
• Plymouth Colt (1992-1994)
• Plymouth Laser (1990-1994)
