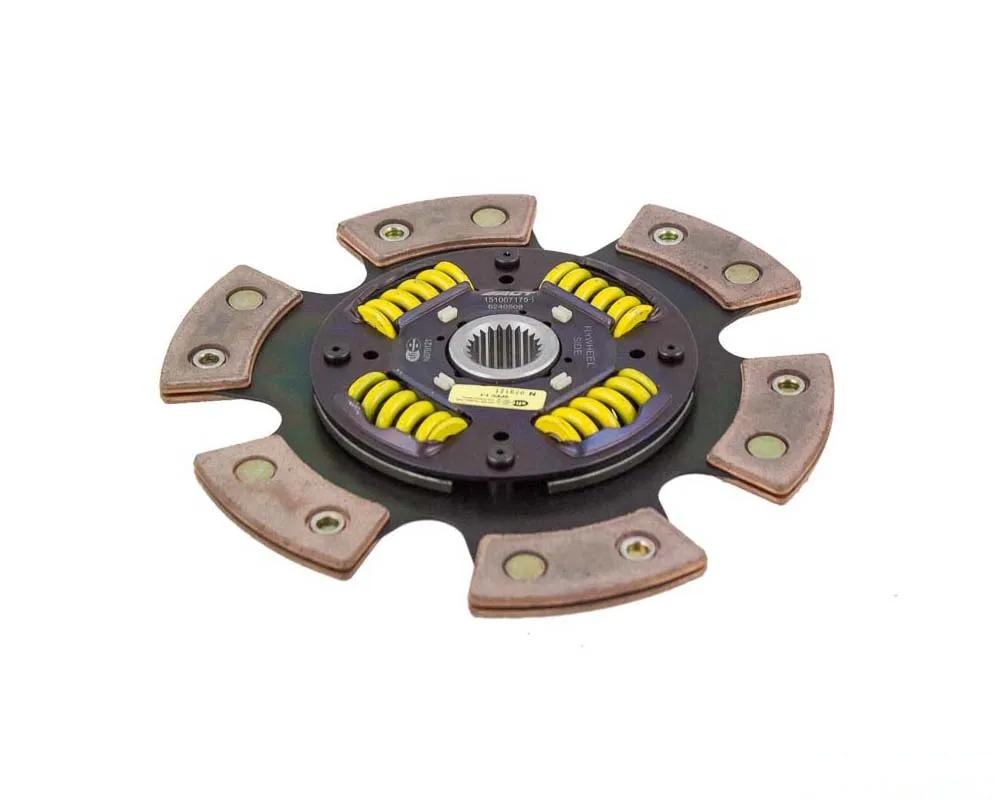

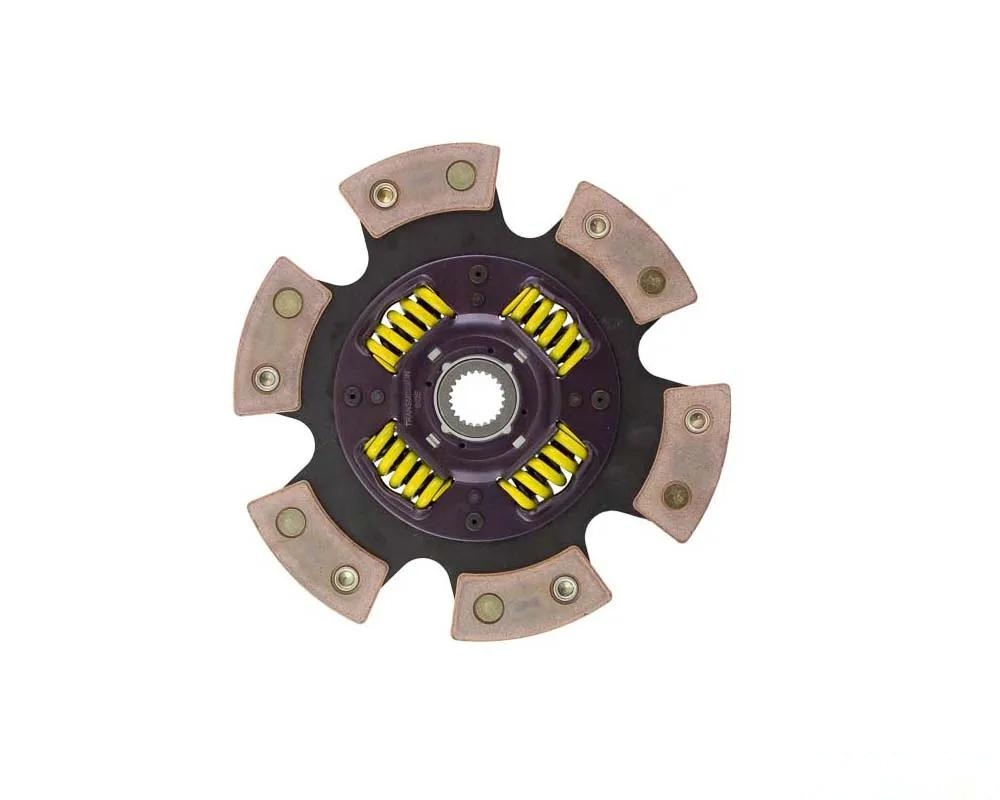

ACT 6 Pad Sprung Race Disc 6240508-1

The ACT 6 Pad Sprung Race Disc 6240508-1 is engineered for performance-driven applications, featuring a robust design that enhances shifting dynamics. This race disc incorporates six pads made from high-quality ceramic friction materials, providing superior heat tolerance and moderate wear rates, making it ideal for high horsepower street and race use.

Key Features

• Aggressive engagement for quicker shifts, accompanied by mild to moderate gear rattle.
• Constructed with premium ceramic friction materials for durability and heat resistance.
• Utilizes wraparound spring windows and thicker retainer stampings to enhance strength and reliability.
• High burst strength, capable of holding 28% more torque than standard organic materials.

Specifications

• Diameter: 9.4 in (240 mm)
• Spline Quantity: 23
• Grade Type: Performance
• Disc Material: Ceramic
• Splined Bore Diameter: 1 in
• Disc Type: Sprung
• Weight: 3.8 lbs
• SFI Rating: 1.1

Installation Notes

• This disc must be used in conjunction with an ACT pressure plate and flywheel (not included).
• For detailed installation instructions, CLICK HERE.

Confirmed Fitment

• Dodge Caliber: 2007-2012
• Ford Focus: 2012-2020
