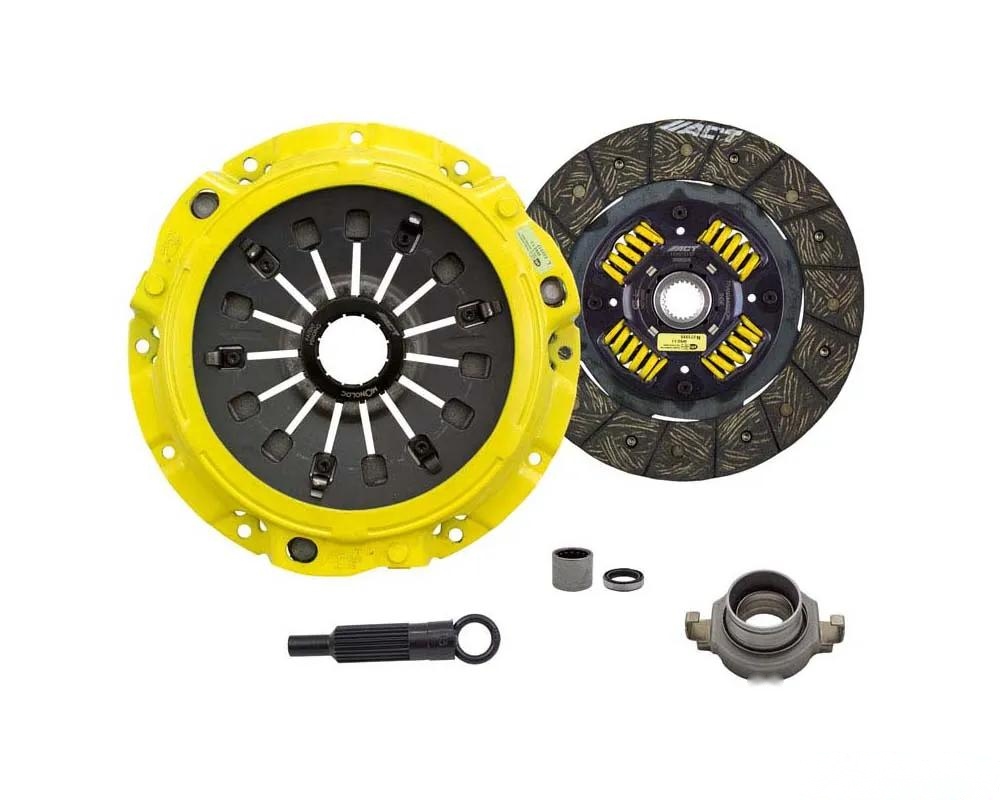

ACT ZX6-HDSS Heavy Duty Clutch Kit

The ACT ZX6-HDSS kit is engineered for those who demand a reliable and robust clutch system. This kit includes ACT's Heavy Duty pressure plate and a performance street disc, designed to enhance your driving experience whether on the street or the track.

Key Features

• Heavy Duty Pressure Plate: Utilizes an exclusive diaphragm design to increase clamp load, reducing deflection and maximizing clutch life.
• Four-Stage Heat Treatment: Each diaphragm undergoes a rigorous heat-treating process, ensuring exceptional performance under stress.
• Precision Cover Stampings: These provide enhanced rigidity and consistency during operation.
• Performance Street Disc: Made from premium organic materials with high copper content for superior heat transfer and durability, featuring a steel-backed lining for increased burst strength.
• Reduced Marcel: This design promotes quicker shift action, complementing the performance of the ACT pressure plate.
• Monoloc Design: A one-piece, direct replacement for the standard two-piece wedge collar, providing uniform loading on the bearing and pressure plate for optimal alignment.

Specifications

• Clutch Disc Diameter: 9.4 inches (240 mm)
• Torque Capacity: 400 ft/lbs
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 inch
• Disc Type: Sprung
• Product Weight: 16.8 lbs
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes

Installation Notes

For detailed installation instructions, please refer to the installation guide.

Fitment

This clutch kit is confirmed to fit the following model:

• Mazda RX-7 (1993-1995)

The ACT ZX6-HDSS kit is a solid choice for those looking to enhance their vehicle's clutch performance, providing a balance of durability and responsiveness for both street and performance applications.
