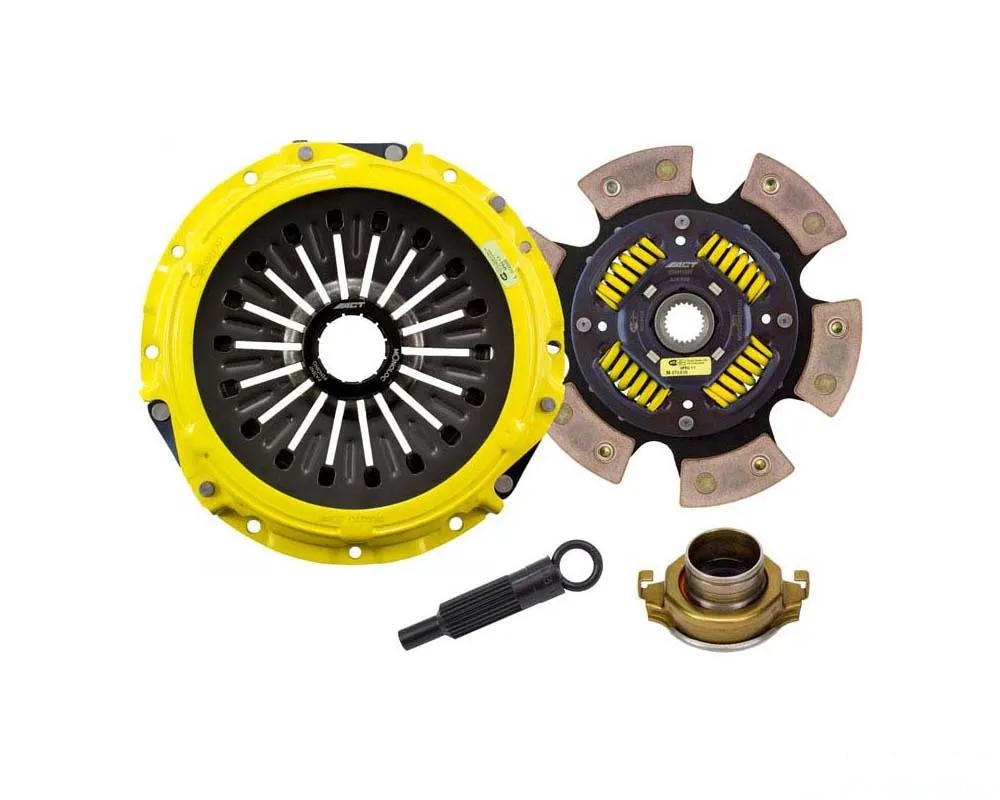

ACT ME3-HDG6 Heavy Duty Clutch Kit

The ACT ME3-HDG6 is engineered for performance-driven applications, featuring a Heavy Duty pressure plate that significantly enhances clamp load and durability. This pressure plate utilizes an exclusive diaphragm design, which not only minimizes deflection but also extends clutch life, making it an ideal choice for both street and track use.

Construction and Design

Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring exceptional performance under demanding conditions. The precision cover stampings of the pressure plate enhance rigidity and consistency, providing a solid foundation for reliable operation. The kit includes a 6-pad spring-centered race disc designed to dampen torsional vibrations effectively, which is crucial for maintaining performance during aggressive driving.

Key Features

• Light to moderate pedal effort with aggressive engagement ensures quick shifts.
• Moderate friction life, extended by ACT's unique diaphragm design, improves the longevity of the release mechanism.
• Engineered using select ceramic friction materials for high heat tolerance, optimizing performance for both street and racing applications.
• 100% clamp load tested and dynamically balanced for reliability at high RPMs.
• Includes ACT's patented Monoloc, which provides uniform loading on the bearing and pressure plate for optimal alignment.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Torque Capacity: 678 ft/lbs
• Product Weight: 17.7 lbs
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Alignment Tool Included: Yes

Installation Notes

For detailed installation instructions, CLICK HERE.

Fitment

The ACT ME3-HDG6 is confirmed to fit the following models:

• Mitsubishi Evolution X (2008-2015)
• Mitsubishi Lancer (2008-2015)

This kit is recommended for high horsepower applications, providing a significant upgrade over stock components. The Monoloc design, made from hardened Chrome-moly steel, enhances durability and ensures years of reliable service.
