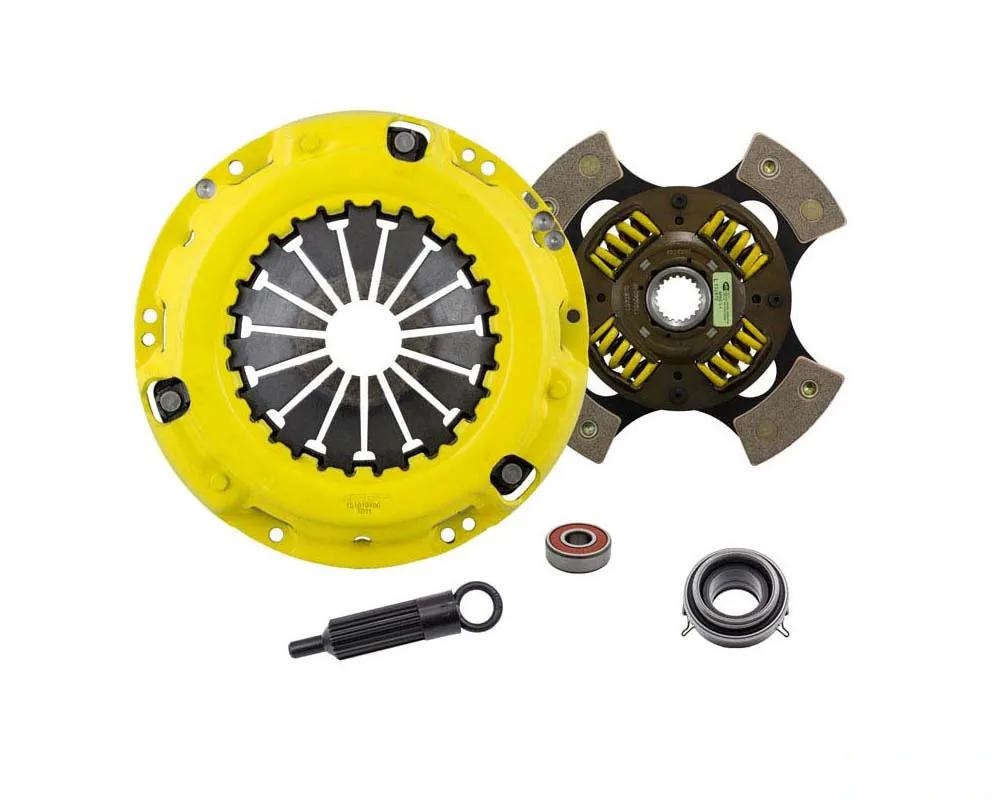

ACT T42-HDG4 Heavy Duty 4 Pad Race Clutch Kit

The ACT T42-HDG4 is engineered for serious performance, featuring a Heavy Duty pressure plate combined with a spring-centered 4 pad race disc. This kit is designed to handle high torque applications, making it ideal for off-road racing and demanding driving conditions.

Key Features

• Light to moderate pedal effort with aggressive engagement, providing confidence during hard shifts.
• Moderate friction life, enhanced by ACT's exclusive diaphragm design, which increases durability and heat capacity.
• Constructed with premium ceramic friction materials, ensuring high heat tolerance and maximum performance under stress.
• 100% clamp load tested and dynamically balanced for reliable high RPM operation.
• Induction hardened key areas for extended product life.

Specifications

• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Product Weight: 14.8 lbs
• Torque Capacity: 355 ft/lbs
• Torque Capacity Over OE: 0.89

Installation Notes

For installation instructions, refer to the official guide here.

Fitment

The ACT T42-HDG4 is compatible with the following models:

• Toyota 4Runner (1990-1996)
• Toyota Pickup (1989-1995)
