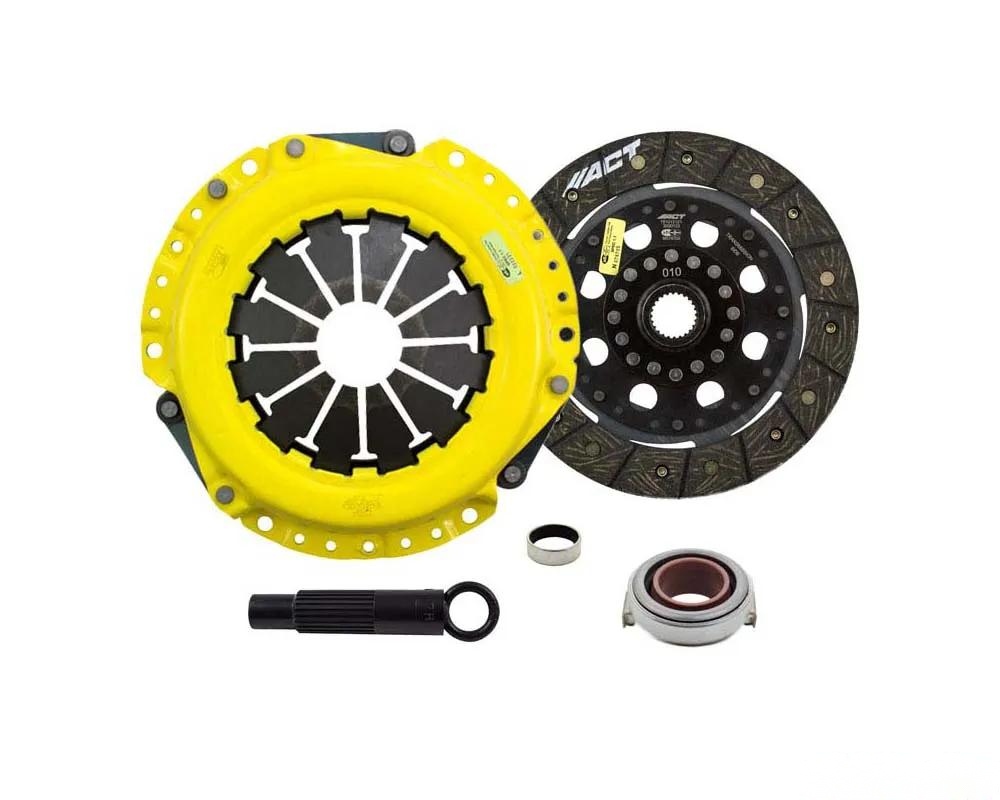

ACT HD/Perf Street Rigid Kit AR1-HDSD

The ACT HD/Perf Street Rigid Kit AR1-HDSD is engineered for those who demand reliability and performance in their clutch system. This kit features ACT's renowned Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to enhance clamp load while minimizing deflection. This results in improved clutch longevity and performance under high-stress conditions.

Key Features

• Light to moderate pedal effort, ensuring smooth and positive engagement.
• Extended friction life attributed to ACT's unique diaphragm design, though increased spline wear may occur.
• Constructed with premium organic friction materials, providing excellent heat tolerance and reduced fade.
• Suitable for both street and race applications, balancing performance with daily drivability.
• Each component is 100% clamp load tested and dynamically computer balanced for reliable high RPM operation.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.4 in (214 mm)
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No
• Product Weight: 10.4 lbs
• Torque Capacity: 255 ft/lbs
• Torque Capacity Over OE: 0.35

Installation Notes

For detailed installation instructions, CLICK HERE.

Fitment

Confirmed fitment for the following models:

• Acura RSX 2002-2006
• Acura TSX 2004-2008
• Honda Civic 2002-2011
