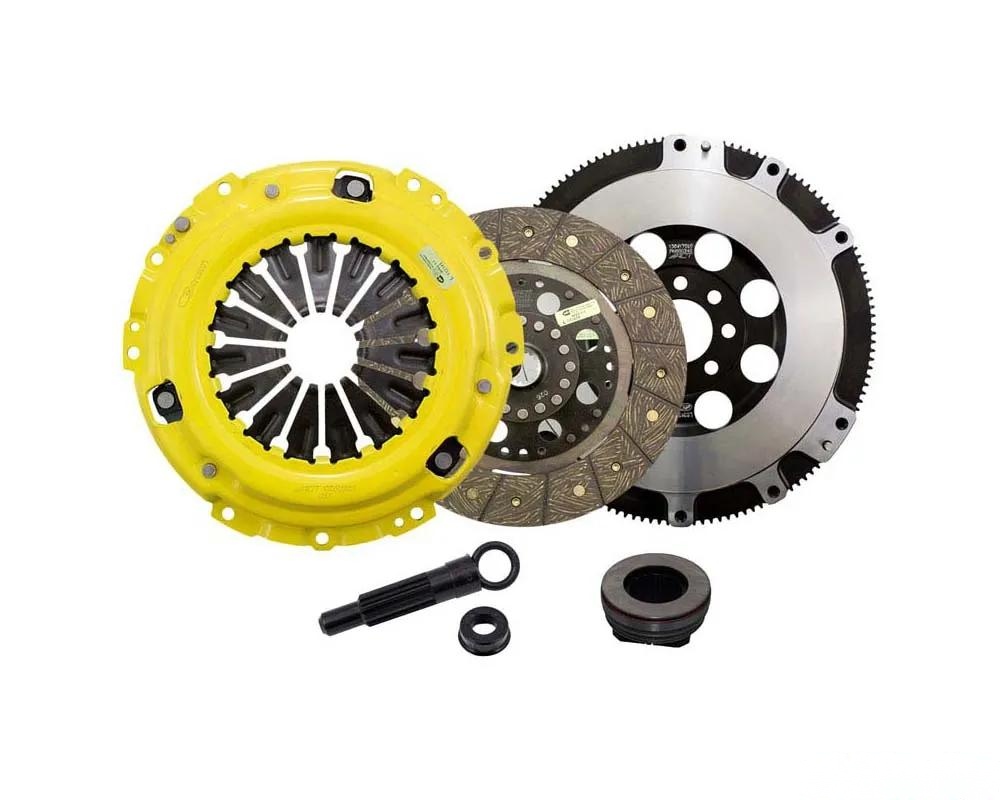

ACT DN4-HDSD Heavy Duty/Performance Street Rigid Kit

The ACT DN4-HDSD kit is engineered for those seeking a robust clutch solution that excels in both street and race applications. This kit features ACT’s renowned Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to enhance clamp load, minimize deflection, and extend clutch longevity. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring superior performance under demanding conditions.

Key Features

• Light to moderate pedal effort with smooth engagement, although increased gear rattle may be noted.
• Longer friction life attributed to ACT's unique diaphragm design, though the rigid structure may lead to increased spline wear.
• Constructed with premium organic friction materials that offer enhanced heat tolerance and reduced fade during operation.
• Ideal for both street and race use, providing a balance of manageability and performance.
• Each unit is 100% clamp load tested and dynamically computer balanced for reliable high RPM operation.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Organic
• Input Spline Quantity: 17
• Input Shaft Diameter: 0.9375 in
• Alignment Tool Included: Yes
• Disc Type Sprung Solid: Solid
• Pressure Plate Bolts Included: Yes
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No
• Flywheel Type: Streetlite
• Product Weight: 25.2 lbs
• Torque Capacity: 465 ft/lbs
• Torque Capacity Over OE: 0.47

Installation Notes

• This conversion kit replaces the modular clutch and requires the use of the included ACT flywheel.
• Pressure plate bolts are included (M8-1.25 x 16mm).

Fitment

Compatible with:

• Dodge Neon (2000-2005)

For installation instructions, click here.
