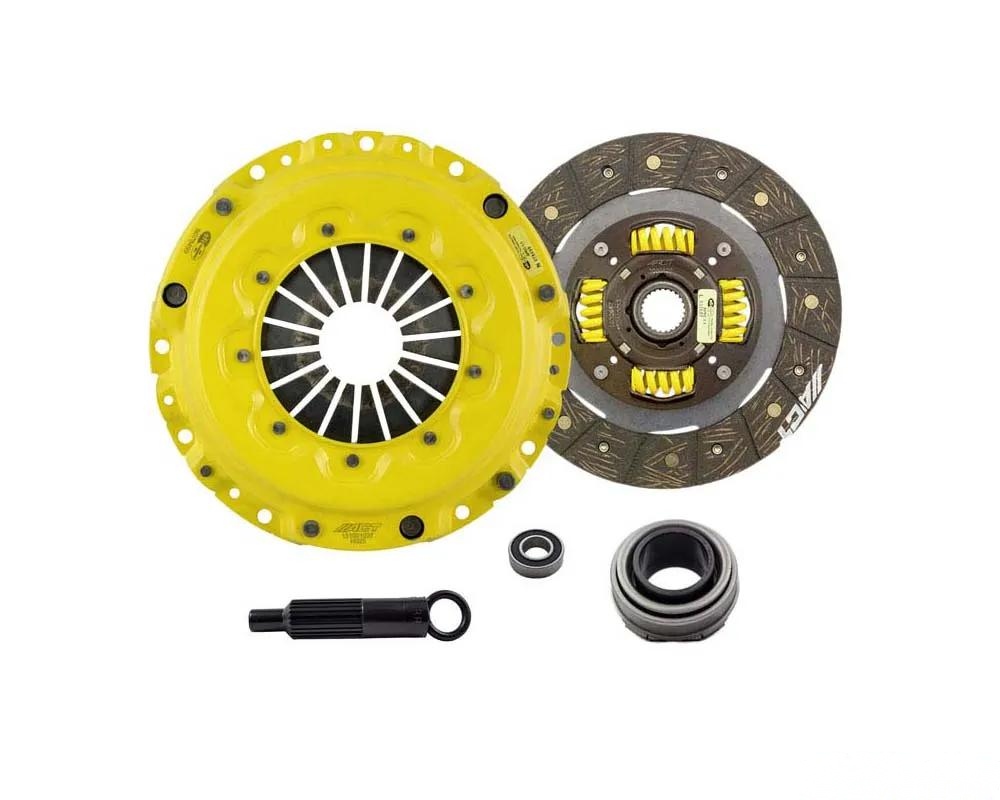

ACT AI3-HDSS Heavy Duty/Performance Street Sprung Kit

The ACT AI3-HDSS kit is engineered for those who demand reliability and performance from their clutch system. This kit combines ACT's most popular Heavy Duty pressure plate with a high-quality street disc, delivering a robust solution for both daily driving and spirited use.

Key Features of the AI3-HDSS Kit

• Light to moderate pedal effort, ensuring smooth engagement with minimal effort.
• Longer friction life, thanks to ACT's exclusive diaphragm design which enhances clamp load and reduces deflection.
• Constructed with premium organic materials featuring high copper content for superior heat transfer and durability.
• Designed for both street and race applications, providing versatility for various driving styles.
• Each unit is 100% clamp load tested and dynamically balanced for reliable performance at high RPMs.

Specifications

• Clutch Disc Diameter: 8.7 in (220 mm)
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Torque Capacity: 245 ft/lbs (0.31 ft/lbs over OE)
• Product Weight: 12.5 lbs
• Disc Material: Organic
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Alignment Tool Included: Yes
• Grease Included: Yes

Installation Notes

For detailed installation instructions, refer to the ACT General Installation Instructions.

Compatible Vehicles

This kit is confirmed to fit the following model:

• Acura Integra: 1992-1993

With its focus on durability and performance, the ACT AI3-HDSS kit is a solid choice for those looking to upgrade their clutch system without compromising on drivability.
