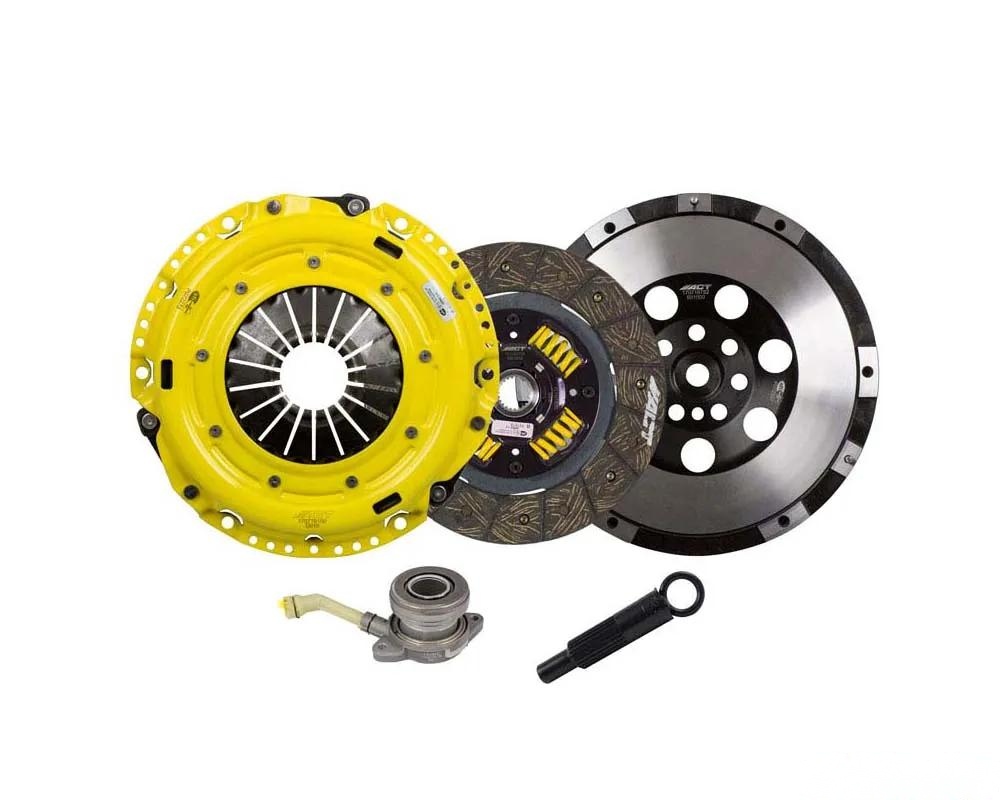

ACT HD/Perf Street Sprung Kit DC2-HDSS

The ACT HD/Perf Street Sprung Kit DC2-HDSS is engineered for those who demand reliability and performance from their clutch system. This kit incorporates ACT's Heavy Duty pressure plate, renowned for its unique diaphragm design that enhances clamp load, minimizes deflection, and extends clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring consistent performance under stress.

Key Features

• Light to moderate pedal effort with smooth engagement, transitioning from OE to mild gear rattle.
• Longer friction life, thanks to ACT's exclusive diaphragm design.
• Engineered with premium organic friction materials for improved heat tolerance and reduced fade.
• Suitable for both street and race applications, providing versatility for various driving conditions.
• Each unit is 100% clamp load tested and dynamically balanced for reliable high RPM performance.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Organic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Pressure Plate Type: Heavy Duty
• Torque Capacity: 410 ft/lbs (0.25 over OE)
• Product Weight: 28.1 lbs
• Flywheel Type: Streetlite (included in kit)
• Release Bearing Included: Yes
• Grease Included: Yes
• Alignment Tool Included: Yes

Installation Notes

This is a conversion kit that requires the use of an ACT single-mass flywheel, which is included. The kit comes with pressure plate bolts (M8-1.25 x 16mm) for secure installation. For detailed installation instructions, click here.

Fitment

This kit is confirmed to fit:

• Dodge Caliber (2008-2009)
• Dodge Caliber SRT-4 (2008-2009)
