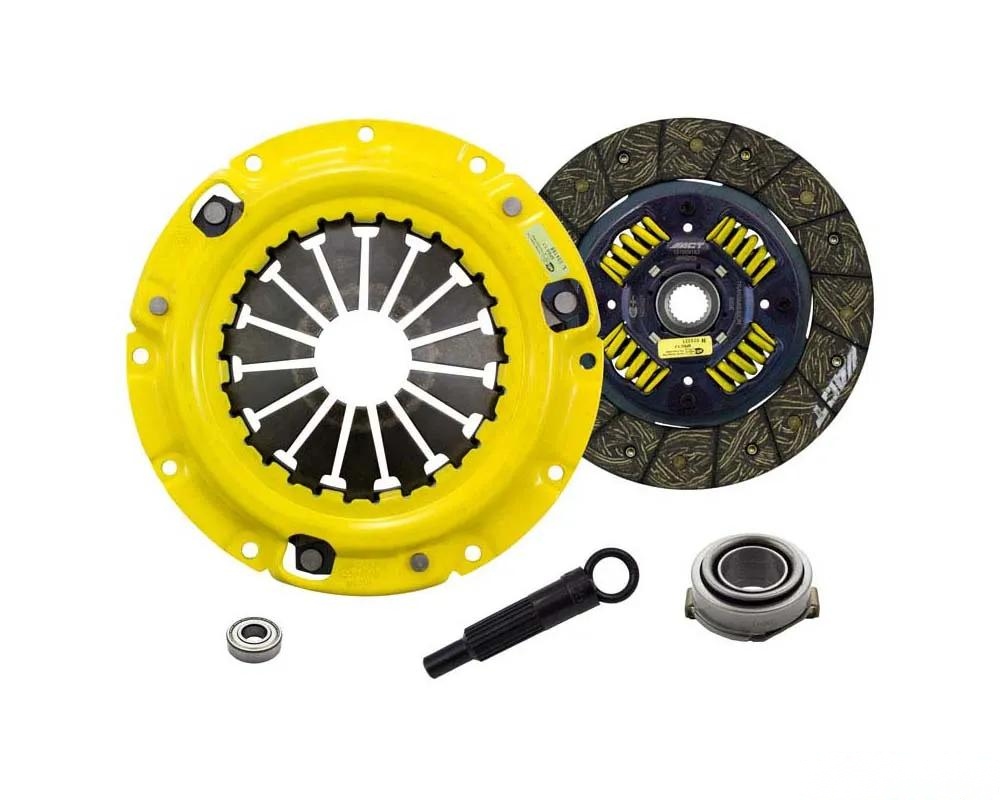

ACT Z62-HDSS Heavy Duty/Performance Street Sprung Kit

The ACT Z62-HDSS kit is engineered for those who demand reliability and performance from their clutch system. This kit features ACT's renowned Heavy Duty pressure plate paired with a high-performance street disc, making it an ideal choice for both spirited driving and daily use.

Pressure Plate Design

ACT's Heavy Duty pressure plates utilize an exclusive diaphragm design that enhances clamp load while minimizing deflection. This results in improved clutch life and consistent performance under various driving conditions. Each diaphragm undergoes a rigorous four-stage heat treatment process, ensuring exceptional durability and performance longevity. The precision stamping of the pressure plate cover adds rigidity, further enhancing its overall reliability.

Performance Street Disc

The Performance Street disc included in the Z62-HDSS kit is crafted from premium organic materials with a high copper content. This composition not only facilitates better heat transfer but also contributes to greater burst strength and durability. With reduced marcel, this disc allows for quicker shift action, making it a perfect match for the Heavy Duty pressure plate. The combination of these components ensures enhanced strength and reliability during operation.

Installation Notes

For detailed installation instructions, refer to the following link: CLICK HERE.

Specifications

• Clutch Disc Diameter: 8.8 in (224 mm)
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Torque Capacity: 280 ft/lbs
• Product Weight: 12.8 lbs
• Disc Type: Sprung
• Grease Included: Yes
• Alignment Tool Included: Yes
• Pilot Bearing Included: Yes

Fitment

The ACT Z62-HDSS kit is compatible with the following vehicles:

• Ford Probe (1993-1997)
• Mazda 323 (1987-1989)
• Mazda 626 (1983-1987 & 1993-2002)
• Mazda B-Series (1986-1993)
• Mazda MX-3 (1992-1995)
• Mazda MX-6 (1993-1997)
• Mercury Capri (1991-1994)

This kit is designed for those looking for a blend of performance and reliability, suitable for both street and light race applications.
