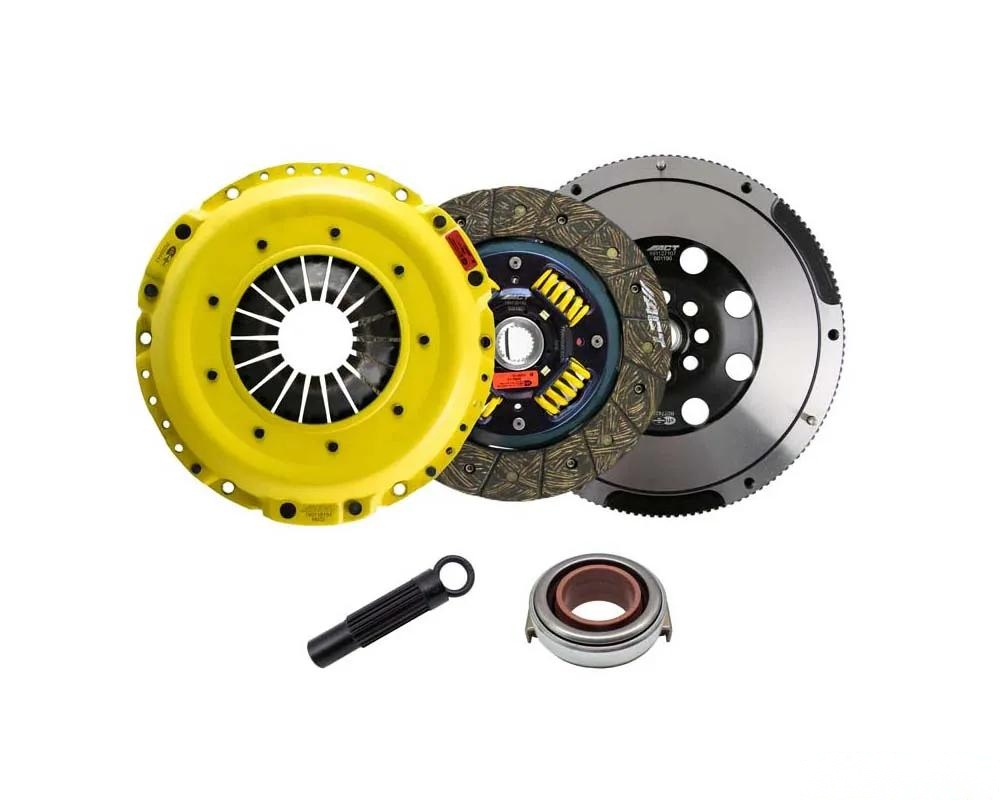

ACT HC10-HDSS Heavy Duty/Performance Street Sprung Kit

The ACT HC10-HDSS kit combines advanced engineering with high-quality materials to deliver a robust clutch solution for serious driving enthusiasts. This kit features ACT's renowned Heavy Duty pressure plate, designed to enhance clamp load while minimizing deflection, thereby extending clutch life. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring consistent performance under demanding conditions.

Pressure Plate and Disc Features

Precision cover stampings on the pressure plate provide added rigidity and reliability. The Performance Street disc is crafted from premium organic materials, incorporating high copper content for superior heat transfer. With a steel-backed lining, this disc offers enhanced burst strength and durability. The reduced marcel design allows for quicker shift action, making it an ideal pairing with the Heavy Duty pressure plate.

Installation Notes

• For detailed installation instructions, CLICK HERE.

Key Features

• Light to moderate pedal effort with smooth engagement
• Extended friction life due to ACT's exclusive diaphragm design
• Engineered with high-quality organic friction materials for heat tolerance and reduced fade
• Suitable for both street and race applications
• 100% clamp load tested and dynamically balanced for high RPM reliability

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.0325 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: Yes
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: Yes
• Flywheel Type: Streetlite
• Product Weight: 33.1 lbs
• Torque Capacity: 363 ft/lbs
• Torque Capacity Over OE: 0.63

Additional Notes

• This is a conversion kit that requires the use of the included ACT flywheel. Flywheel bolts (M12-1.0 x 25mm) and pressure plate bolts (M8-1.25 x 16mm) are included in the kit.

Confirmed Fitment

• Acura Integra (2023-2024)
• Honda Accord (2018-2020)
• Honda Civic (2016-2024)
