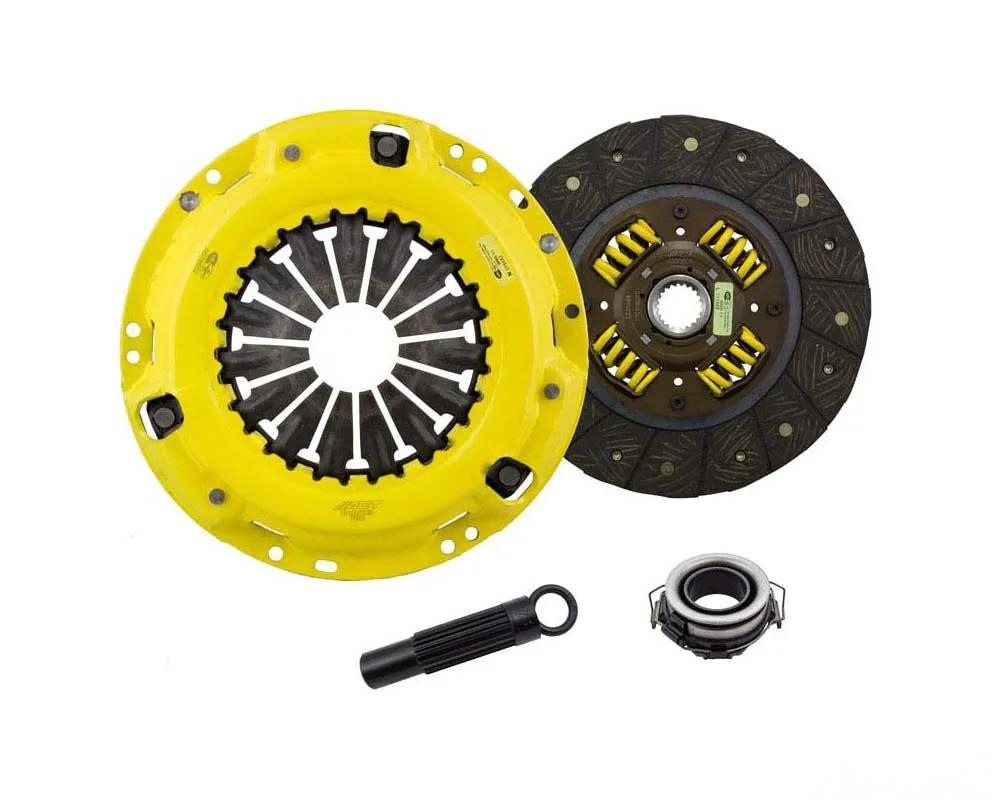

ACT TY4-HDSS Heavy Duty/Performance Street Sprung Kit

The ACT TY4-HDSS kit combines advanced engineering with robust materials to deliver a reliable clutch solution for performance-oriented driving. This kit features ACT's renowned Heavy Duty pressure plate and a performance street disc, designed for those who demand durability and responsiveness from their drivetrain components.

Pressure Plate Design

The Heavy Duty pressure plate utilizes an exclusive diaphragm design that enhances clamp load while minimizing deflection. This results in improved clutch life and performance under stress. Each diaphragm undergoes a rigorous four-stage heat treatment process, ensuring it can withstand high temperatures and maintain its integrity during aggressive driving conditions. Precision cover stampings contribute to the plate's rigidity and consistency, making it a reliable choice for both street and light track use.

Performance Street Disc

The performance street disc is constructed from premium organic materials, featuring a high copper content that improves heat transfer. This disc is equipped with a steel-backed lining for enhanced burst strength and durability. With a reduced marcel, the disc allows for quicker shift action, complementing the pressure plate's design for a seamless driving experience.

Installation Notes

For detailed installation instructions, refer to the installation guide.

Key Features

• Light to moderate pedal effort with smooth engagement
• Extended friction life due to ACT's diaphragm design
• Engineered for high heat tolerance and reduced fade
• Suitable for both street and race applications
• 100% clamp load tested with dynamic computer balancing for high RPM reliability

Specifications

• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Organic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Product Weight: 14.7 lbs
• Torque Capacity: 390 ft/lbs
• Torque Capacity Over OE: 0.32
• Grease Included: Yes
• Alignment Tool Included: Yes
• Release Bearing Included: Yes
• Pressure Plate Type: Heavy Duty
• Clutch Master Cylinder Included: No
• Flywheel Included: No
• Pilot Bushing Included: No
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No

Confirmed Fitment

• Lexus ES300 (1992-1996)
• Toyota Camry (1991-2006)
• Toyota Solara (1999-2003)
