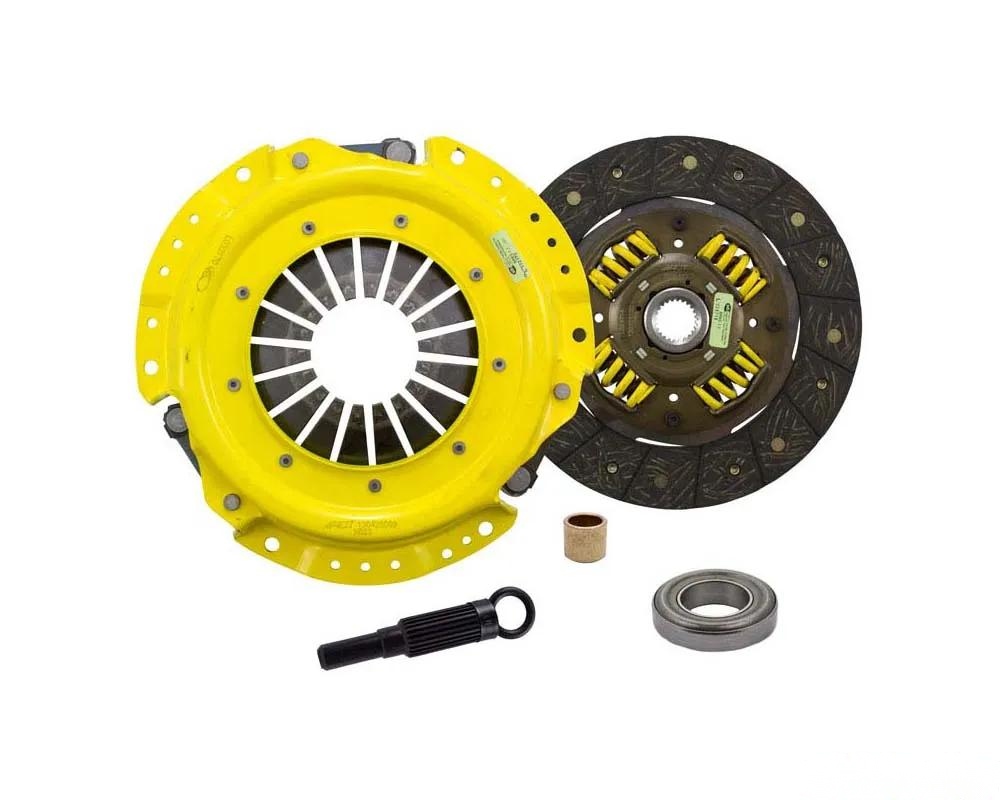

ACT NX1-HDSS Heavy Duty/Performance Street Sprung Kit

The ACT NX1-HDSS kit is engineered for those seeking a robust clutch solution that balances street performance with durability. It features ACT's renowned Heavy Duty pressure plate and a Performance Street disc, designed specifically for high-demand environments.

Pressure Plate Design

The Heavy Duty pressure plate utilizes an exclusive diaphragm design that enhances clamp load while minimizing deflection, ultimately extending the lifespan of the clutch. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring superior performance under stress. Precision cover stampings add rigidity and consistency, crucial for maintaining performance during aggressive driving.

Performance Street Disc

The Performance Street disc is constructed with premium organic materials that boast a high copper content, optimizing heat transfer and reducing fade during operation. The steel-backed lining increases burst strength and overall durability. With a reduced marcel, this disc allows for quicker shift action, making it an excellent match for the Heavy Duty pressure plate.

Installation Notes

For detailed installation instructions, refer to the installation guide.

Features

• Light to moderate pedal effort with smooth engagement
• Extended friction life due to the exclusive diaphragm design
• Engineered for high heat tolerance and reduced fade
• Suitable for both street and race applications
• 100% clamp load tested for reliability at high RPMs

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Product Weight: 14.6 lbs
• Torque Capacity: 275 ft/lbs
• Torque Capacity Over OE: 0.54

Fitment

The NX1-HDSS is confirmed to fit the following models:

• Nissan 240SX S13 (1989-1990)
• Nissan 240SX S14 (1995-1998)
• Nissan 280Z (1975-1978)
• Nissan 280ZX (1979-1983)
• Nissan 620 (1975-1979)
• Nissan 720 (1985-1986)
• Nissan Axxess (1990)
• Nissan Maxima (1982-1984)
