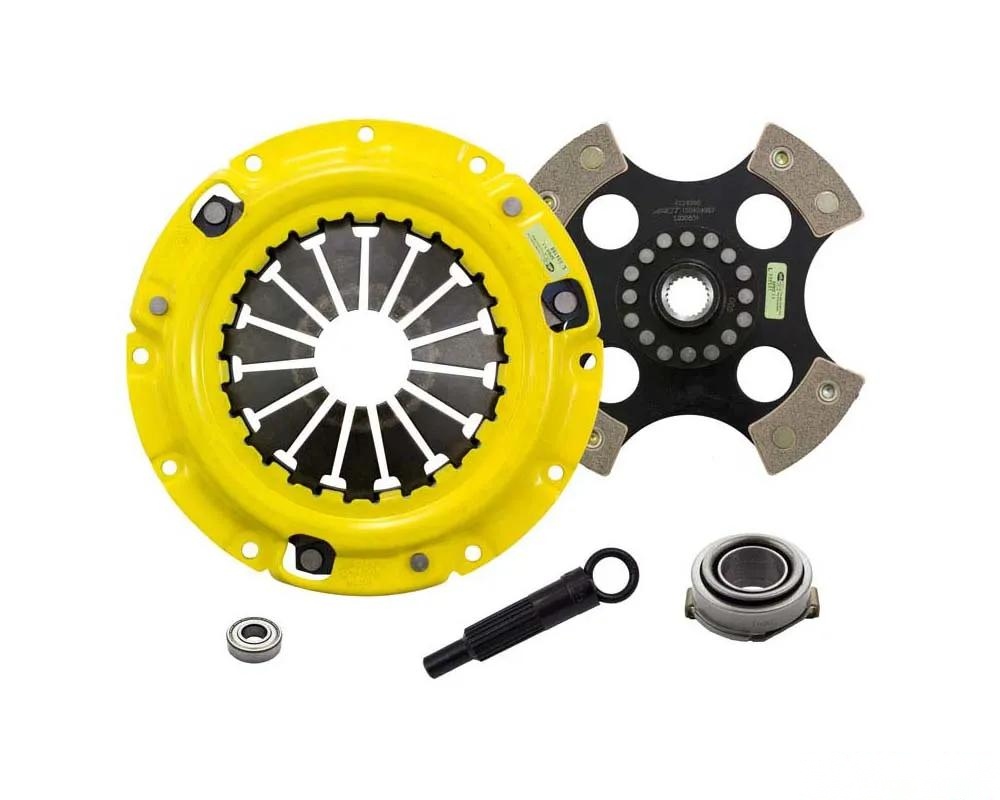

ACT Z62-HDR4 Heavy Duty Clutch Kit

Upgrade your vehicle's performance with the ACT Z62-HDR4 Heavy Duty Clutch Kit. Designed for those who demand more from their ride, this kit features ACT's renowned Heavy Duty pressure plate, known for its exceptional durability and reliability. The exclusive diaphragm design not only increases clamp load but also minimizes deflection, ensuring you get the most out of your clutch life.

Each diaphragm undergoes a meticulous four-stage heat-treating process, which enhances its performance capabilities. The precision cover stampings in the pressure plates contribute to their rigidity and consistency, making them a favorite among enthusiasts.

Customer Feedback

Many users have praised the Z62-HDR4 for its performance on the track. One customer noted, "The engagement is definitely more aggressive, but the shifts are incredibly quick. It’s a game changer for my racing setup!" Another user mentioned, "Installation was straightforward, and the pedal feel is just right for my needs." This clutch kit has garnered a reputation for transforming the driving experience for many.

Features & Benefits

• Light to moderate pedal effort with aggressive engagement for improved performance.
• Engineered for moderate friction life, enhanced by ACT's unique diaphragm design.
• Constructed with high-quality ceramic friction materials for maximum heat tolerance.
• Perfect for race applications, designed to handle the demands of high-performance driving.
• Each unit is 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Technical Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 11.3 lbs
• Torque Capacity: 360 ft/lbs
• Torque Capacity Over OE: 0.67

Product Fitment

This clutch kit is compatible with the following vehicles:

• Ford Probe (1993-1997)
• Mazda 323 (1987-1989)
• Mazda 626 (1983-1987 & 1993-2002)
• Mazda B-Series (1986-1993)
• Mazda MX-3 (1992-1995)
• Mazda MX-6 (1993-1997)
• Mercury Capri (1991-1994)

Install Instructions

For detailed installation instructions, please CLICK HERE.
