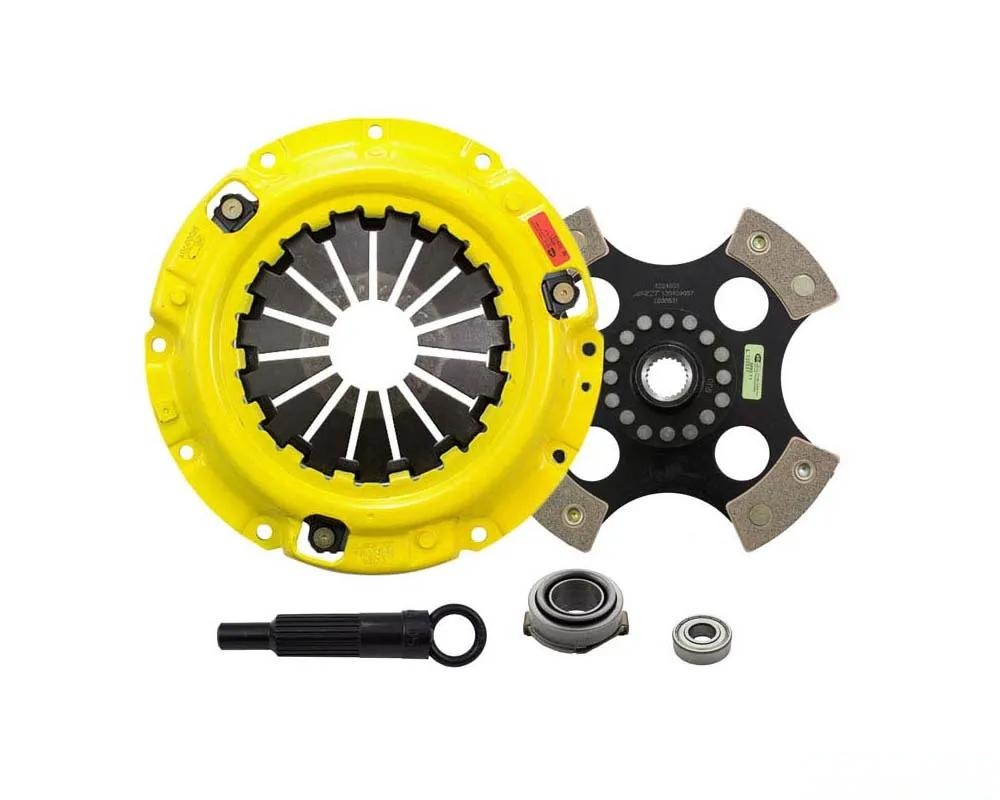

ACT FC2-HDR4 Heavy Duty 4 Pad Clutch Kit

For Ford Ranger owners from 1983 to 1984 looking to enhance their clutch performance, the ACT FC2-HDR4 Heavy Duty 4 Pad Clutch Kit is a prime choice. This kit features ACT's renowned Heavy Duty pressure plate, designed to deliver increased clamp load while minimizing deflection for extended clutch life. The exclusive diaphragm design undergoes a rigorous four-stage heat-treating process, ensuring that it withstands the demands of spirited driving and racing.

Why Choose the ACT FC2-HDR4?

With precision cover stampings, the pressure plate provides exceptional rigidity and consistency. The 4-pad rigid race discs are crafted from high-quality ceramic friction materials, ensuring they can handle the heat and stress of high-performance applications. The chrome-moly hub is heat-treated, offering superior strength and durability. This lightweight, rigid design not only allows for quicker shifts but also ensures a smooth, trouble-free service experience.

While the engagement may feel harsher, the payoff is faster shifting, making this kit particularly well-suited for smaller engine setups. If you're racing or just pushing your Ranger to its limits, this clutch kit is engineered for race use, designed to keep up with your performance upgrades.

Installation Instructions

• For detailed installation instructions, CLICK HERE

Features

• Light to moderate pedal effort with aggressive engagement and increased gear rattle
• Moderate friction life, enhanced by ACT's exclusive diaphragm design; note that the rigid design may increase spline wear
• Carefully engineered and precisely assembled for maximum performance, using select ceramic friction materials for high heat tolerance
• Tested for 100% clamp load and dynamically balanced for reliable high RPM operation

Technical Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 12.4 lbs
• Torque Capacity: 340 ft/lbs
• Torque Capacity Over OE: 0.66

Customer Feedback

A satisfied Ford Ranger owner shared, "After installing the ACT FC2-HDR4 on my 1984 Ranger, the pedal feel improved dramatically. The shifts are quicker and more precise, especially when I'm pushing it hard on the backroads." This feedback highlights the real-world performance benefits of upgrading your clutch with ACT.
