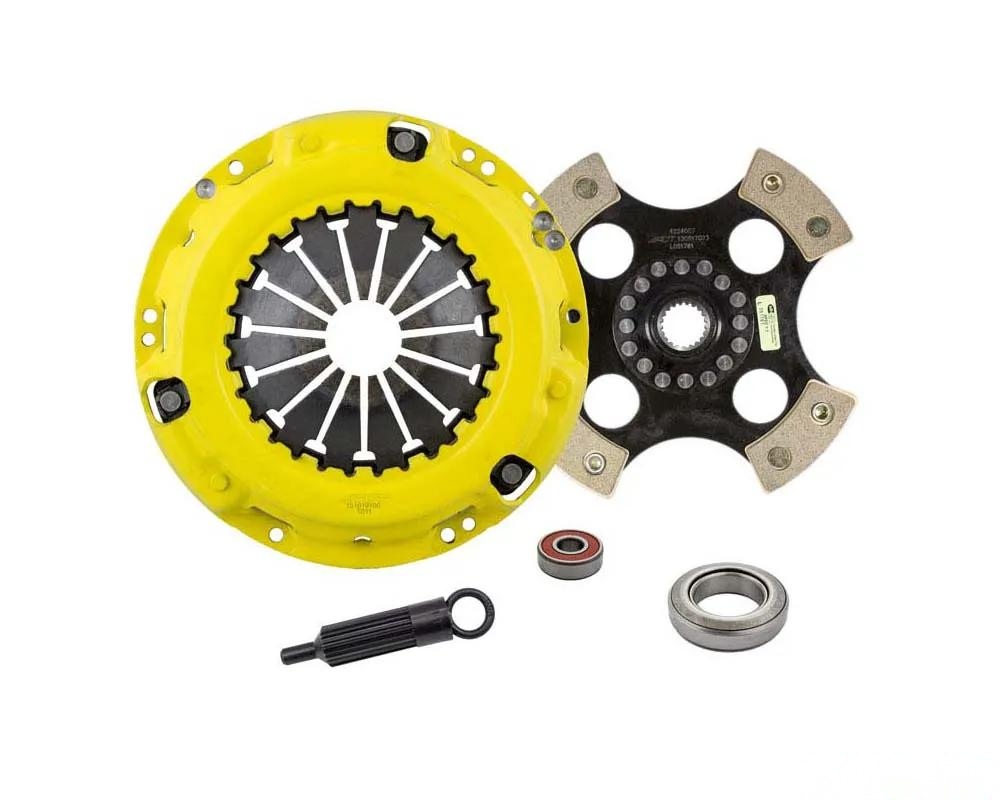

ACT T41-HDR4 Heavy Duty/Race Rigid 4 Pad Kit

The ACT T41-HDR4 Heavy Duty/Race Rigid 4 Pad Kit is engineered for performance-driven applications, making it an optimal choice for those seeking enhanced clutch engagement and durability. This kit features ACT's renowned Heavy Duty pressure plate, designed with an exclusive diaphragm that increases clamp load while minimizing deflection, ensuring maximum clutch longevity.

Key Features

• Light to moderate pedal effort with aggressive engagement, resulting in increased gear rattle.
• Moderate friction life, extended through ACT's proprietary diaphragm design; however, the rigid construction may lead to increased spline wear.
• Constructed with high-quality ceramic friction materials for superior heat resistance and performance.
• Recommended for race use only, ensuring peak performance under demanding conditions.
• Each unit is 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Specifications

• Clutch Disc Diameter: 8.8 inches (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 inches
• Product Weight: 13 lbs
• Torque Capacity: 355 ft/lbs (0.89 over OE)
• Alignment Tool Included: Yes
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes

Installation Notes

For detailed installation instructions, refer to the installation guide.

The ACT T41-HDR4 is meticulously engineered for those who demand precision and reliability from their clutch systems. With its robust design and high-performance materials, this kit is tailored for serious racing applications.
