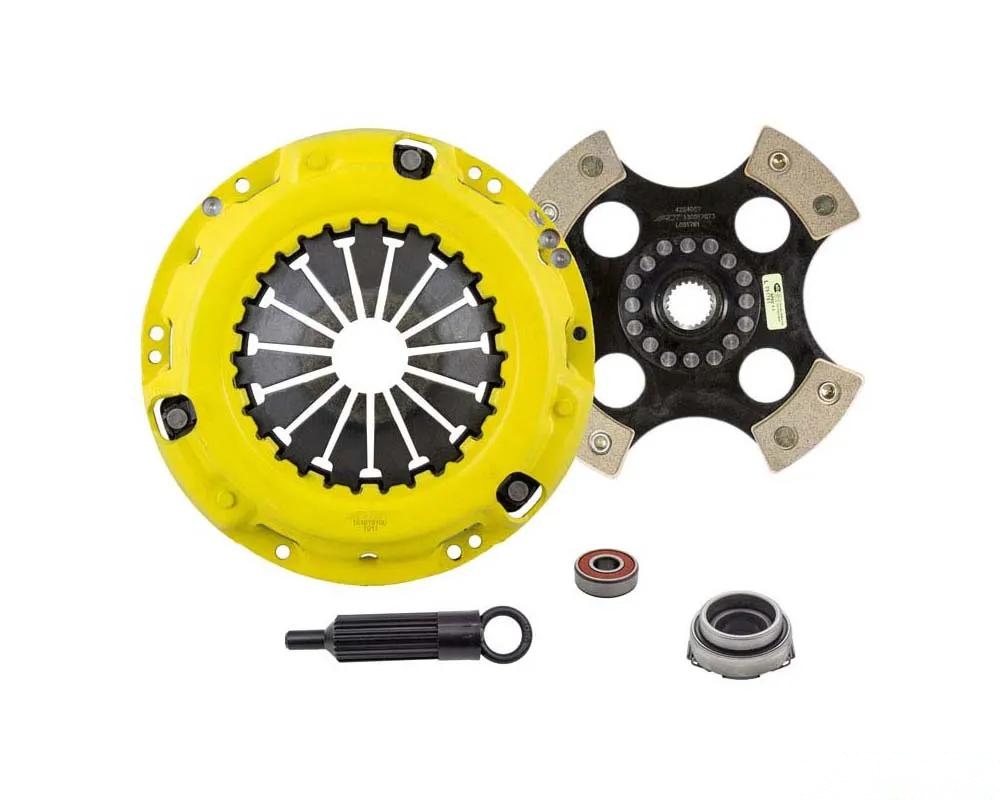

ACT TV1-HDR4 Heavy Duty/Race Rigid 4 Pad Kit

If you're a proud owner of a 1989 Toyota Van and looking to enhance your clutch performance, the ACT TV1-HDR4 Heavy Duty/Race Rigid 4 Pad Kit is a top-tier choice for serious driving enthusiasts. This kit combines advanced engineering with practical performance to give you the edge on the road or track.

Why Choose the ACT TV1-HDR4?

The ACT TV1-HDR4 features one of ACT's most popular Heavy Duty pressure plates, designed specifically to increase clamp load while reducing deflection. This means you get a longer-lasting clutch that can handle the demands of spirited driving. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring it can withstand high stress and heat conditions.

Performance Features

• Light to moderate pedal effort with aggressive engagement, perfect for those who appreciate a more connected driving experience.
• Moderate friction life, extended through ACT's exclusive diaphragm design, although keep in mind that the rigid setup may increase spline wear.
• Precision-engineered and dynamically balanced to ensure smooth operation at high RPMs.
• Constructed with high-quality ceramic friction materials for superior heat tolerance and performance.
• Recommended for race use, making it ideal for track days or competitive driving.

Technical Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Product Weight: 13.4 lbs
• Torque Capacity: 355 ft/lbs
• Torque Capacity Over OE: 0.89

Installation Instructions

Ready to install? For detailed installation instructions, CLICK HERE.

Real-World Feedback

Owners of the 1989 Toyota Van have noted that the ACT TV1-HDR4 kit significantly enhances their driving experience. One user mentioned, "After installing the ACT clutch kit, I noticed a remarkable difference in responsiveness. Shifts are quicker, and the engagement feels more direct, which is exactly what I was looking for in my daily driver." This kind of feedback highlights how the ACT TV1-HDR4 can transform your vehicle's performance.

Upgrade your Toyota Van with the ACT TV1-HDR4 Heavy Duty/Race Rigid 4 Pad Kit and experience the difference in performance and reliability that comes from a well-engineered clutch system.
