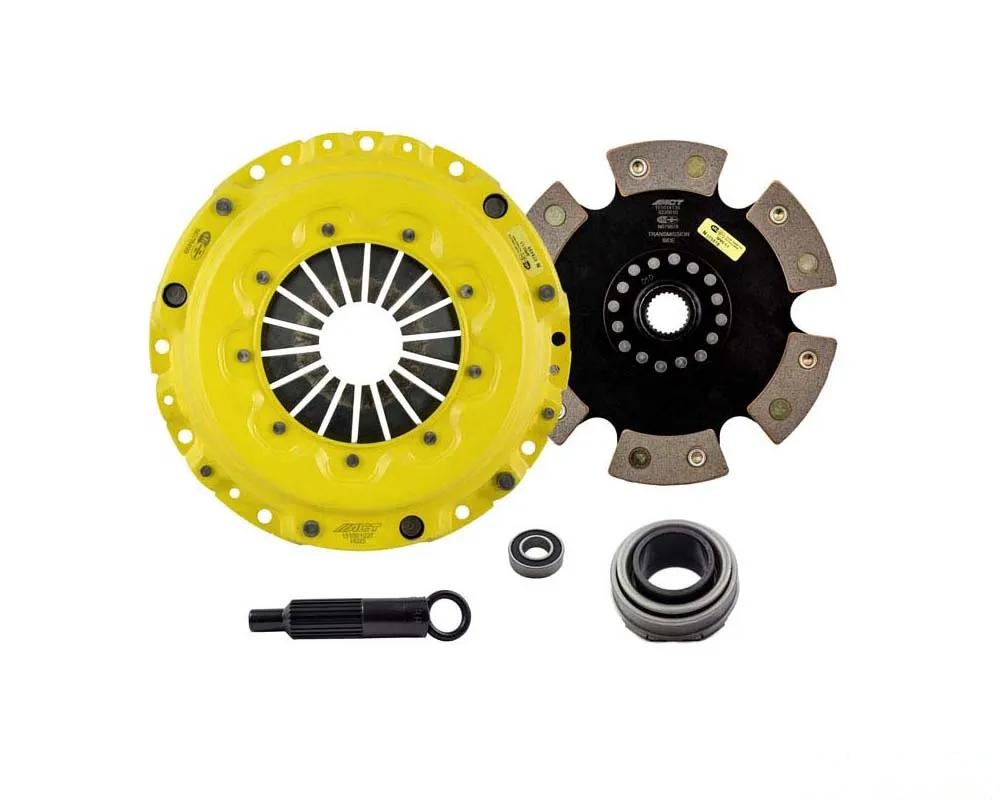

Alright, let’s talk about the ACT HD/Race Rigid 6 Pad Kit, specifically the AI3-HDR6. If you’re serious about your clutch setup, this is a piece of gear you’ll want to consider. This kit packs ACT’s Heavy Duty pressure plate, which is pretty much their bread and butter when it comes to performance. What sets this pressure plate apart is its unique diaphragm design that ramps up the clamp load while keeping deflection to a minimum. That means it’s built to last, giving you a solid clutch life without the usual wear and tear.

Now, let’s get into the nitty-gritty. Each diaphragm goes through a four-stage heat-treating process, which really amps up its performance. You’ll notice the difference when you’re shifting gears. The cover stampings are precision-made, ensuring you get that rigidity and consistency you want when you’re pushing your car to the limit.

The 6-pad rigid race discs are made from high-quality ceramic friction materials. This means they can handle the heat and keep performing when it matters most. The chrome-moly hub is heat-treated too, so you know it’s tough. What does all this mean for you? Well, the lightweight design allows for quicker shifts, making your driving experience smoother and more responsive. Just a heads up, the engagement is on the harsher side, but that’s part of the deal if you want faster shifts.

This kit is really designed for race use, so if you’re hitting the track, it’s a solid choice. Just keep in mind that the 6-pad design is better suited for larger clutch sizes since it can absorb more heat. You can expect a bit of increased gear rattle, but that’s just the nature of a performance setup.

Install Instructions:

• For Instructions CLICK HERE

Features:

• Light to moderate pedal effort, with an aggressive engagement and increased gear rattle.
• Moderate friction life, but extended thanks to ACT's diaphragm design—just be aware it might increase spline wear over time.
• Engineered with precision and balanced for smooth high RPM reliability, using select ceramic materials for high heat tolerance.
• Best suited for race applications only—this isn’t your daily driver’s clutch.
• Each unit is 100% clamp load tested to ensure it can handle the demands of high performance.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.7 in (220 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 12.4 lbs
• Torque Capacity: 310 ft/lbs
• Torque Capacity Over OE: 0.68

Products Fitment:
Acura Integra 1992-1993 AI3-HDR6 ACT HD/Race Rigid 6 Pad Kit.
