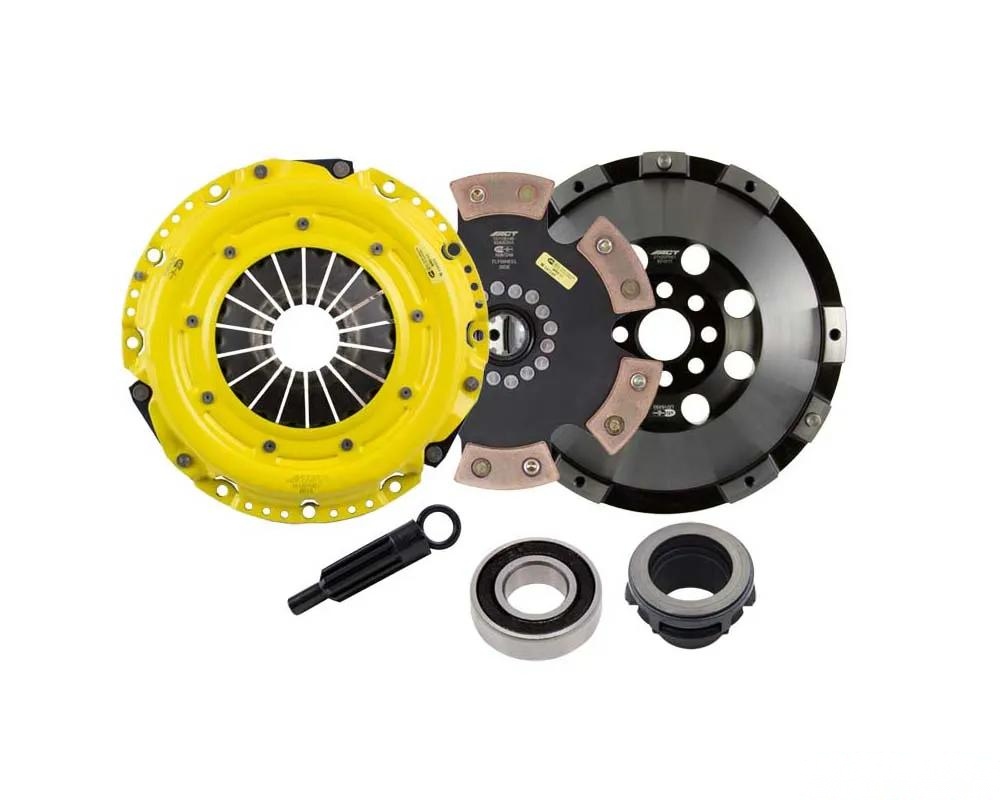

ACT BM12-HDR6 Heavy Duty/Race Rigid 6 Pad Kit

The ACT BM12-HDR6 kit is engineered for serious performance applications, featuring a Heavy Duty pressure plate that stands out in the competitive landscape of aftermarket clutches. This kit employs an exclusive diaphragm design that enhances clamp load while minimizing deflection, ensuring optimal clutch life even under demanding conditions.

Construction and Materials

Each diaphragm undergoes a meticulous four-stage heat-treating process, resulting in exceptional performance and durability. The pressure plates are crafted with precision cover stampings that provide enhanced rigidity and consistency. The included 6-pad rigid race discs utilize high-quality ceramic friction materials, which are known for their ability to withstand high temperatures and deliver reliable performance.

Performance Characteristics

• Light to moderate pedal effort with aggressive engagement for quicker shifts.
• Moderate friction life, extended by the innovative diaphragm design; note that the rigid design may lead to increased spline wear.
• Designed exclusively for race applications, ensuring maximum performance under high RPM conditions.
• All components are 100% clamp load tested and dynamically balanced for reliability.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 10
• Input Shaft Diameter: 1.125 in
• Torque Capacity: 596 ft/lbs
• Weight: 29 lbs
• Includes ACT Streetlite flywheel and necessary bolts for installation.

Installation Notes

This kit is a conversion package that includes the ACT Streetlite flywheel. It is essential to use the included flywheel with this kit. Flywheel bolts (M12-1.5 x 30mm) and pressure plate bolts (M8-1.25 x 20mm) are also included for a complete installation.

Fitment

The ACT BM12-HDR6 is compatible with the following BMW models:

• BMW 318i (1996-1999)
• BMW 318is (1996-1999)
• BMW 318ti (1996-1999)
• BMW 323Ci (2000)
• BMW 323i (1998-2000)
• BMW 323is (1998-1999)
• BMW 325Ci (2001-2003)
• BMW 325i (1992 & 2001-2003)
• BMW 325is (1992)
• BMW 325xi (2001-2003)
• BMW 328Ci (2000)
• BMW 328i (1996-2000)
• BMW 328is (1996-1999)
• BMW 330Ci (2001-2003)
• BMW 330i (2001-2003)
• BMW 330xi (2001-2003)
• BMW 525i (1991-1995 & 2001-2003)
• BMW 528i (1997-2000)
• BMW 530i (2001-2003)
• BMW M3 (1996-1999)
• BMW Z3 (1996-2002)
• BMW Z3 M (1998-2002)
