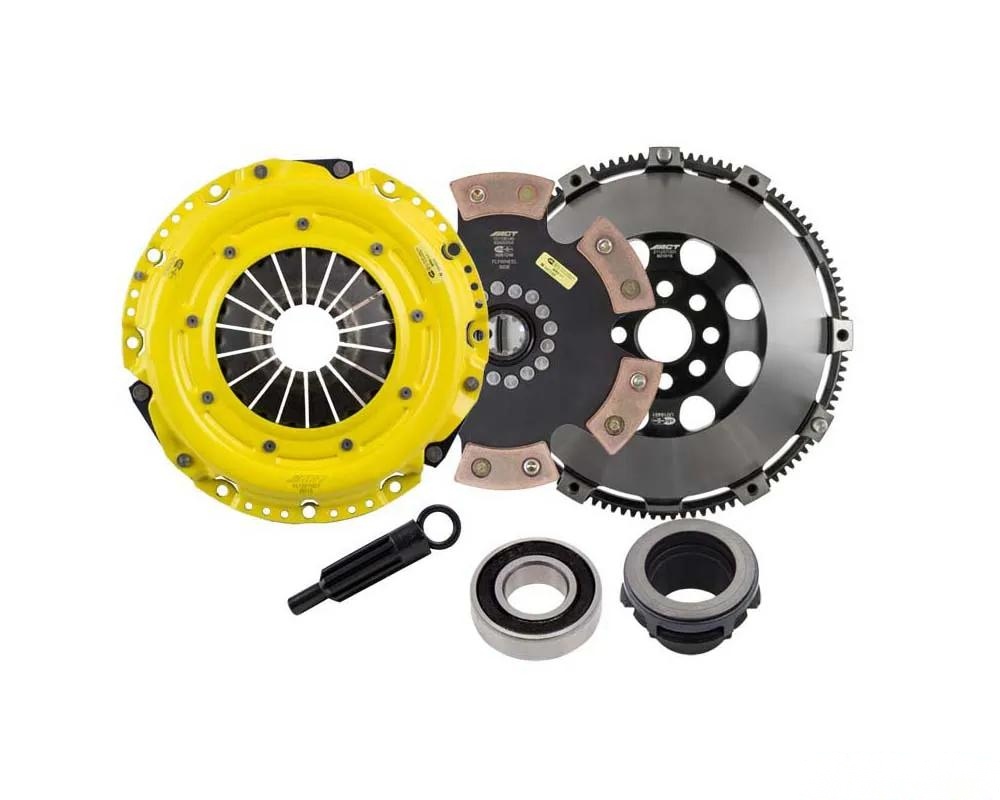

ACT BM13-HDR6 Heavy Duty/Race Rigid 6 Pad Kit

The ACT BM13-HDR6 kit is engineered for serious performance, featuring the renowned Heavy Duty pressure plate designed to handle the demands of high-performance applications. This pressure plate utilizes an exclusive diaphragm design that increases clamp load while minimizing deflection, ensuring maximum clutch longevity even under rigorous conditions.

Key Features

• Heavy Duty pressure plate with precision cover stampings for enhanced rigidity and consistency.
• Four-stage heat-treated diaphragm for superior performance and durability.
• 6-pad rigid race discs made from high-quality ceramic friction materials, providing excellent heat resistance.
• Chrome-moly hub is heat-treated for added strength and longevity.
• Lightweight design allows for quicker shifts, though engagement is more aggressive, resulting in faster shifting times.

Specifications

• Clutch Disc Diameter: 9.4 inches (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 10
• Input Shaft Diameter: 1.125 inches
• Torque Capacity: 596 ft/lbs
• Product Weight: 23.7 lbs
• Flywheel Type: Prolite (included in kit)
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Alignment Tool Included: Yes
• Grease Included: Yes

Installation Notes

The BM13-HDR6 kit includes necessary components such as ACT's Prolite flywheel and bolts for both the flywheel and pressure plate. Ensure to use the included ACT flywheel for optimal performance. For detailed installation instructions, refer to the installation guide.

Compatibility

The ACT BM13-HDR6 is designed for the following BMW models:

• BMW 318i (1996-1999)
• BMW 318is (1996-1999)
• BMW 318ti (1996-1999)
• BMW 323Ci (2000)
• BMW 323i (1998-2000)
• BMW 323is (1998-1999)
• BMW 325Ci (2001-2003)
• BMW 325i (1992 & 2001-2003)
• BMW 325is (1992)
• BMW 325xi (2001-2003)
• BMW 328Ci (2000)
• BMW 328i (1996-2000)
• BMW 328is (1996-1999)
• BMW 330Ci (2001-2003)
• BMW 330i (2001-2003)
• BMW 330xi (2001-2003)
• BMW 525i (1991-1995 & 2001-2003)
• BMW 528i (1997-2000)
• BMW 530i (2001-2003)
• BMW M3 (1996-1999)
• BMW Z3 (1996-2002)
• BMW Z3 M (1998-2002)
