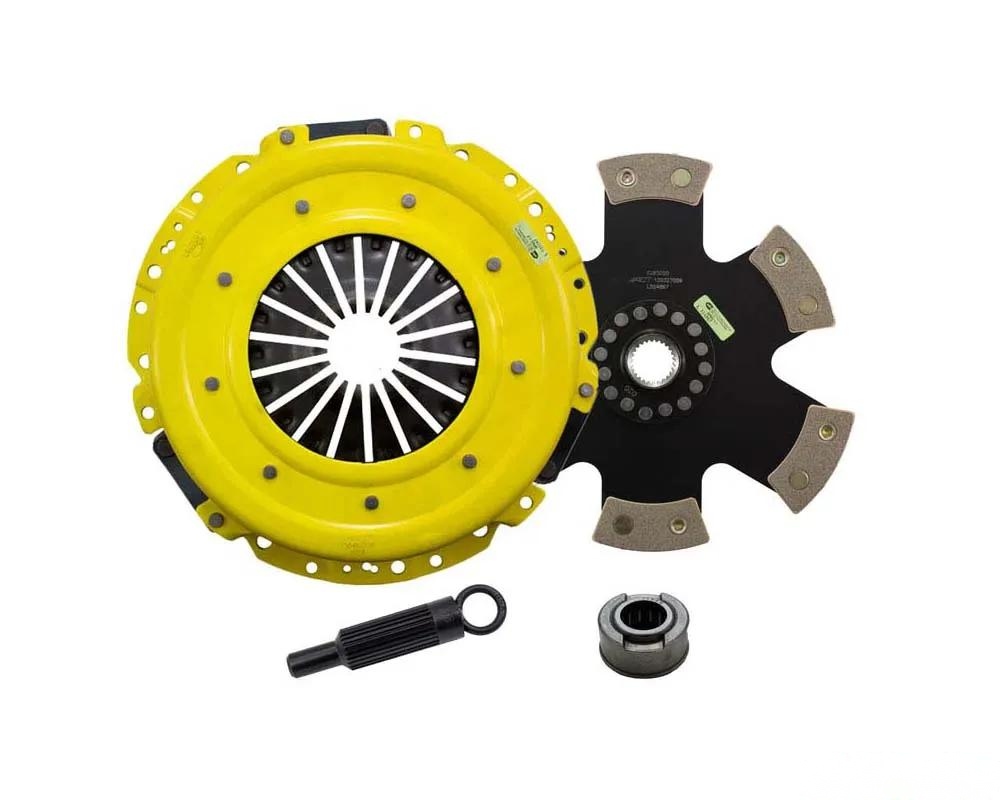

ACT FM5-HDR6 Heavy Duty Clutch Kit

The FM5-HDR6 from ACT is a top-tier Heavy Duty/Race Rigid 6 Pad Kit, designed specifically for performance enthusiasts who demand the best from their vehicles. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design that enhances clamp load, minimizes deflection, and extends the life of your clutch.

Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring exceptional performance under pressure. The precision cover stampings of the pressure plates provide the rigidity and consistency needed for high-performance applications. Customers have noted that the installation was straightforward and the difference in performance was immediately noticeable.

Features & Benefits

• Light to moderate pedal effort paired with aggressive engagement for a thrilling driving experience.
• Moderate friction life, enhanced by ACT's unique diaphragm design, although be mindful that the rigid setup may lead to increased spline wear.
• Constructed with high-quality ceramic friction materials, this kit is engineered for high heat tolerance and maximum performance.
• Designed specifically for race use, making it an ideal choice for serious competitors.
• Every unit is 100% clamp load tested and dynamically balanced, ensuring reliability at high RPMs.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Clutch Disc Diameter: 11 in (280 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 27.5 lbs
• Torque Capacity: 770 ft/lbs
• Torque Capacity Over OE: 0.85

Customer Feedback

"After installing the FM5-HDR6, I noticed a significant improvement in my Mustang's responsiveness. The shifts are quicker, and it feels more connected to the road. Just be ready for a bit of gear rattle!" - Mark T.

"I love how this clutch kit performs on the track. It engages aggressively, but the pedal feel is still manageable. Definitely a solid upgrade for any serious racer." - Jenna R.

Installation Instructions

For detailed installation instructions, please CLICK HERE.
