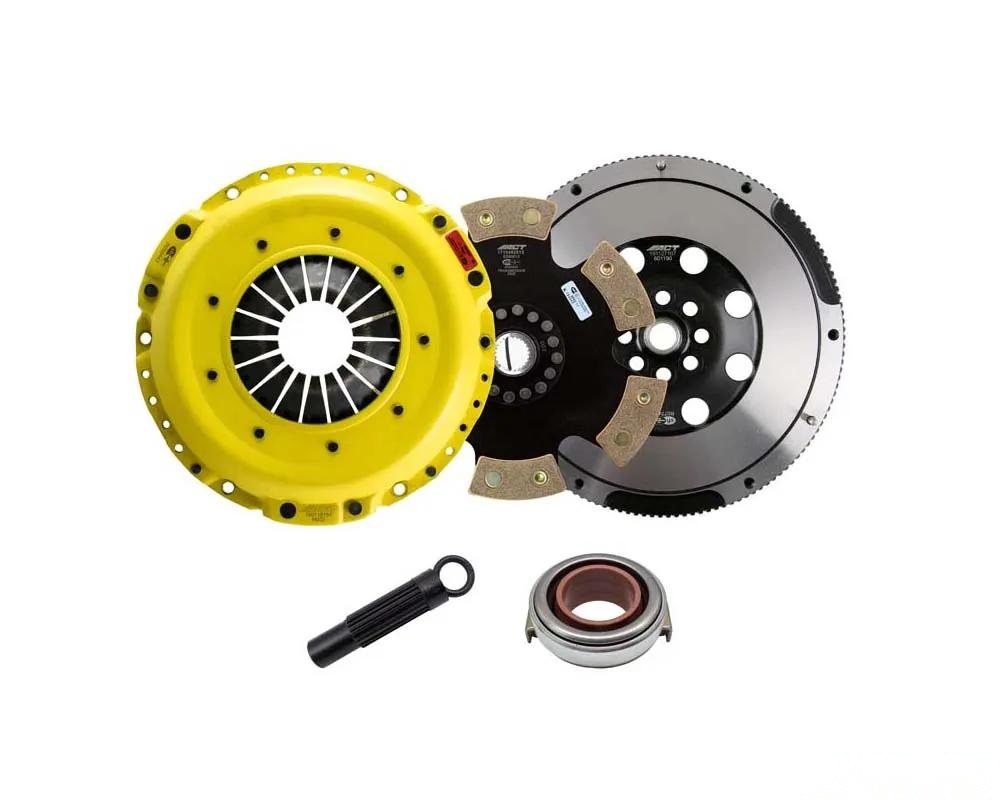

ACT HC10-HDR6 Heavy Duty/Race Rigid 6 Pad Kit

The ACT HC10-HDR6 kit is engineered for performance enthusiasts seeking a robust clutch solution. Featuring ACT's renowned Heavy Duty pressure plate, this kit utilizes an exclusive diaphragm design that enhances clamp load while minimizing deflection, thereby extending clutch life. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring durability and reliability under high-stress conditions.

Key Features

• Light to moderate pedal effort with aggressive engagement for quicker shifts.
• Moderate friction life, optimized by ACT's diaphragm design; note that the rigid setup may increase spline wear.
• Constructed with select ceramic friction materials, providing high heat tolerance and performance.
• Designed exclusively for race applications.
• All components are 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.0325 in
• Pressure Plate Type: Heavy Duty
• Torque Capacity: 464 ft/lbs (1.09 times OE)
• Product Weight: 32.2 lbs

Installation Notes

This kit includes an ACT flywheel, which is mandatory for proper installation. Flywheel bolts (M12-1.0 x 25mm) and pressure plate bolts (M8-1.25 x 16mm) are included. An alignment tool is also provided to assist with the installation process.

Fitment

• Acura Integra 2023-2024
• Honda Accord 2016-2020
• Honda Civic 2016-2024

For detailed installation instructions, you can CLICK HERE.
