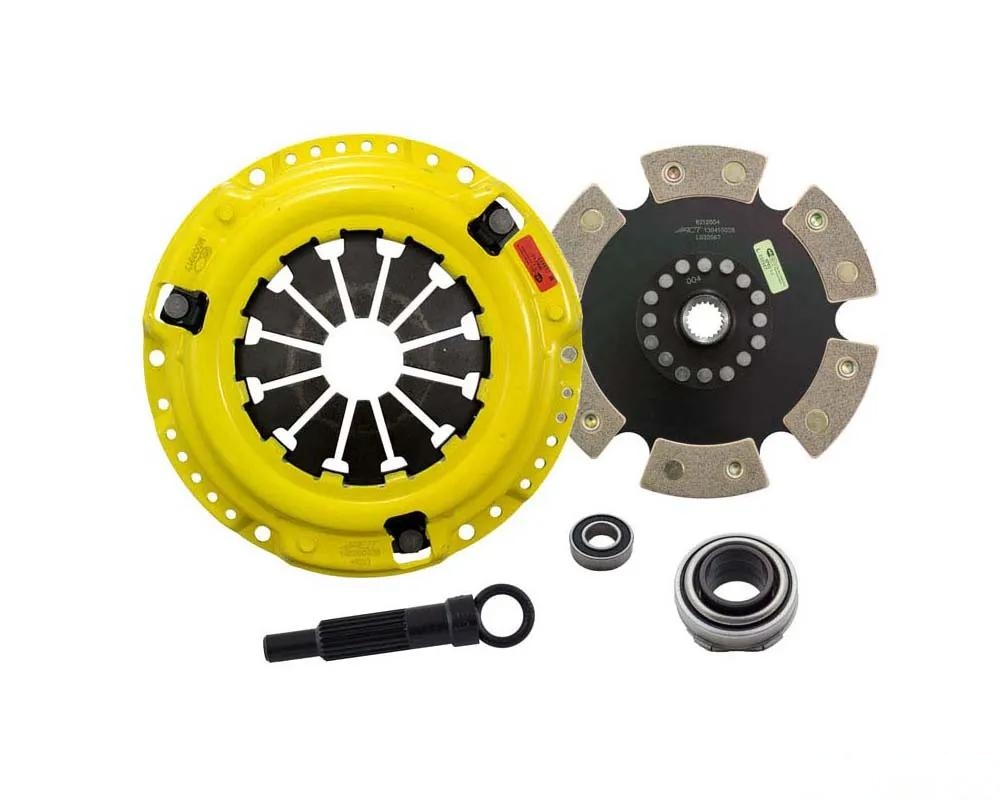

ACT HC4-HDR6 Clutch Kit

Upgrade your vehicle's performance with the ACT HC4-HDR6 Heavy Duty/Race Rigid 6 Pad Kit. This kit features ACT's renowned Heavy Duty pressure plate, designed specifically for those who demand more from their clutch system. With an exclusive diaphragm design, this pressure plate increases clamp load while minimizing deflection, ensuring a longer clutch life and consistent performance.

One of the standout features of the HC4-HDR6 is its four-stage heat-treating process applied to all diaphragms, providing unparalleled durability and reliability. The precision cover stampings enhance rigidity, making this pressure plate a top choice for enthusiasts and racers alike.

The 6-pad rigid race discs are crafted from high-quality ceramic friction materials, which not only offer excellent heat tolerance but also contribute to quicker shifts and smoother operation. The chrome-moly hub is heat-treated, ensuring strength and longevity under extreme conditions. While the engagement may be harsher, customers have noted that the increased responsiveness and speed during gear changes are well worth it.

Customer Feedback

"I installed the HC4-HDR6 in my Civic, and the difference is night and day. The shifts are so much quicker, and I can really feel the power transfer. Just be ready for a stiffer pedal!" - Jake M.

"Perfect for my race setup. The engagement is aggressive, but that's what I wanted. Definitely recommend this for anyone looking to push their car's limits." - Sarah L.

Features and Benefits

• Light to moderate pedal effort with aggressive engagement, leading to increased gear rattle.
• Moderate friction life extended through ACT's innovative diaphragm design, though be mindful of potential spline wear.
• Engineered for precision and balance, utilizing select ceramic materials for high heat tolerance and maximum performance.
• Designed for race applications, ensuring top-tier performance under pressure.
• 100% clamp load tested for reliability at high RPMs, dynamically balanced for smooth operation.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 10.3 lbs
• Torque Capacity: 300 ft/lbs
• Torque Capacity Over OE: 0.96

Fitment

This kit is compatible with:

• Honda Civic (1989-2001)
• Honda CR-X (1989-1991)

Install Instructions

For detailed installation instructions, CLICK HERE.
