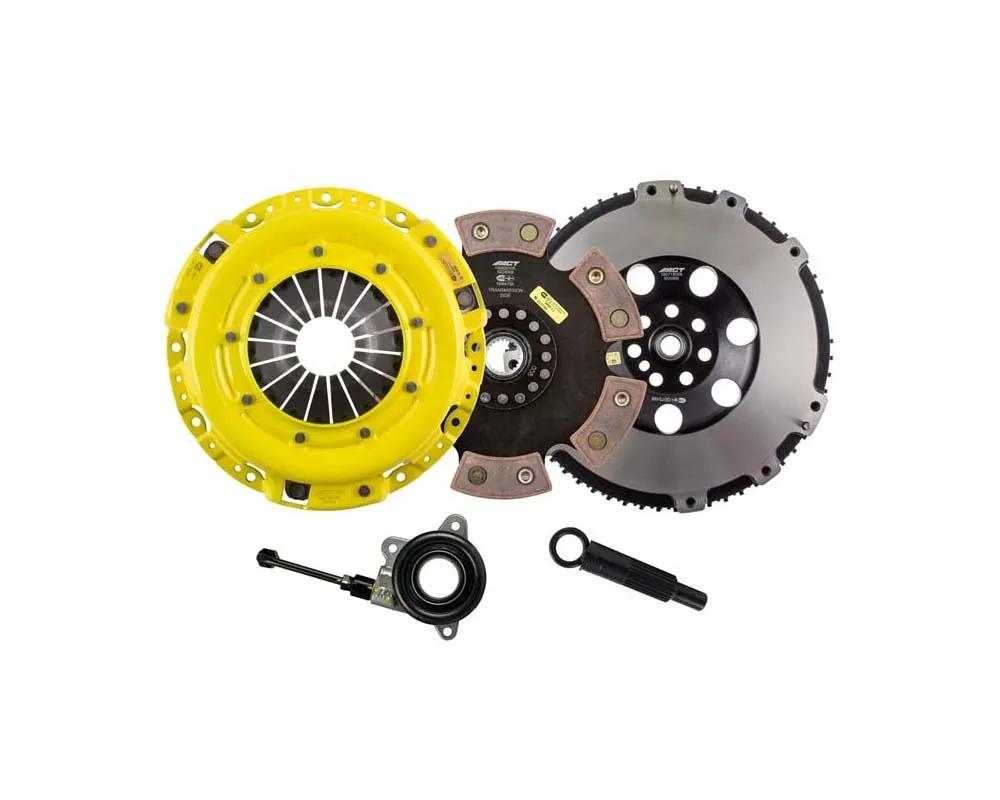

If you're looking to take your Hyundai Genesis Coupe's performance to the next level, the Advanced Clutch HD/Race Rigid 6 Pad Kit HY5-HDR6 is where it's at. This kit packs in ACT's top-notch Heavy Duty pressure plate, which is designed with a unique diaphragm that cranks up the clamp load while keeping deflection in check. If you care about clutch life—and you should—this is a solid choice. Each diaphragm goes through a rigorous four-stage heat-treating process, so you know it’s built to last.

Now, let’s talk about the pressure plate itself. The precision cover stampings give it the rigidity and consistency you need for high-performance driving. And then there’s the 6-pad rigid race disc. Made from high-quality ceramic friction materials, it’s tough as nails. The chrome-moly hub is heat-treated, which means it’s not just strong, but durable too. You’ll notice the lightweight, rigid design allows for quicker shifts, which is a game changer when you’re pushing your car to the limit.

Sure, the engagement is a bit harsher with the 6-pad setup, but that’s the trade-off for faster shifting. This disc is particularly recommended for larger clutch sizes—think of it as your best friend when it comes to heat absorption during those intense drives.

Install Instructions:

• For detailed installation instructions, CLICK HERE

Features:

• Light to moderate pedal effort with aggressive engagement and a bit of gear rattle—just how we like it.
• Moderate friction life, but don’t worry; ACT’s diaphragm design helps extend it, though you might see some increased spline wear.
• Carefully engineered and precisely assembled for performance, using select ceramic materials that handle high heat like a champ.
• Best suited for race use—if you’re serious about your performance, this is your kit.
• Each unit is 100% clamp load tested and dynamically balanced, so you can count on smooth operation even at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.8 in (250 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type Sprung Solid: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Flywheel Type: Streetlite
• Product Weight: 35.8 lbs
• Torque Capacity: 612 ft/lbs
• Torque Capacity Over OE: 0.51

Notes:

• This is a conversion kit, and you must use the ACT flywheel included in the kit.

This kit is specifically designed for the Hyundai Genesis Coupe 2010-2016. If you're serious about your ride, this is a clutch kit that won't let you down.
