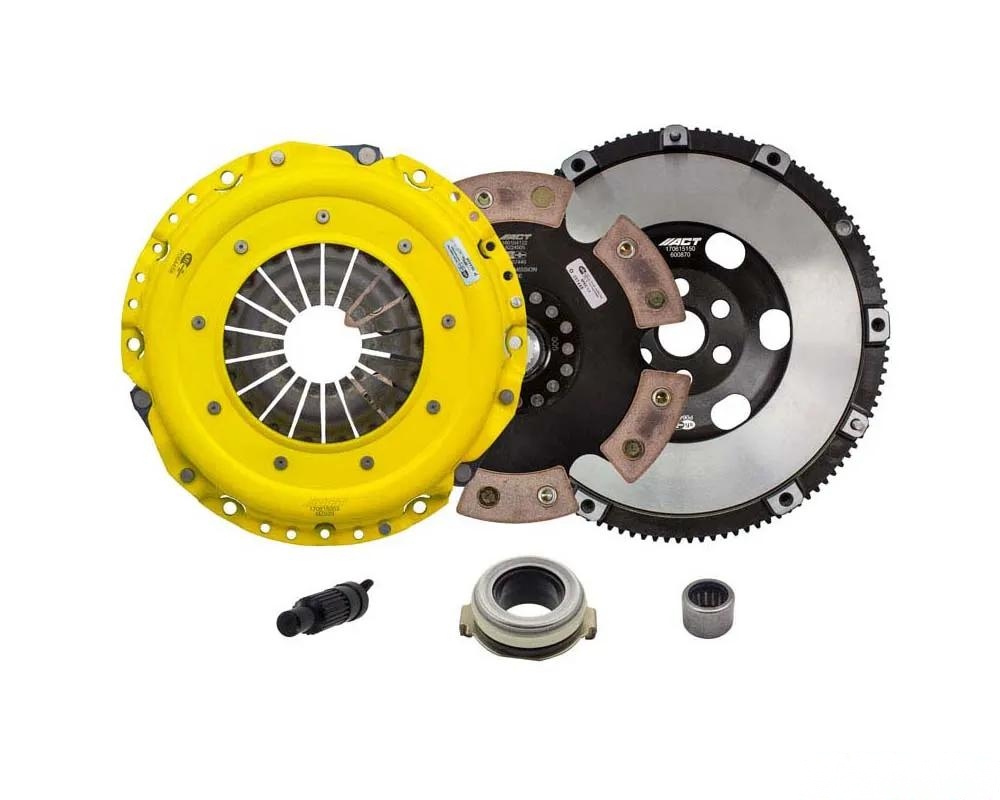

ACT ZM10-HDR6 Heavy Duty/Race Rigid 6 Pad Kit

The ACT ZM10-HDR6 Heavy Duty/Race Rigid 6 Pad Kit is engineered for serious performance applications, featuring ACT's renowned Heavy Duty pressure plate. This component utilizes an exclusive diaphragm design that enhances clamp load, minimizes deflection, and extends clutch longevity. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring exceptional durability and performance under stress.

Key Features

• Light to moderate pedal effort with aggressive engagement, resulting in increased gear rattle.
• Moderate friction life, extended by the innovative diaphragm design; however, be aware that the rigid construction may lead to increased spline wear.
• Constructed with select ceramic friction materials, providing high heat tolerance for maximum performance.
• Designed specifically for race applications, ensuring optimal performance under extreme conditions.
• Each unit is 100% clamp load tested and dynamically computer balanced for reliability at high RPMs.

Specifications

• Clutch Master Cylinder: Not included
• Grease: Included
• Grade Type: Performance
• Flywheel: Included
• Pilot Bushing: Not included
• Pressure Plate Type: Heavy Duty
• Release Bearing: Included
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Alignment Tool: Included
• Disc Type: Solid
• Pressure Plate Bolts: Included
• Clutch Slave Cylinder: Not included
• Flywheel Bolts: Not included
• Pilot Bearing: Included
• Flywheel Type: Streetlite
• Product Weight: 27 lbs
• Torque Capacity: 399 ft/lbs
• Torque Capacity Over OE: 0.87

Installation Notes

• Upgrade to 225mm clutch size; must be used with ACT flywheel (included in kit).
• Pressure plate bolts included (M8-1.25 x 20mm).

Fitment

This kit is confirmed to fit the 2016-2018 Mazda Miata.
