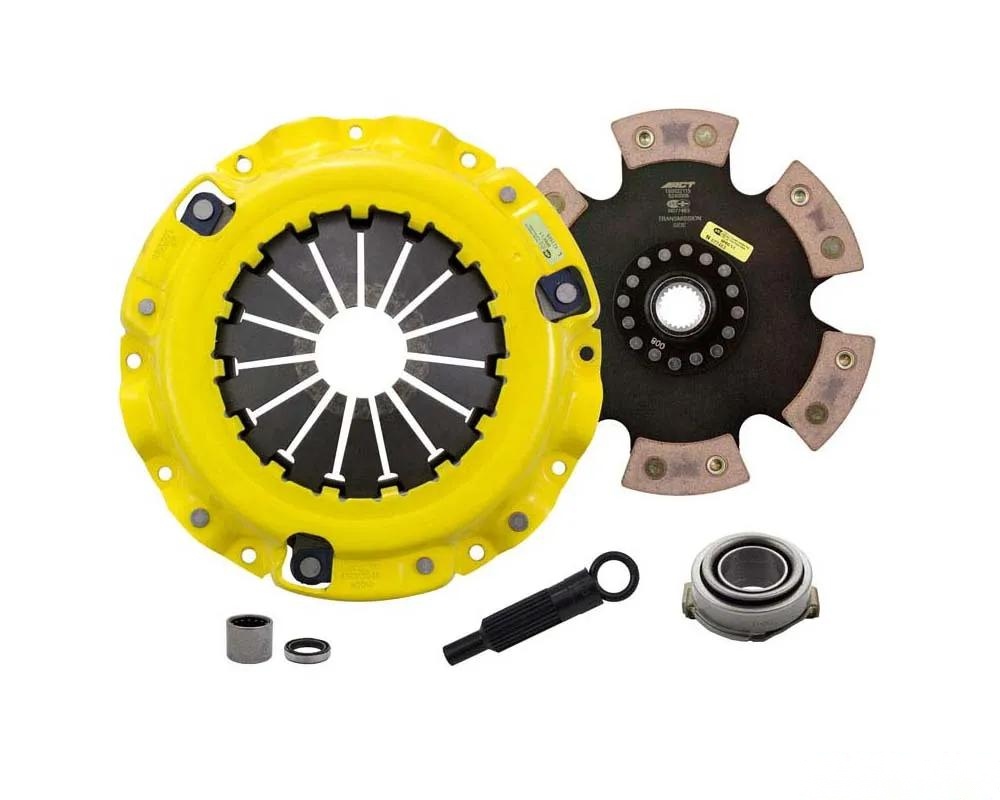

The ACT Z65-HDR6 is a top-tier performance clutch kit designed for serious enthusiasts and racers alike. This kit features ACT's renowned Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to significantly enhance clamp load while minimizing deflection. This innovative approach not only maximizes clutch life but also ensures that you get the most out of your performance vehicle.

One of the standout features of the Z65-HDR6 is its four-stage heat-treating process for the diaphragms, providing unparalleled performance under extreme conditions. The precision cover stampings of the pressure plate contribute to its rigidity and consistency, ensuring a reliable experience every time you hit the track.

The kit also includes a 6-pad rigid race disc made from high-quality ceramic friction materials. This disc is engineered for optimal heat absorption, making it ideal for larger clutch sizes. The chrome-moly hub is heat-treated, enhancing strength and durability, while the lightweight design facilitates quicker shifts and a smoother operation.

While the engagement may be a bit harsher, many users have reported that the quicker shifting makes it well worth it. One satisfied customer noted, "The Z65-HDR6 transformed my RX-7's performance. Shifts are precise, and I can really feel the power transfer." Another reviewer mentioned, "It's definitely more aggressive than stock, but that’s what I was looking for in my racing setup."

Install Instructions:

• For Instructions CLICK HERE

Features:

• Light to moderate pedal effort with aggressive engagement and increased gear rattle.
• Moderate friction life, enhanced by ACT's exclusive diaphragm design, though note that the rigid design may lead to increased spline wear.
• Engineered for performance, using select ceramic friction materials to withstand high heat and deliver maximum output.
• Recommended for race use only, ensuring it meets the demands of high-performance applications.
• 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 14.9 lbs
• Torque Capacity: 420 ft/lbs
• Torque Capacity Over OE: 0.72

Notes:

• Flywheel requires counterweight (not included).

Products Fitment:
Mazda RX-7 1986-1992.
