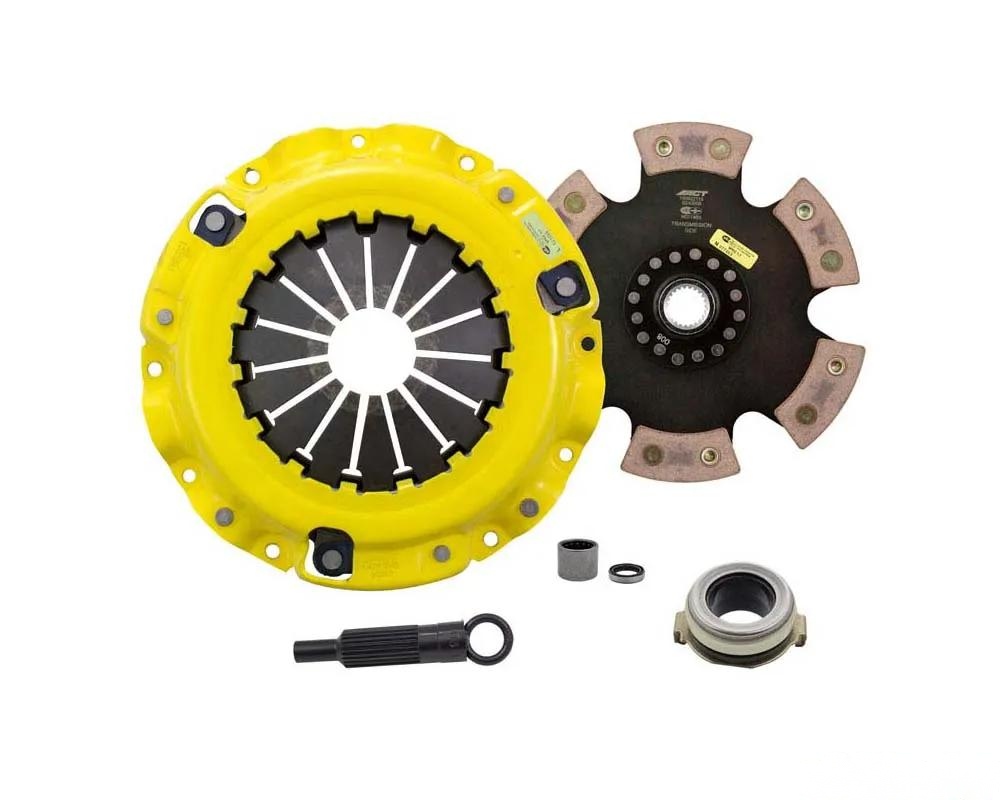

ACT ZM8-HDR6 Heavy Duty/Race Rigid 6 Pad Kit

Upgrade your vehicle's performance with the ACT ZM8-HDR6 Heavy Duty/Race Rigid 6 Pad Kit. This kit is designed to deliver exceptional power and reliability, making it a top choice for enthusiasts and racers alike. Featuring ACT's renowned Heavy Duty pressure plate, this kit uses an exclusive diaphragm design that increases clamp load while minimizing deflection, ensuring maximum clutch life.

Customers rave about the noticeable improvement in shifting speed and overall responsiveness. One user noted, "The difference in how my car shifts is incredible! It feels like a whole new machine." This is thanks to the carefully engineered components that work in harmony to provide a robust performance.

Features & Benefits:

• Light to moderate pedal effort with aggressive engagement for quicker shifts.
• Moderate friction life, enhanced by ACT's unique diaphragm design, although it may lead to increased spline wear.
• Constructed with high-quality ceramic friction materials for superior heat tolerance and performance.
• Recommended for race use, ensuring you get the most out of your vehicle during high-stress situations.
• 100% clamp load tested and dynamically computer balanced for reliable high RPM operation.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 14.6 lbs
• Torque Capacity: 420 ft/lbs
• Torque Capacity Over OE: 0.72

Installation Notes:

For detailed installation instructions, CLICK HERE.

Important Notes:

• Flywheel requires a counterweight (sold separately or with flywheel kit). Use ACT counterweight with ACT flywheel for optimal performance.

Fitment:

This kit is compatible with the Mazda RX-8 from 2004 to 2011.
