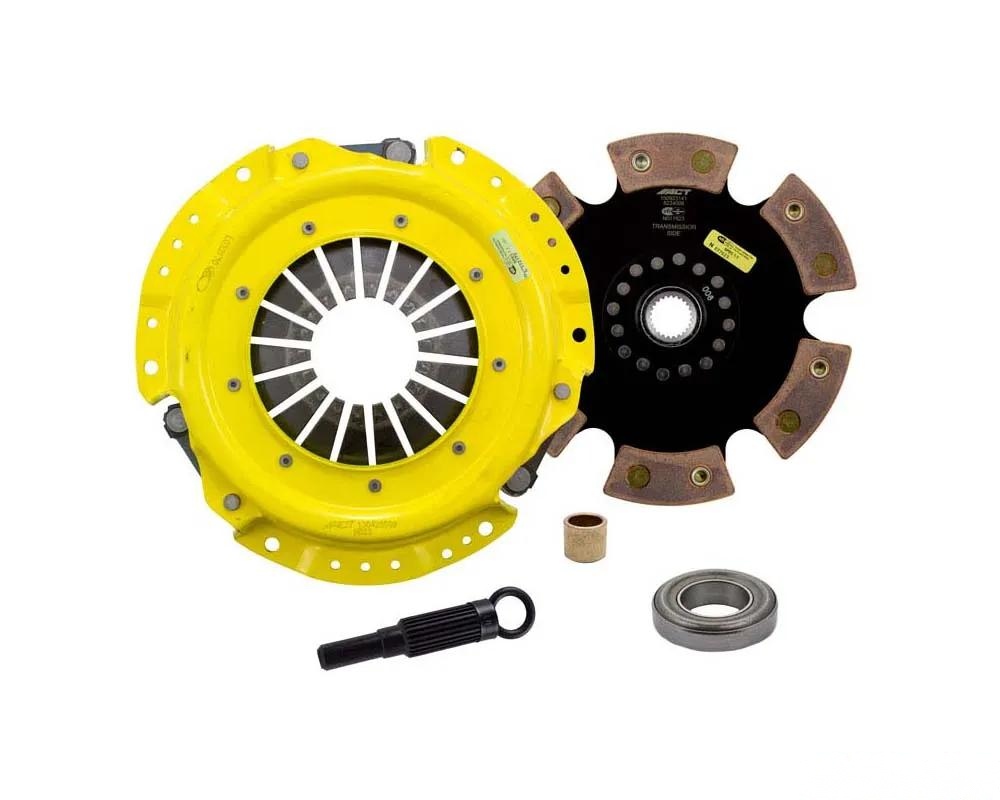

ACT NX1-HDR6 Heavy Duty/Race Rigid 6 Pad Kit

The ACT NX1-HDR6 Heavy Duty/Race Rigid 6 Pad Kit is engineered for serious performance applications, featuring ACT's renowned Heavy Duty pressure plate. This kit is designed for those who demand superior clutch performance under extreme conditions.

Key Features

• Light to moderate pedal effort with aggressive engagement, providing a direct connection to your drivetrain.
• Moderate friction life, enhanced by ACT's exclusive diaphragm design, though be aware that the rigid setup may increase spline wear.
• Constructed with select ceramic friction materials, ensuring high heat tolerance and peak performance.
• Recommended for race applications only, where rapid shifts and durability are paramount.
• Each component is 100% clamp load tested and dynamically computer balanced for reliable high RPM performance.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Product Weight: 13.6 lbs
• Torque Capacity: 350 ft/lbs
• Torque Capacity Over OE: 0.97

Installation Notes

For detailed installation instructions, CLICK HERE.

Confirmed Fitment

• Nissan 240SX S13 (1989-1990)
• Nissan 240SX S14 (1995-1998)
• Nissan 280Z (1975-1978)
• Nissan 280ZX (1979-1983)
• Nissan 620 (1975-1979)
• Nissan 720 (1985-1986)
• Nissan Axxess (1990)
• Nissan Maxima (1982-1984)
