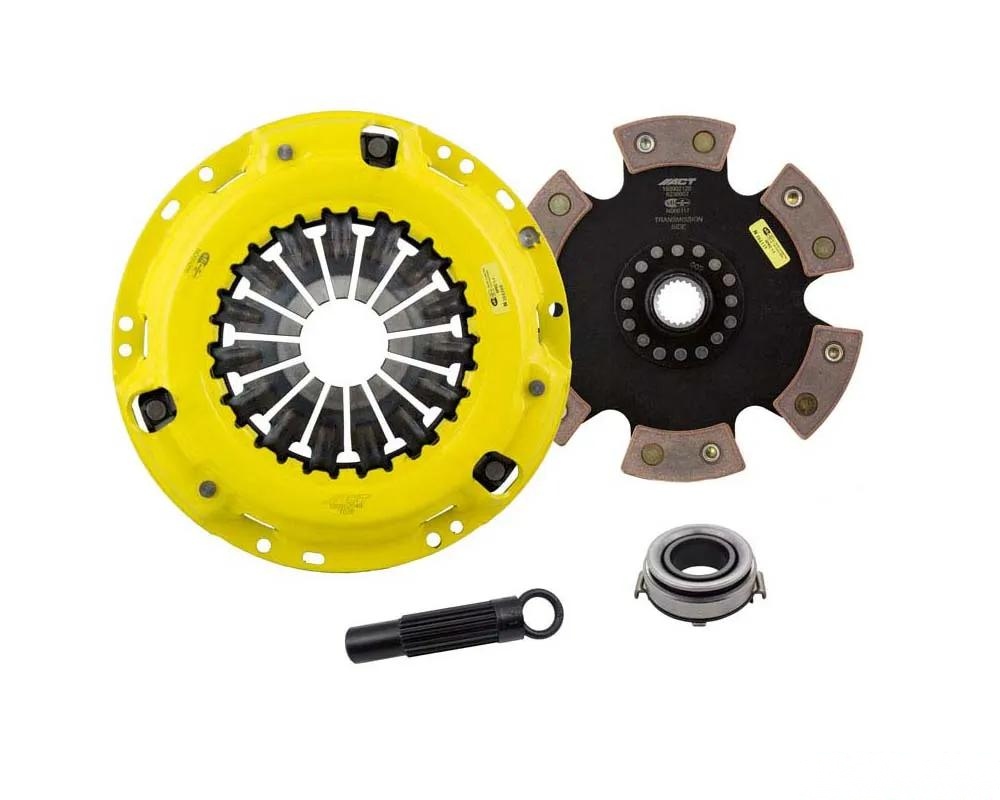

ACT TC7-HDR6 Heavy Duty Clutch Kit

Introducing the ACT TC7-HDR6 Heavy Duty Clutch Kit, a top choice for enthusiasts looking to enhance their vehicle's performance. This kit features ACT's renowned Heavy Duty pressure plate, designed with an exclusive diaphragm that significantly increases clamp load while minimizing deflection. This means you can expect improved clutch longevity and reliability, even under demanding conditions.

One of the standout features of the TC7-HDR6 is its four-stage heat-treating process applied to all diaphragms, which ensures exceptional performance and durability. The precision cover stampings of the pressure plates provide not only strength but also consistent performance, making it a reliable choice for both daily driving and racing applications.

The kit includes a 6-pad rigid race disc made from high-quality ceramic friction materials. This disc is engineered for those who demand quick shifts and a more aggressive engagement, perfect for racing scenarios. While the engagement may be harsher, the benefits include faster shifting and improved overall responsiveness.

Customers have reported noticeable improvements in their driving experience after installing the TC7-HDR6. One user mentioned, ?The engagement is definitely more aggressive, but I love how quickly I can shift now. It?s like my car has a new life!? Another noted, ?I?ve noticed a significant increase in torque capacity, which has made a huge difference during my track days.?

Features:

• Light to moderate pedal effort with aggressive engagement and increased gear rattle.
• Moderate friction life, enhanced by ACT's exclusive diaphragm design.
• Carefully engineered for high heat tolerance and maximum performance.
• Recommended for race use only.
• 100% clamp load tested and dynamically balanced for high RPM reliability.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Product Weight: 14 lbs
• Torque Capacity: 400 ft/lbs
• Torque Capacity Over OE: 0.65

Fitment:

This kit is compatible with the following models:

• Scion tC 2005-2010
• Scion xB 2008-2015
• Toyota Corolla 2009-2013
• Toyota Matrix 2009-2014

Installation Instructions:

For detailed installation instructions, CLICK HERE.
