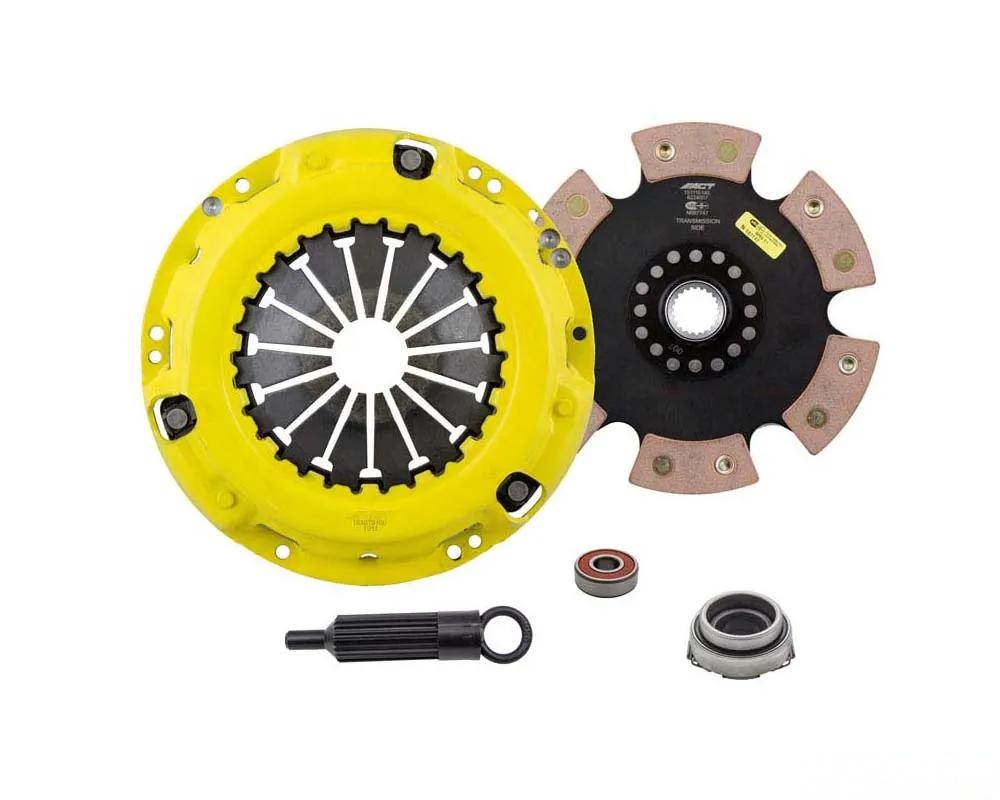

ACT TV1-HDR6 Heavy Duty/Race Rigid 6 Pad Kit

Introducing the ACT TV1-HDR6, a top-tier choice for serious racers and performance enthusiasts. This kit features ACT's renowned Heavy Duty pressure plate, designed with an exclusive diaphragm that enhances clamp load while minimizing deflection, ensuring maximum clutch longevity. Each diaphragm undergoes a meticulous four-stage heat-treating process, delivering exceptional performance and reliability.

With precision cover stampings, the pressure plates offer impressive rigidity and consistency. The 6-pad rigid race discs are crafted from high-quality ceramic friction materials, providing the durability and heat resistance needed for high-performance applications. The chrome-moly hub is heat-treated, ensuring strength and longevity, while the lightweight design facilitates quicker shifts and smooth operation.

Many users have noted that the engagement can be a bit harsher, but the trade-off is significantly faster shifting, which is crucial during competitive racing. A customer shared, "The TV1-HDR6 transformed my racing experience. The shifts are so crisp, and I can feel the power transfer instantly!" This kit is particularly recommended for larger clutch sizes, as it effectively absorbs more heat, making it a reliable choice for those pushing their vehicles to the limit.

Install Instructions:

• For detailed installation instructions, CLICK HERE

Features:

• Light to moderate pedal effort with aggressive engagement and increased gear rattle.
• Moderate friction life extended by ACT's exclusive diaphragm design, although the rigid setup may increase spline wear.
• Engineered for precision, using select ceramic friction materials to withstand high temperatures and maximize performance.
• Designed strictly for race use.
• 100% clamp load tested and dynamically balanced for reliable high RPM performance.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 13.9 lbs
• Torque Capacity: 355 ft/lbs
• Torque Capacity Over OE: 0.89

Product Fitment:

This kit is confirmed to fit the Toyota Van 1989.
