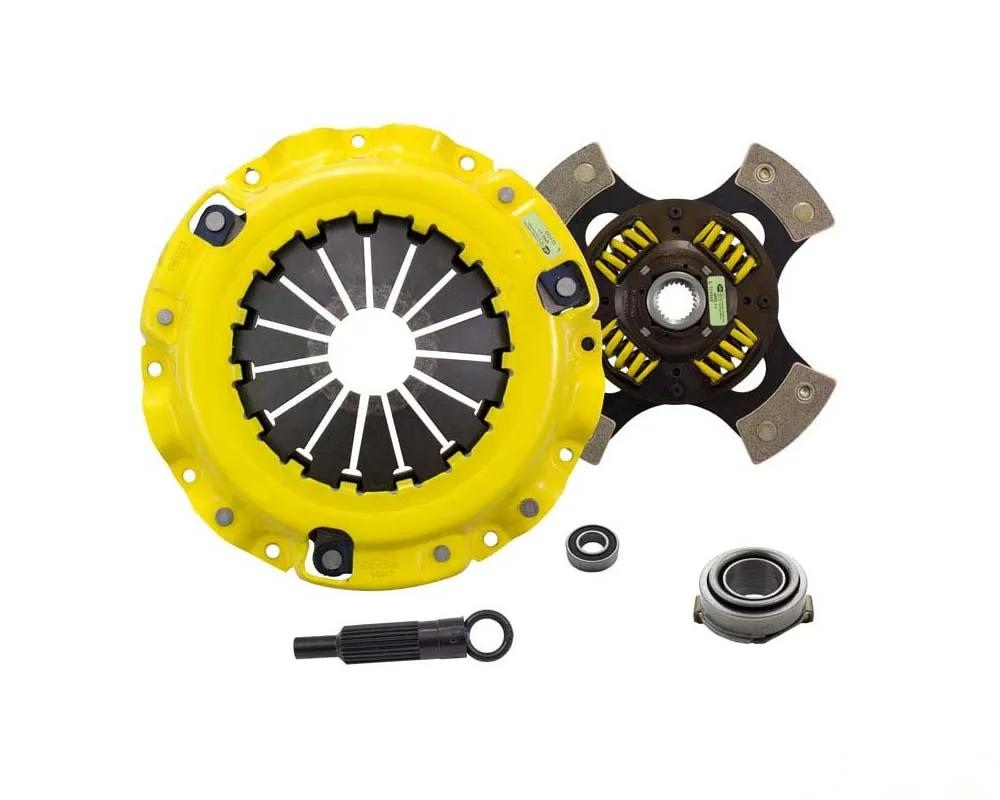

ACT ZT2-HDG4 Heavy Duty Clutch Kit

The ACT ZT2-HDG4 Heavy Duty/Race Sprung 4 Pad Kit is engineered for performance enthusiasts seeking a robust solution for high horsepower applications. This kit features ACT's renowned Heavy Duty pressure plate, designed with an exclusive diaphragm configuration that enhances clamp load while minimizing deflection. Such a design not only maximizes clutch longevity but also ensures reliable engagement under demanding conditions.

Key Features

• Light to moderate pedal effort with aggressive engagement, leading to quick shifts.
• Moderate friction life, extended through ACT's unique diaphragm design.
• Precision-engineered assembly ensures balanced performance, utilizing select ceramic friction materials for superior heat resistance.
• Ideal for high horsepower street and race applications.
• Each component is 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Torque Capacity: 420 ft/lbs
• Torque Capacity Over OE: 0.72
• Product Weight: 15.7 lbs
• Grease Included: Yes
• Alignment Tool Included: Yes
• Pilot Bearing Included: Yes
• Release Bearing Included: Yes

Installation Notes

For detailed installation instructions, refer to the installation guide.

Fitment

This clutch kit is compatible with the following:

• Mazda B-Series (1987-1988)

The ACT ZT2-HDG4 is a solid choice for those looking to enhance their vehicle's clutch performance while maintaining durability and reliability under high-stress conditions.
