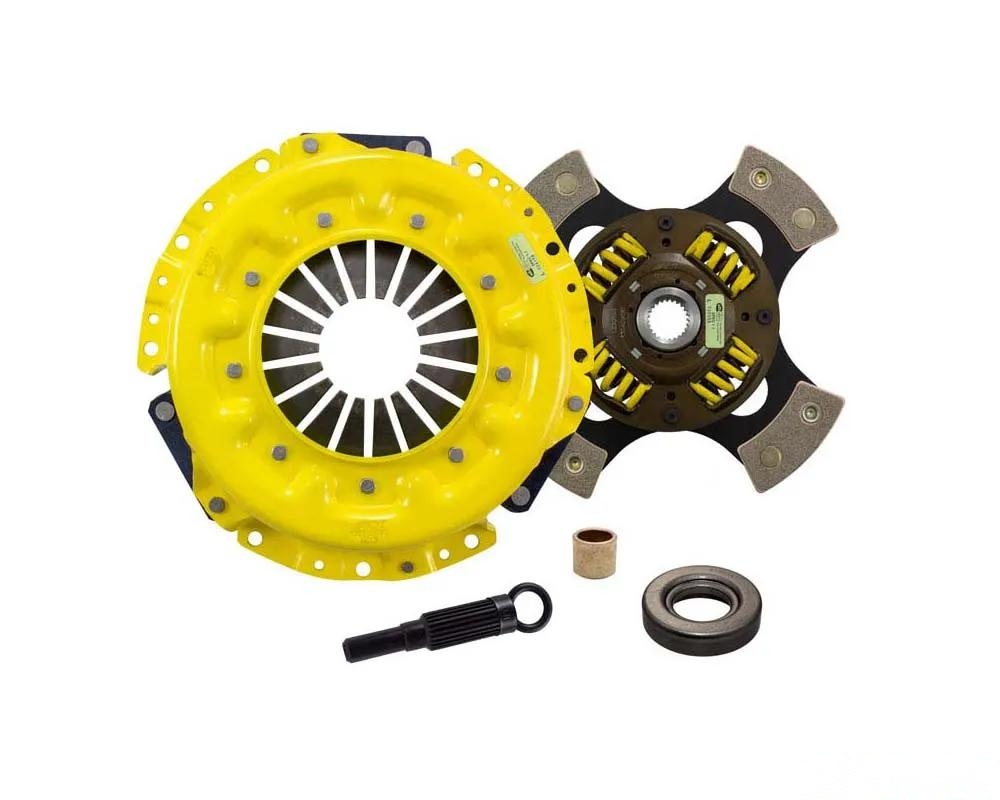

ACT NX6-HDG4 Heavy Duty/Race Sprung 4 Pad Kit

The ACT NX6-HDG4 Heavy Duty/Race Sprung 4 Pad Kit is specifically engineered for performance-driven applications, delivering enhanced durability and responsiveness. This kit features ACT's renowned Heavy Duty pressure plate, designed using an exclusive diaphragm mechanism that increases clamp load, minimizes deflection, and extends clutch lifespan. Each diaphragm undergoes a rigorous four-stage heat treatment, ensuring optimal performance under demanding conditions.

Construction and Design

ACT pressure plates are crafted with precision cover stampings that enhance rigidity and consistency. The 4-pad spring-centered race disc is engineered to effectively dampen torsional vibrations, resulting in quieter operation while maintaining reliability even in extreme environments. The spring retainers utilize wraparound spring windows and thicker stampings, which provide enhanced support and reduce stress concentrations, ultimately increasing strength and reliability.

Performance Characteristics

• Light to moderate pedal effort with aggressive engagement, producing an OE to mild gear rattle.
• Moderate friction life, extended thanks to ACT's exclusive diaphragm design.
• Constructed with select ceramic friction materials, ensuring high heat tolerance and maximum performance.
• Ideal for high horsepower street or race applications.
• Every unit is 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Product Weight: 18.6 lbs
• Torque Capacity: 525 ft/lbs
• Torque Capacity Over OE: 0.86

Install Instructions

For detailed installation instructions, CLICK HERE.

Fitment

This kit is confirmed to fit the Nissan 300ZX models from 1990 to 1996.
