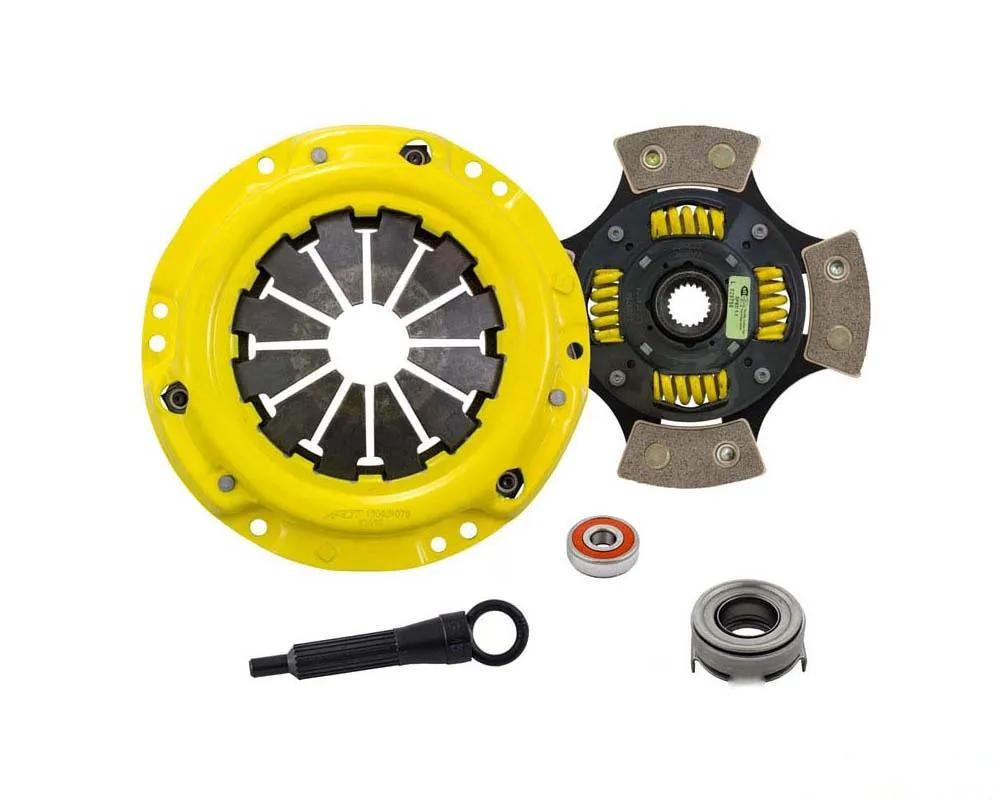

ACT SZ3-HDG4 Heavy Duty/Race Sprung 4 Pad Kit

The ACT SZ3-HDG4 Heavy Duty/Race Sprung 4 Pad Kit is engineered for serious performance applications, particularly suited for the Suzuki Samurai from 1986 to 1995. This kit incorporates ACT's renowned Heavy Duty pressure plate, designed with an exclusive diaphragm configuration that enhances clamp load while minimizing deflection. This results in improved clutch life and reliability under demanding conditions.

Key Features

• Light to moderate pedal effort with aggressive engagement, producing OE to mild gear rattle.
• Moderate friction life, optimized by ACT's unique diaphragm design.
• Precision-engineered using select ceramic friction materials, ensuring high heat tolerance and maximum performance.
• Ideal for high horsepower street or race applications.
• Each unit is 100% clamp load tested and dynamically balanced, ensuring smooth operation at high RPMs.

Specifications

• Clutch Disc Diameter: 7.5 in (190 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Disc Type: Sprung
• Torque Capacity: 225 ft/lbs (0.88 over OE)
• Product Weight: 9.2 lbs

Installation Notes

For detailed installation guidance, refer to the installation instructions here.

This kit does not include a clutch master cylinder, pilot bushing, pressure plate bolts, clutch slave cylinder, or flywheel bolts, but it does come with grease and an alignment tool for easier installation. Ensure compatibility with your vehicle before purchase.
