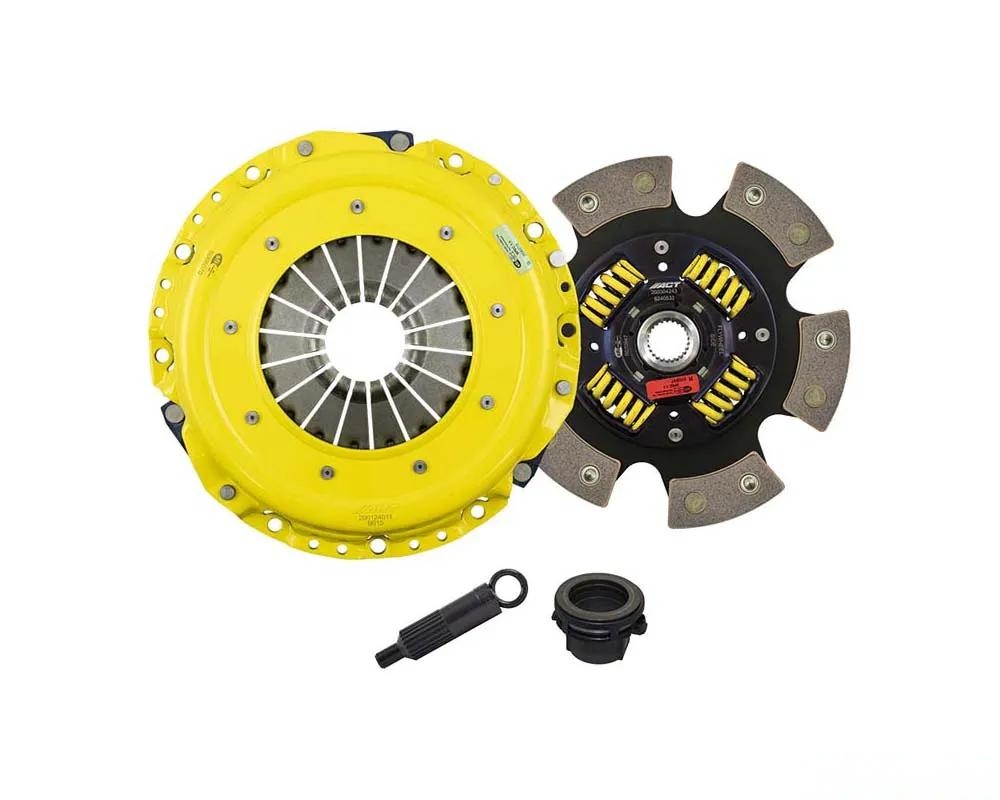

Let?s talk about the ACT HD/Race Sprung 6 Pad BM16-HDG6 clutch kit. If you?re serious about performance, this is the kind of gear you want under your ride. It features ACT?s Heavy Duty pressure plate, which is basically a game-changer. The exclusive diaphragm design ramps up the clamp load, cuts down on deflection, and helps the clutch last longer. You?ll appreciate the four-stage heat-treating process that all diaphragms go through?it really makes a difference in performance when you?re pushing your car to the limits.

Now, this isn?t just any clutch. The 6-pad, spring-centered race disc is designed to handle some serious torque. It?s got a spring center that dampens torsional vibrations, so you won?t have to worry about it failing on you when the going gets tough. Plus, the wraparound spring windows and beefier retainer stampings on the ACT spring retainers mean you?re looking at increased strength and reliability. Sure, engagement is a bit harsher, but that just means you get faster shifts. If you?re running a larger clutch size, this disc is perfect for absorbing extra heat, keeping everything cool under pressure.

Install Instructions:

• For Instructions CLICK HERE

Features:

• Light to moderate pedal effort, a bit aggressive on engagement, but that's what you want for performance.
• Moderate friction life?thanks to ACT's clever diaphragm design, you get a bit more mileage out of it.
• Engineered with precision and balanced accurately, using select ceramic friction materials that can handle high heat without breaking a sweat.
• Perfect for high horsepower builds, whether you?re hitting the street or the track.
• Every unit is 100% clamp load tested and dynamically balanced for reliability at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: No
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 22
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: Yes
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No
• Product Weight: 15.2 lbs
• Torque Capacity: 596 ft/lbs
• Torque Capacity Over OE: 0.94

Notes:

• Make sure to pair it with an ACT flywheel (not included). And yes, pressure plate bolts are included (M8-1.25 x 20mm).

Products Fitment:

• BMW 330Ci 2004-2006
• BMW 330i 2004-2005
• BMW 330xi 2004-2005
• BMW 530i 2004-2005
• BMW X3 2004-2006
