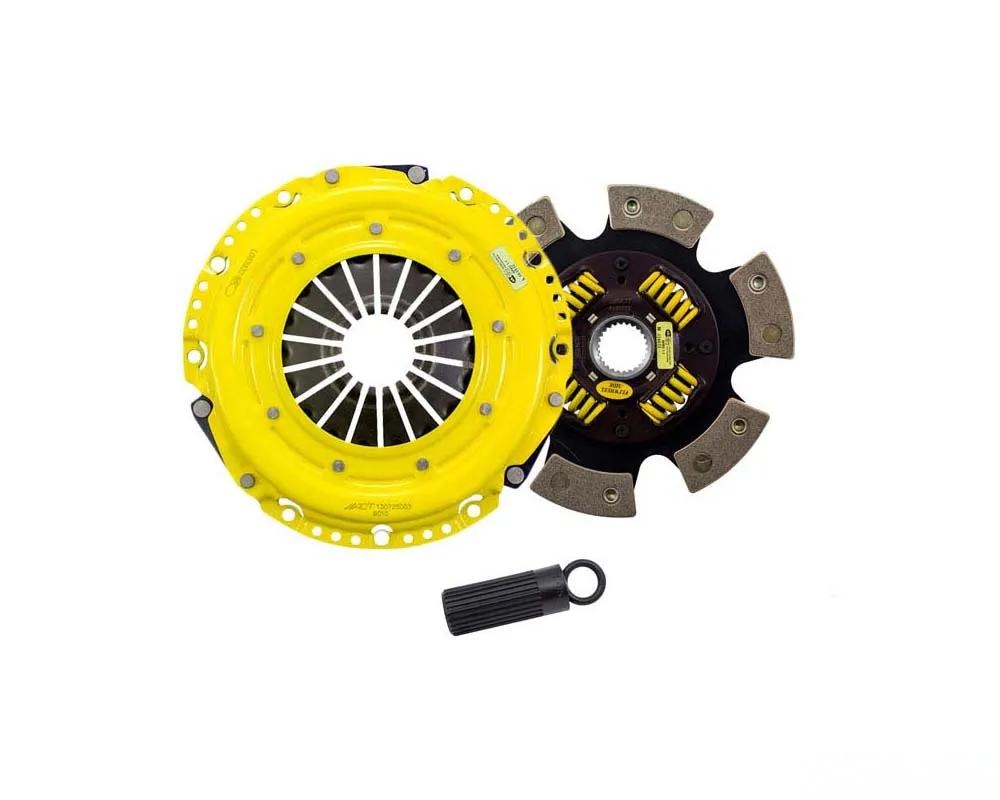

ACT HD/Race Sprung 6 Pad Kit - BM14-HDG6

The ACT BM14-HDG6 Heavy Duty/Race Sprung 6 Pad Kit is engineered for those who demand performance and reliability from their clutch system. This kit features ACT's renowned Heavy Duty pressure plate, designed with an exclusive diaphragm that enhances clamp load while minimizing deflection. This design choice extends the lifespan of the clutch, making it ideal for both street and track applications.

Key Features

• Light to moderate pedal effort with aggressive engagement, suitable for high-performance driving.
• Moderate friction life, bolstered by ACT's unique diaphragm architecture.
• Constructed from select ceramic friction materials, ensuring high heat tolerance and optimal performance.
• Tested for 100% clamp load and dynamically balanced for reliable high RPM operation.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.375 in
• Torque Capacity: 596 ft/lbs
• Weight: 16.4 lbs
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Alignment Tool Included: Yes
• Pressure Plate Bolts Included: Yes (M8-1.25 x 20mm)

Installation Notes

This kit must be paired with an ACT flywheel (not included). Ensure to use the included pressure plate bolts for installation.

Vehicle Fitment

• BMW 135i (2008-2013)
• BMW 335i (2007-2015)
• BMW 335is (2011-2013)
• BMW 335xi (2007-2008)
• BMW 435i (2014-2016)
• BMW 535i (2008-2014)
• BMW 535xi (2008)
• BMW Z4 (2009-2016)

For installation instructions, click here.
