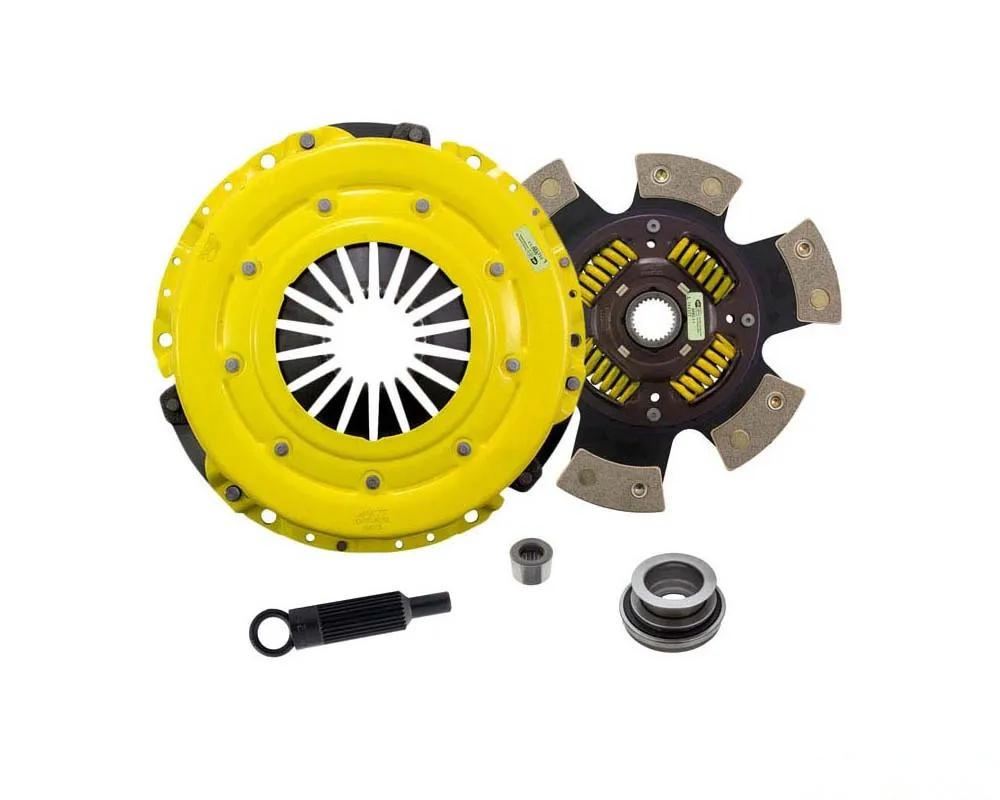

ACT GM7-HDG6 Heavy Duty/Race Sprung 6 Pad Kit

The ACT GM7-HDG6 is engineered for those who demand exceptional performance from their clutch system. This Heavy Duty/Race Sprung 6 Pad Kit is built around ACT's most popular Heavy Duty pressure plate, which incorporates a unique diaphragm design that enhances clamp load, minimizes deflection, and maximizes clutch longevity. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring reliability under extreme conditions.

Key Features

• Light to moderate pedal effort with aggressive engagement, suitable for both street and race applications.
• Moderate friction life, optimized by ACT's exclusive diaphragm design.
• Constructed with select ceramic friction materials for high heat tolerance and peak performance.
• Tested for 100% clamp load and dynamically balanced for smooth operation at high RPMs.

Disc and Pressure Plate Specifications

• Clutch Disc Diameter: 10.5 in (266 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.125 in
• Torque Capacity: 805 ft/lbs
• Torque Capacity Over OE: 0.69
• Weight: 22 lbs

Installation Notes

• Grease Included: Yes
• Alignment Tool Included: Yes
• Pilot Bearing Included: Yes
• Release Bearing Included: Yes

Fitment

The ACT GM7-HDG6 is compatible with the following vehicles:

• Chevrolet Camaro (1982-1992)
• Chevrolet Corvette (1972)
• Pontiac Catalina (1971-1972)
• Pontiac Firebird (1970-1992)
• Pontiac GTO (1971-1972)

For detailed installation instructions, CLICK HERE.
